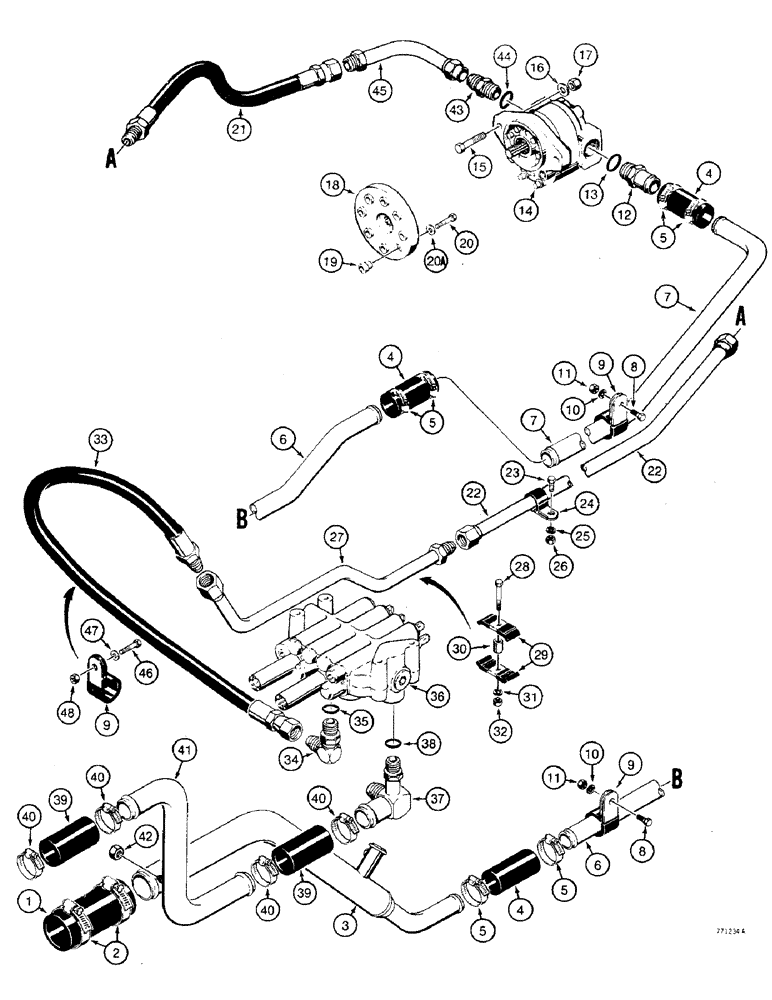

Запчасти Case 475 (196) - EQUIP.HYD.CIRCUIT,USED ON TRAC.SN3065401&AFTER OR ON MODELS W/WELDED ENG.SUPPORT FOR ID PG. 276 #25A (35) - HYDRAULIC SYSTEMS

1

R24841

HOSE ASSY.

HOSE - 2" (51 MM) ID x 6-1/2" (165 MM) long

1шт.

2

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, , screw type #36, 1.81/2.75 Type F Worm

2шт.

3

R24254

MANIFOLD

TUBE - to hydraulic reservoir

1шт.

4

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

3шт.

5

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

HOSE CLAMP, , screw type #24, 1.06/2.00 Type F Worm

6шт.

6

R25559

TUBE

SPARE PART TUBE - hydraulic

1шт.

7

R39061

TUBE

TUBE - hydraulic

1шт.

8

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 5/8", G5, Full Thd

2шт.

9

D40471

CLAMP

CLAMP - tube

2-3шт.

10

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8" - 16 NC, if used

2шт.

12

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

BARB FITTING - straight, Incl. Ref. 13

1шт.

13

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

O-RING - barb fitting

1шт.

14

R24624

PUMP

PUMP - hydraulic, equipment, parts list figure 198

1шт.

RR24624

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

RC24624

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

15

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

BOLT - hex head, 1/2" - 13 NC x 2-1/4"

2шт.

16

195-33

WASHER,1/2"

WASHER - flat, 1/2"

2шт.

17

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

18

R25557

HUB CAP

HUB - splined, pump to engine, Includes: Ref. 19

1шт.

19

G36905

BLOCK

BUSHING - hub

8шт.

20

113-2611

PREV TORQUE BOLT,Locking, 7/16"-14 x 1 1/2", G5

BOLT - hex head, 7/16" - 14 NC x 1-1/2", plated

8шт.

20a

195-29

WASHER,7/16"

WASHER - flat, 7/16"

8шт.

21

D55295

HOSE ASSY.

HOSE - 17" (432 MM) long

1шт.

22

R39315

TUBE,1" OD x 35.6, 4.82" L

SPARE PART TUBE - pump to valve

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

24

R14668

CLAMP

CLAMP - tube

1шт.

25

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

26

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8" - 16 NC

1шт.

27

R24277

TUBE

TUBE -, Serial Range: pump-valve

1шт.

28

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

1шт.

29

D40236

CLAMP

CLAMP - tube

2шт.

30

R29848

BUSHING

SPACER - clamp

1шт.

31

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

32

25-106

NUT,3/8"-16, G5

NUT - hex, 3/8" - 16 NC

1шт.

33

73085

HOSE

HOSE - 36" (914 MM) long

1шт.

34

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW, , adjustable, Incl. Ref. 35 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - elbow

1шт.

36

R31182

VALVE

VALVE - 4 spool, parts list figure 234

1шт.

37

R24275

ELBOW UNION

Union Elbow TEE - special, Includes: Ref. 38

1шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING - tee

1шт.

39

D47536

LARGE HOSE

SPARE PART HOSE - 1-1/2" (38 MM) ID x 4" (102 MM) long

2шт.

40

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, , screw type #28, 1.31/2.25 Type F Worm

4шт.

41

R31409

TUBE

TUBE - valve to hydraulic tank

1шт.

42

218-755

CAP,37 Degree, 3/4"-16

CAP, , R31409 tube only 37º, 3/4"-16

1шт.

43

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, Incl. Ref. 44

1шт.

44

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O-RING - adapter

1шт.

45

R39317

SPARE PART TUBE - at pump

1шт.

46

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

47

195-25

WASHER,3/8"

WASHER - flat, 3/8"

1шт.

48

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.
