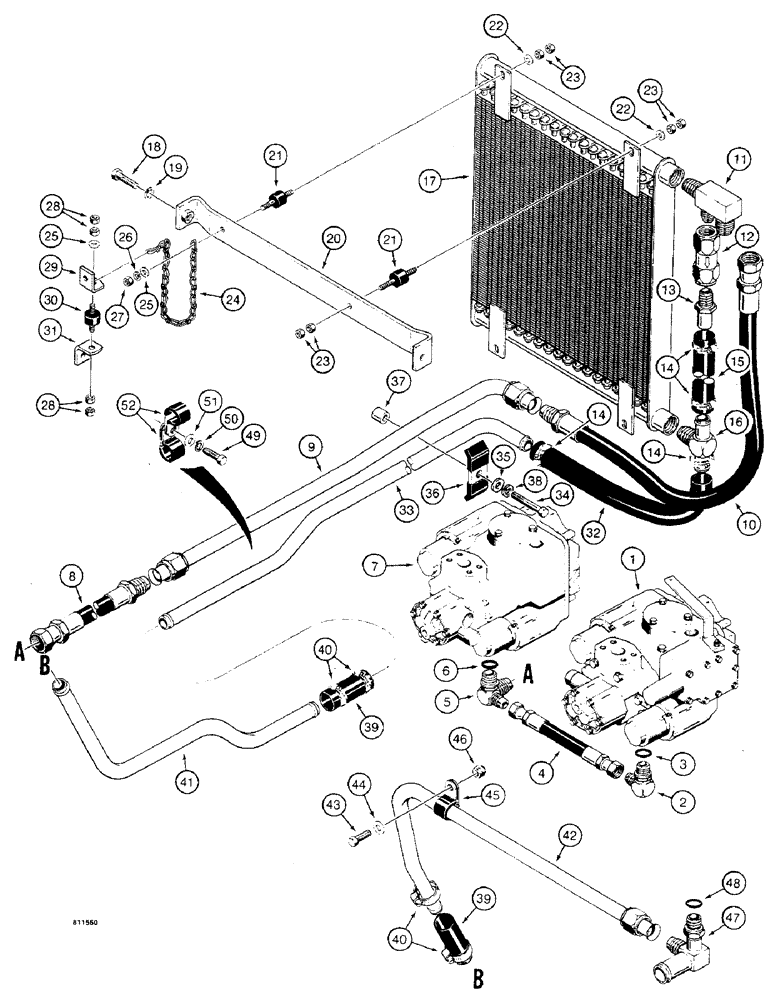

Запчасти Case 475 (142) - OIL COOLER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

R24324

PUMP

ASSEMBLY - hydrostatic, vibrator drive, parts list figure 212

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

4

R24246

HOSE ASSY.

HOSE - between pumps, 9" (229 MM) long

1шт.

5

R24262

ELBOW UNION

TEE - special, adjustable, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

7

R25520

PUMP

ASSEMBLY - hydrostatic, transmission drive, parts list figure 116

1шт.

8

R24285

HOSE ASSY.

HOSE - from pump, 24-3/16" (615 MM) long

1шт.

9

R24283

TUBE - to oil cooler

1шт.

10

R27701

HOSE ASSY.

HOSE - to oil cooler, 38" (965 MM) long

1шт.

11

R24280

MANIFOLD

- oil cooler

1шт.

12

R24281

LOCK VALVE

BYPASS VALVE - oil cooler

1шт.

13

R14353

CONNECTOR, ELEC

STEM FITTING - hose, at oil cooler

1шт.

14

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose adjustable

4шт.

15

D29446

HOSE ASSY.

HOSE - at oil cooler, 1" (25 MM) x 14-1/2" (368 MM) long

1шт.

16

R24282

TEE - bottom of oil cooler

1шт.

17

R24467

COOLER ASSY.

OIL COOLER - hydraulic, hydrostatic pumps

1шт.

18

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

R25574

BRACKET

- oil cooler

2шт.

21

L11236

BOLT

BOLT - two-way, rubber

4шт.

22

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

23

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex, jam, 5/16" - 18 NC

14шт.

24

35393

AXLE-SHAFT, ARTICULA

CHAIN - 12 gauge, 16" (406 MM) long

1шт.

25

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

26

92-5

LOCK WASHER,5/16"

1шт.

27

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

28

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex, jam, 5/16" - 18 NC

4шт.

29

R24752

ANGLE BAR

BRACKET - radiator mounting, upper

1шт.

30

L11236

BOLT

BOLT - two-way, rubber

1шт.

31

R24753

ANGLE BAR

BRACKET - radiator mounting, lower

1шт.

32

D21237

LARGE HOSE

HOSE - from oil cooler, 1" (25 MM) ID x 22" (559 MM) long

1шт.

33

R24286

TUBE - from oil cooler

1шт.

34

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

35

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

36

D40236

CLAMP

- tube

1шт.

37

D36524

BUSHING

SPACER - clamp

1шт.

38

92-6

LOCK WASHER,3/8"

1шт.

39

R12351

LARGE HOSE

HOSE - to hydraulic reservoir, 1" (25 MM) x 4" (102 MM) long

2шт.

40

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, adjustable

4шт.

41

R24287

TUBE - to hydraulic reservoir

1шт.

42

R31506

TUBE - to hydraulic reservoir

1шт.

43

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

44

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

45

R14668

CLAMP

- tube

1шт.

46

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

47

R24275

ELBOW UNION

TEE - special, at hydraulic reservoir, Includes: Ref. 48

1шт.

48

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

49

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

50

92-6

LOCK WASHER,3/8"

1шт.

51

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

52

R14668

CLAMP

- tube

2шт.
