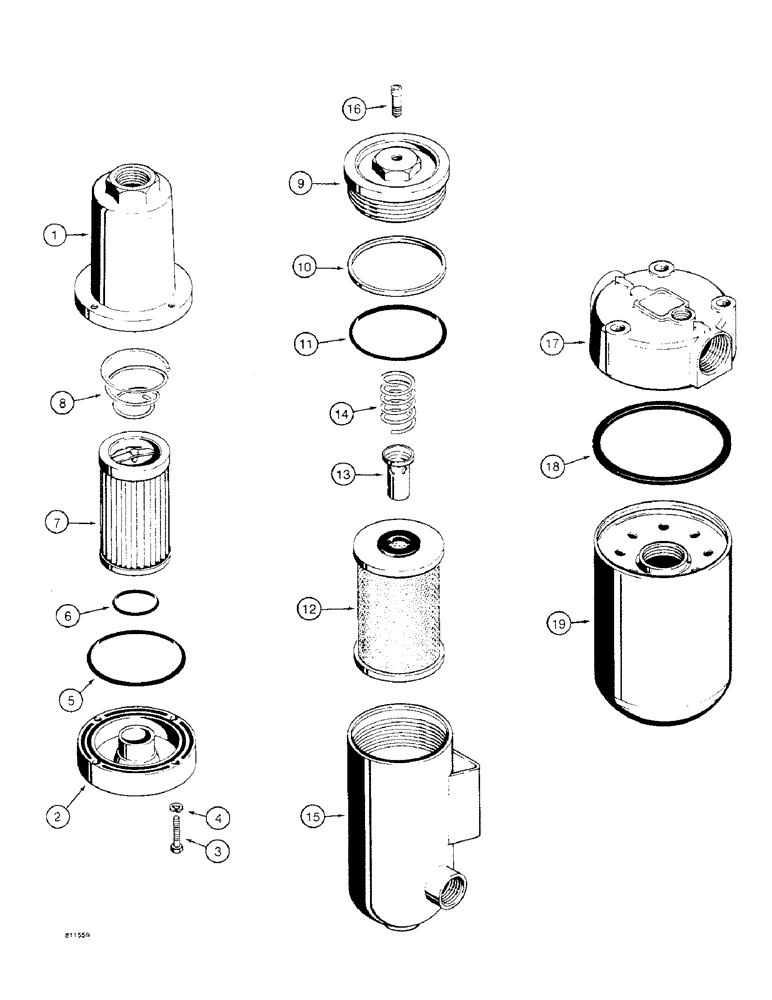

Запчасти Case 475 (140) - OIL FILTERS (35) - HYDRAULIC SYSTEMS

D35144

FILTER

FILTER ASSEMBLY - suction, charging pump, D35144 suction filter, Includes: Refs. 1-8

1шт.

1

D37033

HOUSING

- filter, D35144 suction

1шт.

2

D37034

HEAD

- filter, D35144 suction

1шт.

3

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5, D35144 suction filter

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , D35144 Suction filter 1/4"

4шт.

5

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

- housing, D35144 suction filter

1шт.

6

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- element, D35144 suction filter

1шт.

7

D37035

FILTER, ELEMENT

ELEMENT - filter, D35144 suction

1шт.

8

D37036

SPRING

- element, D35144 suction filter

1шт.

G102704

FILTER, ENGINE OIL

FILTER ASSEMBLY - transmission oil, pressure line, replaces G102080 filter, G102704, Includes: Refs. 9-16

1шт.

9

A60765

CAP

- filter, G102704 transmission oil

1шт.

G102111

HYDRAULIC OIL FILTER

ELEMENT KIT - filter, G102704 transmission oil, Includes: Refs. 10-12

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- O-Ring, G102704 Transmission oil

1шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- filter cap, G102704 transmission oil

1шт.

12

NSS

NOT SOLD SEPARAT

ELEMENT - filter, G102704 transmission oil

1шт.

13

D37207

VALVE

BYPASS VALVE - filter, G102704 transmission oil

1шт.

14

D31212

SPRING

- bypass valve, G102704 transmission oil

1шт.

15

D46130

HOUSING

BODY - filter, G102704 transmission oil

1шт.

16

221-849

PLUG,Hex Soc, 1/8"-27

- Allen head, 1/8" NPT, if used, G102704 transmission oil

1шт.

R25511

FILTER CARTRIDGE

FILTER ASSEMBLY - oil, hydrostatic pumps, R25511, Includes: Refs. 17-1-9

2шт.

17

NSS

NOT SOLD SEPARAT

HEAD - filter , R25511 oil - hydrostatic pumps

1шт.

R25844

FILTER

ELEMENT ASSEMBLY - filter , R25511 oil - hydrostatic pumps, Includes: Refs. 18, 19

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - square , R25511 oil filter - hydrostatic pumps

1шт.

19

NSS

NOT SOLD SEPARAT

ELEMENT - filter , R25511 oil - hydrostatic pumps

1шт.
