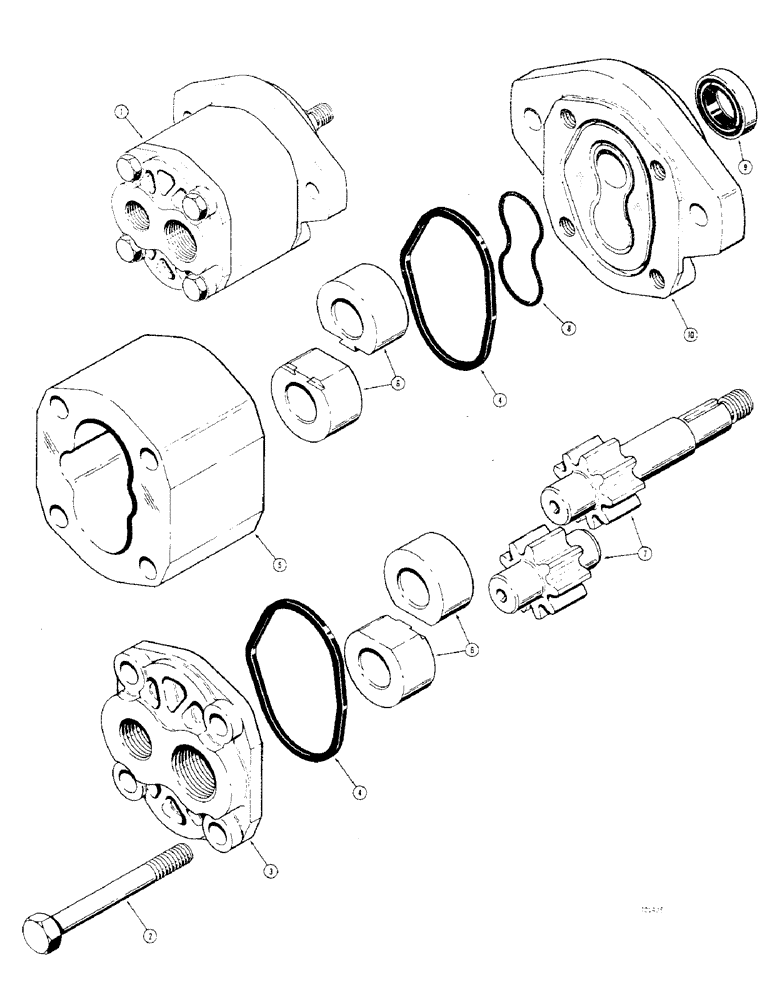

Запчасти Case 475 (138) - R25696 TRANSMISSION CHARGING PUMP (35) - HYDRAULIC SYSTEMS

1

R25696

PUMP

ASSEMBLY - transmission charging, Includes: Refs. 2-10

1шт.

2

13-654

BOLT,Hex, 3/8" - 16 x 3-3/8", Gr 5

- hex head, 3/8" - 16 NC x 3-3/8"

4шт.

3

A72006

COVER

- port end

1шт.

4

D53279

SEAL

- square type

2шт.

5

R29852

BODY - pump

1шт.

6

A35956

BEARING

- gear

4шт.

7

R29860

GEAR WHEEL

GEAR SET - matched

1шт.

8

D53280

SEAL

O-RING - cover, shaft end

1шт.

9

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

OIL SEAL - shaft

1шт.

10

A72007

COVER

- shaft end

1шт.
