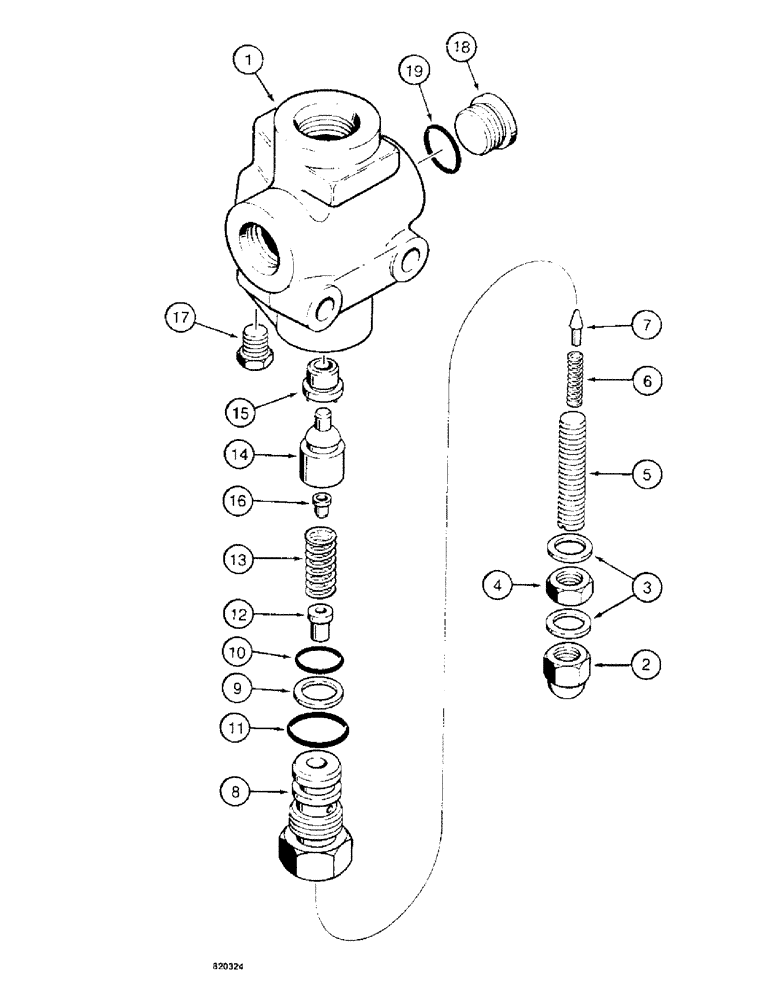

Запчасти Case 475 (136) - R24273 RELIEF VALVE (35) - HYDRAULIC SYSTEMS

R24273

LOCK VALVE

RELIEF VALVE ASSEMBLY - transmission clutches, Includes: Refs. 1-19

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.

2

129-514

CROWN NUT,Low, 5/16" - 24

DOME NUT - adjusting screw

1шт.

3

D26270

WASHER, SEALING

WASHER - special

2шт.

4

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16" - 24 NF

1шт.

5

R30257

ADJUSTING SCREW - relief valve

1шт.

6

R30256

VALVE SPRING

SPRING - pilot

1шт.

7

R30254

PLUNGER - relief valve

1шт.

8

R30253

BODY - relief valve

1шт.

9

L30443

BACK-UP RING,0.547" ID x 0.049" Width

BACKUP RING - small O-ring

1шт.

10

L30444

O-RING,0.521" ID x 0.661" OD

- small

1шт.

12

D26266

SEAT

- plunger

1шт.

13

R30252

SPRING

- poppet

1шт.

14

R30251

POPPET - relief valve

1шт.

15

D37063

SEAT

- poppet

1шт.

16

R30255

SLEEVE - plunger seat

1шт.

17

221-1661

PLUG

- hex head, 1/8" NPT

2шт.

18

86625138

PLUG,7/18" - 14

(5/8"), Includes Ref. 19 Hex Soc, 7/8"-14 ORB

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- large

1шт.
