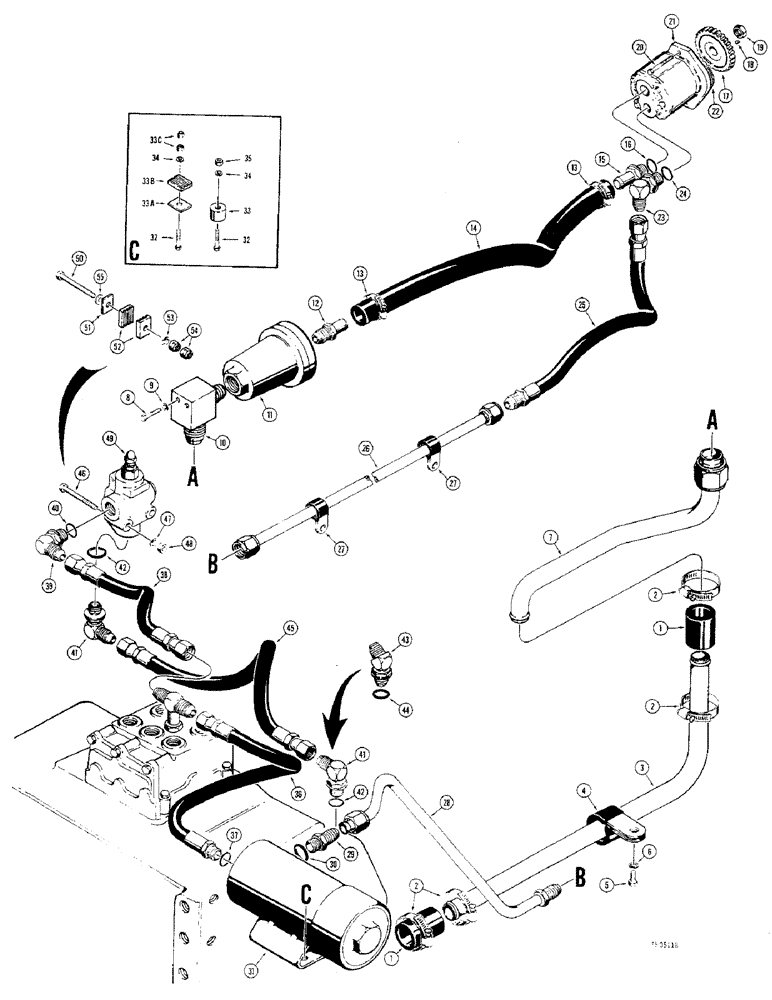

Запчасти Case 475 (132) - CRAWLER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- from transmission 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

2

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

3

R24267

TUBE - from transmission

1шт.

4

D40471

CLAMP

- tube

1шт.

5

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

R24268

PIPE,1.25" OD

TUBE - to suction filter

1шт.

8

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

R24266

MOUNT - suction filter, with ports

1шт.

11

D35144

FILTER

FILTER - suction, charging pump, parts list figure 140

1шт.

12

217-156

FITTING,1" Hose Barb x 1" Male NPTF

STEM FITTING - suction filter

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, adjustable

2шт.

14

R29835

HOSE

- to charging pump, 1" (25 MM) ID x 23-1/2" (597 MM) long

1шт.

15

217-390

FITTING,1" Hose Barb x 1-1/16" - 12 Male ORB

STEM FITTING - hose, to charging pump, Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- stem fitting

1шт.

17

L43703

GEAR

- pump drive

1шт.

18

L43842

KEY

WOODRUFF KEY - gear retaining

1шт.

19

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex, self-locking, 1/2" - 20 NF

1шт.

20

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

21

R25696

PUMP

ASSEMBLY - transmission charging, parts list figure 138

1шт.

22

A58617

GASKET

- pump

1шт.

23

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

25

37318

HOSE ASSY.

HOSE - from charging pump, 16-1/2" (419 MM) long

1шт.

26

R24270

TUBE

- from charging pump

1шт.

27

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- tube, uses hardware for equipment pump hydraulic lines

2шт.

28

R24842

TUBE

- at transmission filter

1шт.

29

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male, Includes: Ref. 30

1шт.

31

REF

INSTRUCTION

FILTER ASSEMBLY - transmission oil, parts list figure 140

1шт.

32

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

33

B18083

BUSHING

SPACER - filter mounting, if used

4шт.

33a

R32824

SPACER

- filter mounting, if used

4шт.

33b

R32823

MOUNTING PARTS

INSULATOR - mounting, rubber, if used

12шт.

33c

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, jam, 3/8" - 16 NC, if used

8шт.

34

92-6

LOCK WASHER,3/8"

if used 3/8"

4шт.

35

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, if used

4шт.

36

D45617

HOSE

- transmission filter to control valve, 17" (432 MM) long, Includes: Ref. 37

1шт.

38

D25170

HOSE

- control valve to relief valve, 11-3/4" (298 MM) long

1шт.

39

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 40

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

41

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 42

1-2шт.

42

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

43

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Adj., if used, Incl. Ref 44 45º, 7/8"-14 x 1 1/16"-12, O-Ring

1шт.

44

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

45

R15843

HOSE ASSY.

HOSE - relief valve to transmission sump, 17" (432 MM) long

1шт.

46

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

Used without rubber insulator, if used Hex, 5/16"-18 x 2 1/2", G5

2шт.

47

92-5

LOCK WASHER,5/16"

if used 5/16"

2шт.

48

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, if used

2шт.

49

R24273

LOCK VALVE

RELIEF VALVE - transmission clutches, parts list figure 136

1шт.

50

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2", Used with rubber insulator, if used

2шт.

51

R32824

SPACER

- relief valve, if used

2шт.

52

R32823

MOUNTING PARTS

INSULATOR - rubber, if used

6шт.

53

92-5

LOCK WASHER,5/16"

if used 5/16"

2шт.

54

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex, jam, 5/16" - 18 NC, if used

4шт.

55

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", if used

2шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- connector

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- hose

1шт.
