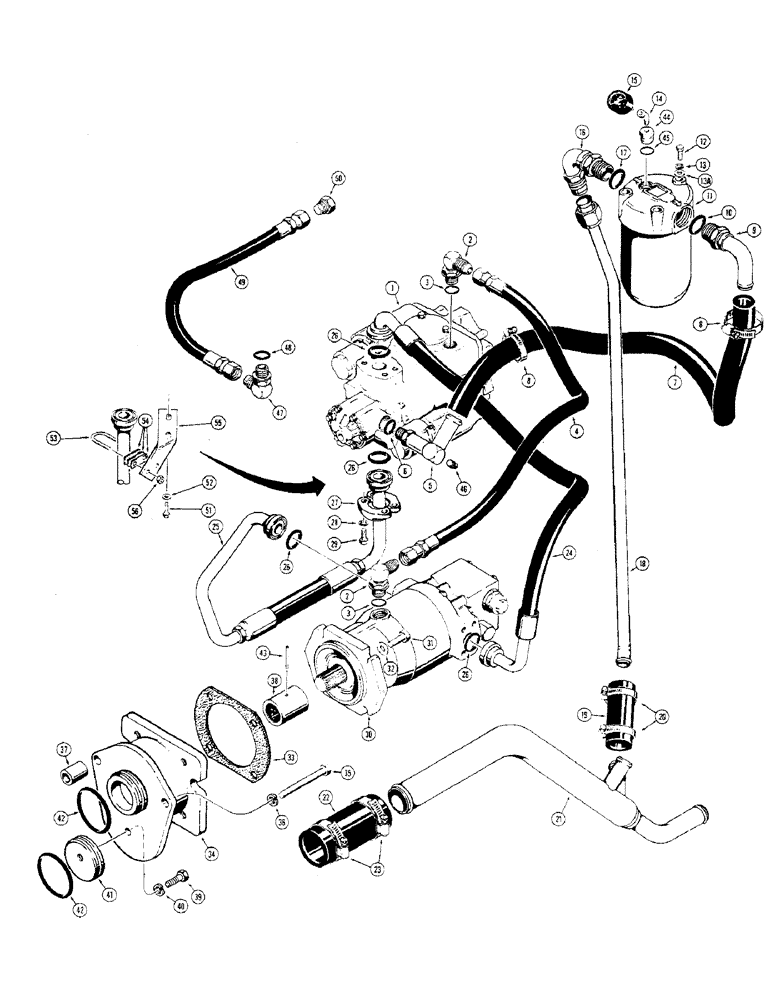

Запчасти Case 475 (128) - TRANSMISSION DRIVE HYDRAULIC CIRCUIT AND MOTOR MOUNTING (35) - HYDRAULIC SYSTEMS

1

R25520

PUMP

ASSEMBLY - hydrostatic, transmission drive, parts list figure 116

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

4

R24260

HOSE

- top of pump to top of motor, 21-1/2" (546 MM) long

1шт.

5

R24253

ELBOW - 90 degree, stem fitting, Includes: Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

7

R29836

FLEXIBLE HOSE

HOSE - 1" (25 MM) ID x 21-1/4" (540 MM) long, Serial Range: pump-filter

1шт.

8

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, adjustable

2шт.

9

R25134

TUBE ASSY.

TUBE - stem fitting, at filter, Includes: Ref. 10

1шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tube

1шт.

11

R25511

FILTER CARTRIDGE

FILTER ASSEMBLY - hydraulic, parts list figure 140

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

13

92-6

LOCK WASHER,3/8"

3шт.

13a

95-6

WASHER,3/8"

- flat, 3/8"

3шт.

14

221-401

ELBOW,45 Degree, 1/8"-27, NPT

STREET ELBOW - 45 degrees

1шт.

15

R29792

GAUGE ASSY.

RESTRICTION INDICATOR - filter

1шт.

16

R25137

TUBE ASSY.

TUBE - at filter, Includes: Ref. 17

1шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tube

1шт.

18

R24249

TUBE - filter to hydraulic reservoir

1шт.

19

D36798

HOSE

- 1" (25 MM) ID x 10-5/8" (270 MM) long

1шт.

20

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, adjustable

2шт.

21

R24254

MANIFOLD

TUBE - manifold

1шт.

22

R24841

HOSE ASSY.

HOSE - 2" (51 MM) ID x 6-1/2" (165 MM) long

1шт.

23

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

adjustable #36, 1.81/2.75 Type F Worm

2шт.

24

R24259

HOSE

- top of pump to right-hand side of motor

1шт.

25

R24801

HOSE

- bottom of pump to left-hand side of motor, use R38573 hose guard kit, see below

1шт.

For hose guard kit used with R24801 see Ref. 50, P/N R38573 kit

1шт.

26

D31968

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- hoses with flange fittings

4шт.

27

A12306

FLANGE

- split

8шт.

28

92-6

LOCK WASHER,3/8"

16шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

16шт.

30

R33749

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, transmission drive, parts list figure 122

1шт.

31

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

4шт.

32

R24323

WASHER

- hardened

4шт.

33

R24334

GASKET

-, Serial Range: motor-adapter

1шт.

34

R24326

ADAPTER -, Serial Range: motor-transmission

1шт.

35

13-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

36

92-8

LOCK WASHER,1/2"

2шт.

37

R24325

SPACER

- adapter

2шт.

38

R24333

COUPLING

-, Serial Range: motor-transmission

1шт.

39

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

40

92-8

LOCK WASHER,1/2"

1шт.

41

R24332

HUB CAP

BOSS - adapter

1шт.

42

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

- adapter and boss

2шт.

43

138-2036

PIN,3/16" x 2", Coiled

1шт.

44

R26251

ADAPTER - special, filter, Includes: Ref. 45

1шт.

46

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

47

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, adjustable, Includes: Ref. 48

1шт.

48

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- elbow

1шт.

49

D95111

HOSE

- flow test, 23" (584 MM) long

1шт.

50

218-772

PLUG,7/16"-20, 37 Degree

- hex head, 1/4" NPT

1шт.

R38573

KIT

- R24801 hose guard, Includes: Refs. 51-56

1шт.

Hose guard kit for Ref. 25 hose

1шт.

51

113-123

BOLT,Locking, 5/16" - 18 x 1", Gr 5

- hex, self-locking, 5/16" - 18 NC x 1"

2шт.

52

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

53

F21156

U-BOLT - 5/16" - 24 NF

1шт.

54

R38563

SHIM

- 7/64" (3 MM) thick

1шт.

55

R38564

BRACKET - hose support

1шт.

56

131-3

LOCK NUT,5/16"-24, GB

NUT - hex, self-locking, 5/16" - 24 NF

2шт.

45

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- adapter

1шт.
