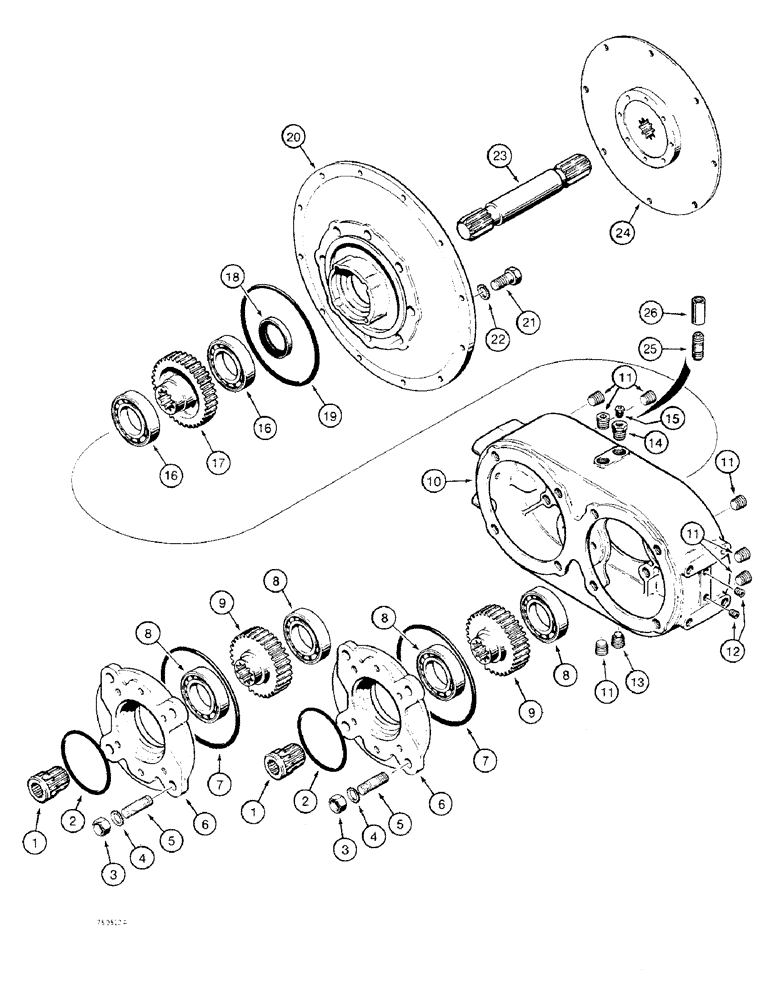

Запчасти Case 475 (126) - R24321 DOUBLE PUMP DRIVE, SPLITTER BOX (35) - HYDRAULIC SYSTEMS

R24321

DRIVE ASSY.

DRIVE ASSEMBLY - double pump, splitter box, Includes: Refs. 1-24

1шт.

1

R26087

SLEEVE

- adapter

2шт.

2

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

- adapter plate

2шт.

3

25-1012

NUT,3/4"-10, G5

8шт.

4

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

8шт.

5

R26096

STUD - 3/4" - 10 NC x 2-1/4"

8шт.

6

W13504

PLATE

- adapter, hydrostatic pump

2шт.

7

S116405

SEAL

- plate, 43" (1092 MM) long, cut to length required

2шт.

8

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

- driven gear, pump

4шт.

9

R26094

GEAR

DRIVEN GEAR - pump

2шт.

10

R26089

CASE

HOUSING - pump drive

1шт.

11

221-24

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG - square socket head, 1/2" NPT

7шт.

12

221-841

PLUG

- hex socket head, 1/4" NPT

4шт.

13

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

Magnetic Hex Soc, 1/2" NPT

1шт.

14

221-54

BUSHING

REDUCER - 1/2" NPT - 1/8" NPT, if used

1шт.

15

R11152

FITTING

BREATHER - pump drive

1шт.

16

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

- shaft

2шт.

17

R26088

PINION

DRIVE GEAR - shaft

1шт.

18

VT2090

OIL SEAL

OIL SEAL - shaft

1шт.

19

S116405

SEAL

- flywheel cover, 43" (1092 MM) long, cut to length required

1шт.

20

R26092

COVER ASSY

COVER - flywheel

1шт.

21

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

22

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4", If used

4шт.

23

R26091

SHAFT

- pump drive

1шт.

24

W13302

PLATE

- drive, flywheel, for mounting hardware, see figure 112

1шт.

25

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - 1/2" NPT x 1-1/8"

1шт.

26

221-338

COUPLING,Pipe, 1/2" NPT

- Pipe, 1/2" NPT

1шт.
