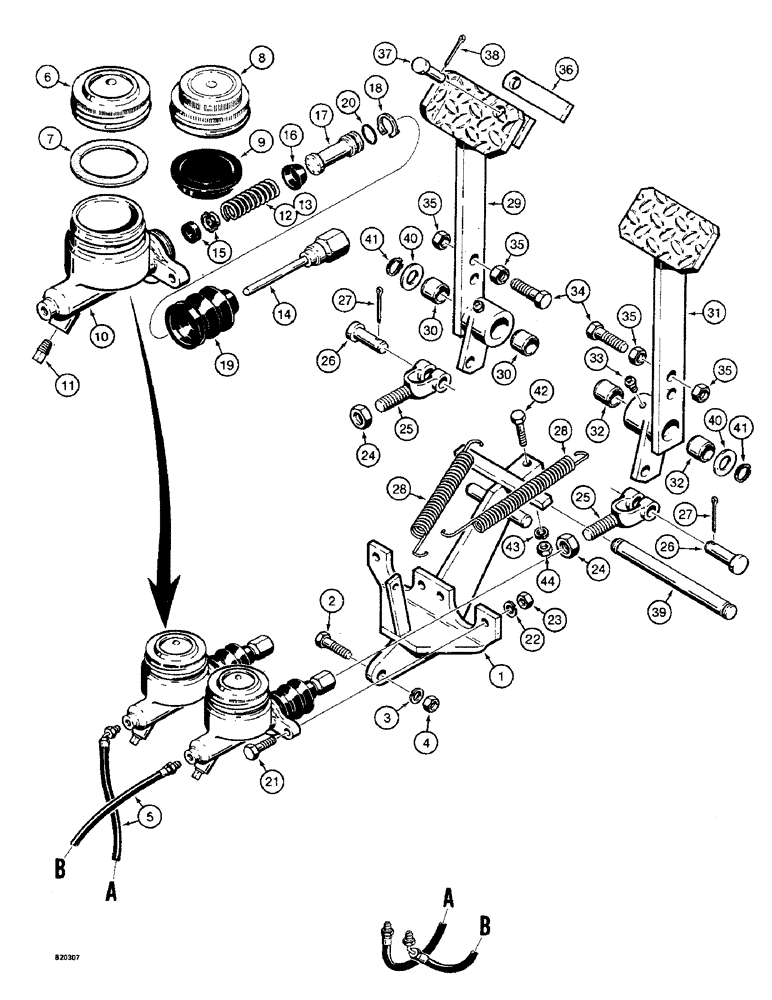

Запчасти Case 475 (192) - POWER BRAKES (33) - BRAKES & CONTROLS

1

R31439

BRACKET

SUPPORT - brake mounting

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

25-1010

NUT,5/8"-11, G5

2шт.

5

R24425

HOSE ASSY.

HOSE - 22-1/2" (572 MM) long

2шт.

D39824

CYLINDER

MASTER CYLINDER - brake, with rounded cap and flat gasket, no longer used, order R43758 master cylinder

2шт.

R43758

CYLINDER

MASTER CYLINDER - brake, with flat cap and formed gasket, Includes: Refs. 6-20

2шт.

6

D42448

CAP

- filler, rounded, D39824 master cylinder only, Includes: Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - cap, flat, D39824 master cylinder only

1шт.

8

N6574

FILLER CAP

CAP - filler, flat, R43758 master cylinder only, Includes: Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - formed, R43758 master cylinder only

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

11

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

12

D42444

SPRING

- D39824 master cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - R43758 master cylinder

1шт.

14

D42446

ROD

- actuating

1шт.

D42442

REPAIR KIT

KIT - repair, brake master cylinder, Includes: Refs. 15-20

1шт.

15

NSS

NOT SOLD SEPARAT

VALVE AND SEAT - master cylinder

1шт.

16

NSS

NOT SOLD SEPARAT

CAP - rubber, master cylinder

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

18

NSS

NOT SOLD SEPARAT

RETAINING RING - piston

1шт.

19

D42443

BOOT

- brake actuating rod

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

24

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex, jam, 7/16" - 20 NF

2шт.

25

D38620

YOKE

CLEVIS - adjustable

2шт.

26

141-5

CLEVIS PIN,7/16" x 1.190"

- 7/16"

2шт.

27

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

2шт.

28

R33370

SPRING

- brake

2шт.

29

D48604

PEDAL ASSY.

PEDAL - left-hand, Includes: Ref. 30

1шт.

30

R29752

BUSHING

- left-hand pedal

2шт.

31

D48605

BRAKE ASSY.

PEDAL - right-hand, Includes: Ref. 32

1шт.

32

R29752

BUSHING

- right-hand pedal

2шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

34

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

35

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, jam, 3/8" - 16 NC

4шт.

36

D42840

LOCK

BAR - pedal lock

1шт.

37

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

38

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

39

D34915

SHAFT

- brake pedals

1шт.

40

195-45

WASHER,3/4"

2шт.

41

T25683

SNAP RING,#75, Ext

RING, Snap, , brake pedal shaft #75, Ext

2шт.

42

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4"

1шт.

43

92-8

LOCK WASHER,1/2"

1шт.

44

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.
