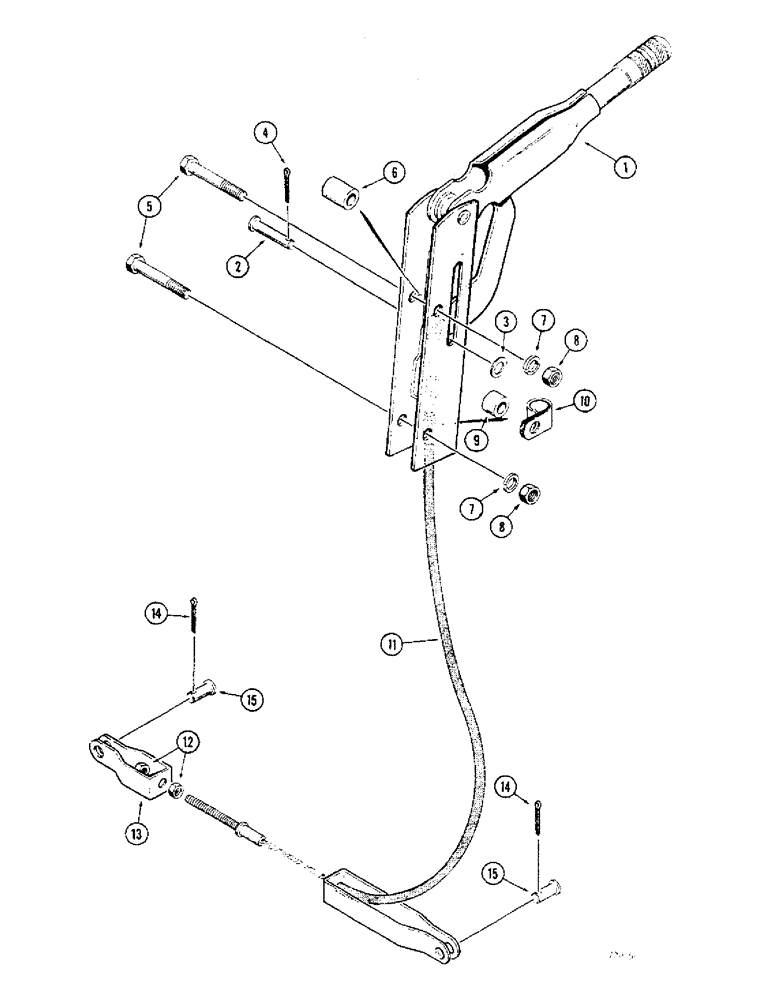

Запчасти Case 475 (190) - PARKING BRAKE (33) - BRAKES & CONTROLS

D40687

LEVER

BRAKE LEVER - parking, Includes: Refs. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER - parking brake

1шт.

2

D42458

PIN

- clevis

1шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

4

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

1шт.

5

26-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

- hex head, 5/16" - 18 NC x 1-3/4", grade 8

2шт.

6

D40685

SPACER

- lever

1шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

9

D30863

TUBE

SPACER - clamp

1шт.

10

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

- cable guide

1шт.

D44006

CABLE

ASSEMBLY - brake, Includes: Refs. 11-13

1шт.

11

NSS

NOT SOLD SEPARAT

CABLE - brake

1шт.

12

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

13

D43802

CLEVIS

- cable

1шт.

14

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

2шт.

15

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

2шт.
