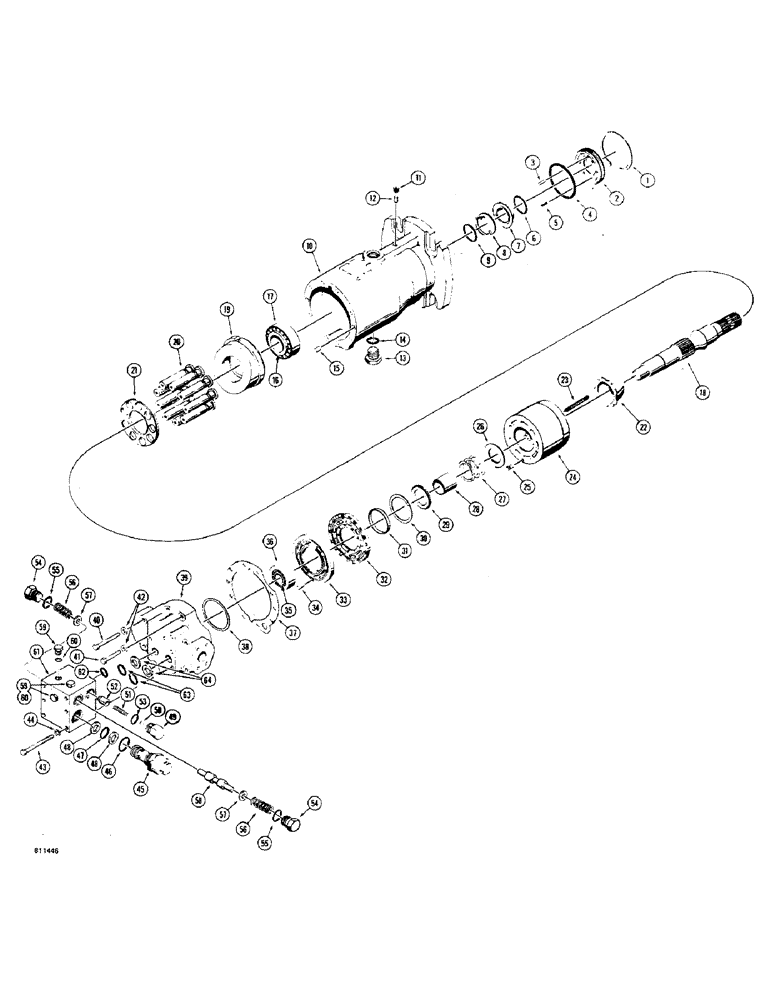

Запчасти Case 475 (208) - F94287 HYDROSTATIC MOTOR, VIBRATOR DRIVE (29) - HYDROSTATIC DRIVE

F94287

MOTOR HOUSING

MOTOR ASSEMBLY - hydrostatic, fixed displacement, Sundstrand no. 21-3023, Includes: Refs. 1-64

1шт.

R29533

SEAL KIT

KIT - seal, Includes: Refs. 1-9

1шт.

1

F23160

RING

SNAP RING - seal retainer

1шт.

2

N6880

RETAINER

- seal

1шт.

3

F23157

AXLE PIN

GROOVE PIN - seal retainer

1шт.

4

F23158

O-RING

- seal

1шт.

5

F23156

SPRING

- seal retaining

6шт.

6

R26322

O-RING

- seal

1шт.

F89258

SEAL

- double, shaft, Includes: Refs. 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - stationary

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rotating

1шт.

9

R26322

O-RING

- shaft

1шт.

10

F23212

HOUSING - motor

1шт.

11

F23137

PLUG

- special, housing

1шт.

12

NLS

NO LONGER SERVICED

PIN - housing

1шт.

13

86512512

PLUG,7/8" - 14 ORB

5/8", Incl. Ref. 14 Hex Hd, 7/8"-14 ORB

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

15

F23124

AXLE PIN

PIN - aligning, housing

2шт.

16

R26254

BEARING

TAPERED ROLLER BEARING - front, Includes: Ref. 17

1шт.

17

NSS

NOT SOLD SEPARAT

CUP - tapered roller bearing

1шт.

18

F23206

SHAFT

- motor

1шт.

19

F23208

PLATE

SWASH-PLATE - fixed

1шт.

R29536

BLOCK

AND PISTON ASSEMBLY - Sundstrand no. 9210494, if used

1шт.

D80489

BLOCK

AND PISTON ASSEMBLY - Sundstrand no. 9210578, if used

1шт.

20

R26275

PISTON

- R29536 assembly only

9шт.

20

D80482

PISTON ASSY.

PISTON - D80489 assembly only

9шт.

21

F23207

FLANGE

RETAINER - piston

1шт.

22

F23205

GUIDE

- retainer

1шт.

23

F23204

SPRING

- pistons, R29536 assembly only

9шт.

23

D80484

SPRING

- pistons, D80489 assembly only

9шт.

24

NSS

NOT SOLD SEPARAT

BLOCK - cylinder, Sundstrand no. 9210307, used on R29536 assembly, order D80489 complete assembly

1шт.

24

D80483

CYLINDER BLOCK

BLOCK - cylinder, Sundstrand no. 9210576, used on D80489 assembly only

1шт.

25

F23203

PIN

- cylinder block

1шт.

26

F23202

SEAT

- springs

1шт.

27

R26276

SPRING - cylinder block, R29536 assembly only

1шт.

27

D80481

SPRING

- cylinder block, D80489 assembly only

1шт.

28

F23200

GUIDE

- spring

1шт.

29

F23199

RETAINER

- spring

1шт.

30

F23198

SEAL ASSY.

RETAINING RING - spring

1шт.

31

F23197

WASHER

PILOT - bearing plate

1шт.

32

F89273

PLATE ASSY.

PLATE - bearing support, front

1шт.

33

F23279

SHIN

PLATE - bearing support, rear

1шт.

34

F23119

AXLE PIN

PIN - alignment

1шт.

35

NLS

NO LONGER SERVICED

ROLLER BEARING ASSEMBLY - rear, Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

CUP - roller bearing assembly

1шт.

37

F23193

HEADED PIN,3/4" x 4 11/16"

GASKET - end cap

1шт.

38

F23192

SHIM

- end cap

1шт.

39

H219428

CAP - end, motor

1шт.

40

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

5шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

42

F23114

WASHER

- special

8шт.

R29543

HYDRAULIC VALVE

MANIFOLD AND VALVE ASSEMBLY - motor, Includes: Refs. 43-64

1шт.

43

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- hex head, 5/16" - 18 NC x 3-3/4"

6шт.

44

F23187

WASHER

- special

6шт.

F89261

MANIFOLD

ASSEMBLY - motor, Includes: Refs. 45-61

1шт.

N6917

VALVE

RELIEF VALVE ASSEMBLY - high pressure, interchangeable with F89262 relief valve assembly, Includes: Refs. 45-48

2шт.

45

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

46

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- outer

1шт.

47

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- inner

1шт.

48

A16860

RING

BACKUP RING - O-ring

2шт.

49

NSS

NOT SOLD SEPARAT

PLUG - hex head, charge relief valve

1шт.

50

H570283

SHIM

- charge relief valve

1шт.

51

NSS

NOT SOLD SEPARAT

SPRING - charge relief valve

1шт.

52

NSS

NOT SOLD SEPARAT

PISTON - charge relief valve

1шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- charge relief valve

1шт.

54

NSS

NOT SOLD SEPARAT

PLUG - shuttle valve

2шт.

55

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- shuttle valve

2шт.

56

NSS

NOT SOLD SEPARAT

SPRING - shuttle valve

2шт.

57

NSS

NOT SOLD SEPARAT

WASHER - shuttle valve

2шт.

58

NSS

NOT SOLD SEPARAT

SPOOL - shuttle valve

1шт.

59

NSS

NOT SOLD SEPARAT

PLUG - hex head, manifold housing, Includes: Refs. 60

3шт.

60

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

61

NSS

NOT SOLD SEPARAT

HOUSING - manifold

1шт.

R29539

SEAL ASSY.

KIT - seal, manifold, Includes: Refs. 62-64

1шт.

62

R15366

O-RING,7/8" ID x 1" OD x 1/16"

- small

1шт.

63

F23189

O-RING

- large

2шт.

64

F23190

O-RING

BACKUP RING - O-ring

2шт.
