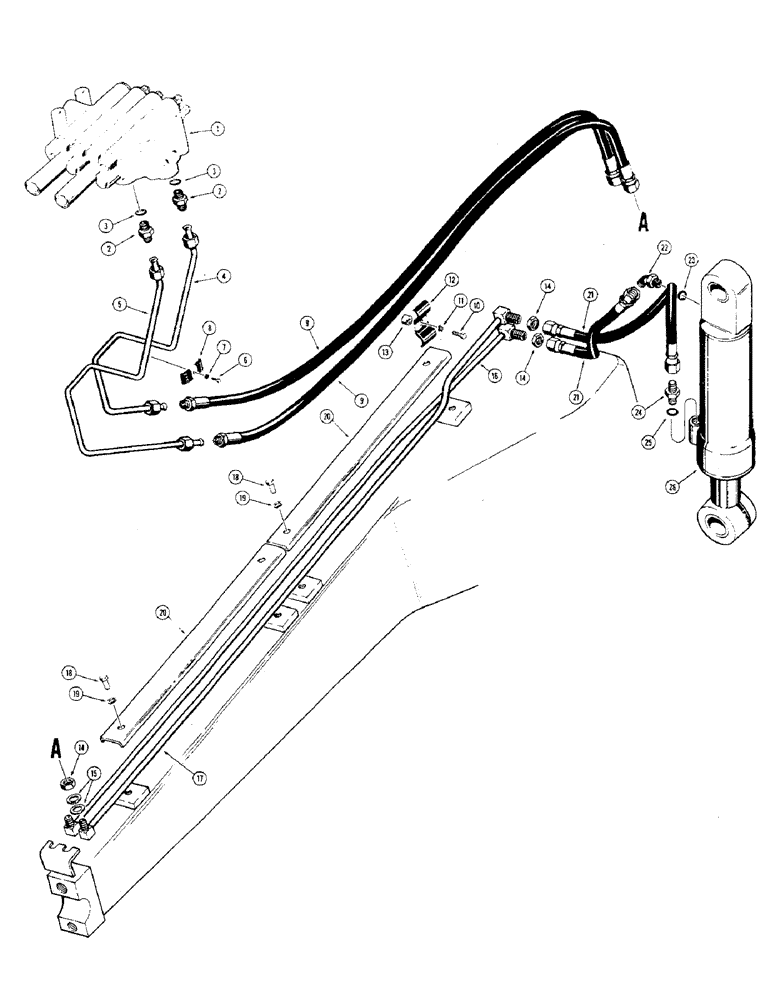

Запчасти Case 475 (200) - DOZER TILT HYDRAULIC CIRCUIT (29) - HYDROSTATIC DRIVE

1

R31182

VALVE

CONTROL VALVE - 4 spool, parts list figure 234

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

R31257

TUBE - at valve, front port

1шт.

5

R31259

TUBE

- at valve, rear port

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

R25528

CLAMP

- tube

1шт.

9

R31570

HOSE ASSY.

HOSE - 53" (1346 MM) long

2шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

D40236

CLAMP

- hose

1шт.

13

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp

1шт.

14

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, , jam Blkhd, 3/4"-16

4шт.

15

D35268

SHIM,1/32" Thk

Washer, Special 1/32" Thk

4шт.

16

R31372

TUBE,0.5" OD x 59, 4.2" L

- hydraulic

1шт.

17

R31374

TUBE,0.5" OD

- hydraulic

1шт.

18

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

R31406

GUARD - hydraulic tubes

2шт.

21

R33545

HOSE

- 21" (533 MM) long

2шт.

22

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, male, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

24

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 25 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

26

REF

INSTRUCTION

CYLINDER - tilt, parts list figures 222 and 224

1шт.
