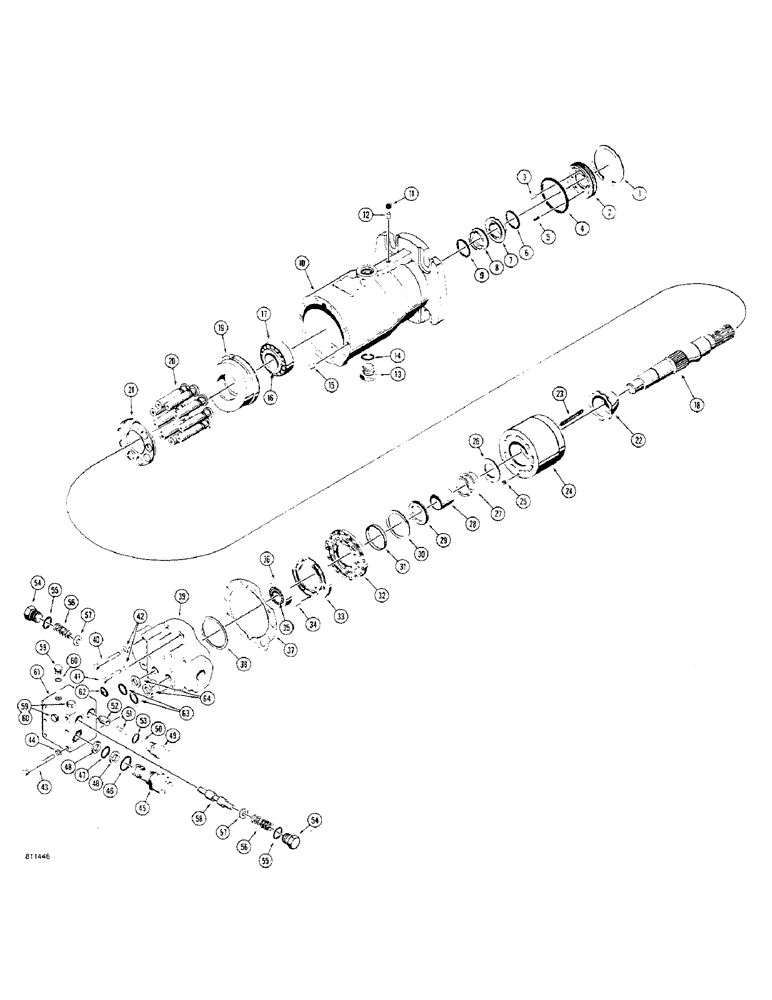

Запчасти Case 475 (122) - R33749 HYDROSTATIC MOTOR, TRANSMISSION DRIVE (29) - HYDROSTATIC DRIVE
№
Артикул
Название
Примечание
Количество
R33749
MOTOR, HYDRAULIC
MOTOR ASSEMBLY - hydrostatic, fixed displacement, Sundstrand no. 23-3028, Includes: Refs. 1-64
1шт.
S95936
SEAL ASSY.
SEAL ASSEMBLY - motor, Includes: Refs. 1-9
1шт.
1
D63418
SNAP RING,3.875", Int, #387
Ring, Snap, , seal 3.875", Int, #387
1шт.
2
NSS
NOT SOLD SEPARAT
RETAINER - springs
1шт.
3
F23157
AXLE PIN
GROOVE PIN - spring retainer
1шт.
D66240
KIT
- seal, Includes: Refs. 4-9
1шт.
4
G15457
O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro
- 3-1/2" ID
1шт.
5
F23156
SPRING
- seal
8шт.
6
D63419
O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro
- seal
1шт.
7
NSS
NOT SOLD SEPARAT
SEAL - stationary
1шт.
8
NSS
NOT SOLD SEPARAT
SEAL - rotating, bronze
1шт.
9
D63419
O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro
- seal
1шт.
10
D63423
HOUSING
- motor
1шт.
11
F23137
PLUG
- special
1шт.
12
D63417
PIN - housing
1шт.
13
86512512
PLUG,7/8" - 14 ORB
5/8", Incl. Ref. 14 Hex Hd, 7/8"-14 ORB
1шт.
14
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- plug
1шт.
15
F23124
AXLE PIN
PIN - aligning, housing
2шт.
16
K5259
CONE
TAPERED ROLLER BEARING - front
1шт.
17
R10218
BEARING CUP
CUP - tapered roller bearing, front
1шт.
18
D63426
SHAFT
- motor
1шт.
19
D63427
PLATE
SWASH-PLATE - fixed
1шт.
D63428
BLOCK
ASSEMBLY - piston, Includes: Refs. 20-32
1шт.
20
D63431
PISTON - motor
9шт.
21
D36432
RETAINER - pistons
1шт.
22
D63433
GUIDE
- retainer
1шт.
23
D63434
SPRING
- pistons
6шт.
24
D63435
BLOCK - pistons
1шт.
25
R26252
PIN
- aligning, pistons block
1шт.
26
D63436
SEAT
- springs
1шт.
27
D63437
SPRING
- piston block
1шт.
28
D63438
GUIDE
- spring
1шт.
29
D63439
RETAINER
- spring
1шт.
30
D63416
OIL SEAL
RETAINING RING - piston block
1шт.
31
D63440
PILOT VALVE
PILOT - bearing plate
1шт.
32
64836
PLATE - bearing support, front
1шт.
33
D63422
PLATE
- bearing support, rear
1шт.
34
NLS
NO LONGER SERVICED
PIN - aligning, bearing plates
1шт.
35
D31949
ROLLER BEARING,30.175 mm ID x 21.636 mm
TAPERED ROLLER BEARING - rear
1шт.
36
D31948
BEARING CUP,2.5312" OD x 0.6563"
CUP - tapered roller bearing, rear
1шт.
37
D63421
GASKET
- end cap
1шт.
38
D63430
SHIM,.010" Thk
(0.25 mm), If used .010" Thk
1шт.
38
D64835
SHIM - .020" (0.51 MM) thick, if used
1шт.
39
D63429
CAP - end, motor
1шт.
40
13-752
BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5
4шт.
41
13-736
BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5
5шт.
42
95-7
WASHER,7/16"
- flat, 7/16"
9шт.
43
19-560
STUD,3/8" - 16 x 1 1/4", Mild Steel
BOLT - hex head, 5/16" - 18 NC x 3-3/4"
6шт.
44
F23187
WASHER
- special
6шт.
REF
INSTRUCTION
MOTOR ASSEMBLY - continued
1шт.
F89261
MANIFOLD
ASSEMBLY - motor, Includes: Refs. 45-61
1шт.
N6917
VALVE
RELIEF VALVE ASSEMBLY - high pressure, Includes: Refs. 45-48
2шт.
45
NSS
NOT SOLD SEPARAT
BODY - relief valve
1шт.
46
218-5009
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
- outer
1шт.
47
D63414
O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro
- inner
1шт.
49
NSS
NOT SOLD SEPARAT
PLUG - hex head, charge relief valve
1шт.
50
H570283
SHIM
- charge relief valve
1шт.
51
NSS
NOT SOLD SEPARAT
SPRING - charge relief valve
1шт.
52
NSS
NOT SOLD SEPARAT
PISTON - charge relief valve
1шт.
53
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- charge relief valve
1шт.
54
NSS
NOT SOLD SEPARAT
PLUG - shuttle valve
2шт.
55
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- shuttle valve
2шт.
56
NSS
NOT SOLD SEPARAT
SPRING - shuttle valve
2шт.
57
NSS
NOT SOLD SEPARAT
WASHER - shuttle valve
2шт.
58
NSS
NOT SOLD SEPARAT
SPOOL - shuttle valve
1шт.
59
NSS
NOT SOLD SEPARAT
PLUG - hex head, manifold housing, Includes: Refs. 60
3шт.
60
NSS
NOT SOLD SEPARAT
O-RING - plug
3шт.
61
NSS
NOT SOLD SEPARAT
HOUSING - manifold
1шт.
R29539
SEAL ASSY.
KIT - seal, manifold, Includes: Refs. 62-64
1шт.
62
R15366
O-RING,7/8" ID x 1" OD x 1/16"
- small
1шт.
63
F23189
O-RING
- large
2шт.
64
F23190
O-RING
BACKUP RING - O-ring
2шт.
Выбрано товаров: 73
