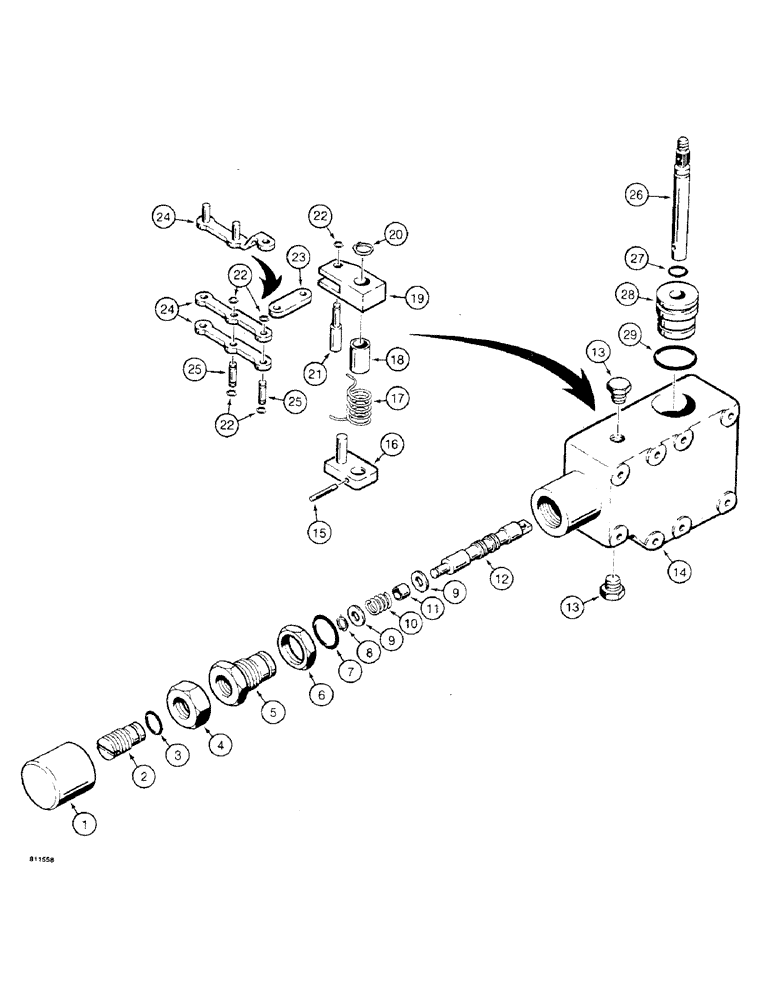

Запчасти Case 475 (120) - CONTROL VALVE, HYDROSTATIC PUMP (29) - HYDROSTATIC DRIVE

NSS

NOT SOLD SEPARAT

CONTROL VALVE ASSEMBLY - order D80528 control valve assembly, parts list figure 116, Includes: Refs. 1-29

1шт.

1

S106759

COVER

CAP - spool

1шт.

2

S106737

ADJUSTING SCREW - spool

1шт.

3

F23125

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- adjusting screw

1шт.

4

129-168

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4" - 16 NF, plated

1шт.

5

S106739

HOUSING

- centering spring

1шт.

6

S106740

NUT

- hex, lock, special

1шт.

7

S106743

O-RING - spring housing

1шт.

8

F23148

SCREW

SNAP RING - spool

1шт.

9

S106747

WASHER

- spring retaining

2шт.

10

S106742

SPRING

CENTERING SPRING - spool

1шт.

11

S106741

SLEEVE

- centering spring

1шт.

12

S106745

KIT

SPOOL - control valve

1шт.

13

S97899

PLUG

- hex head

2шт.

14

S106744

HOUSING - control valve

1шт.

15

S106748

AXLE PIN

PIN - return spring

1шт.

16

S106749

ACTUATOR

- return spring

1шт.

17

S106752

SPRING

- round wire, uses S233211 kit

1шт.

17

S110118

SPRING

- square wire

1шт.

Part of Spring and Sleeve Kit P/N S233211

1шт.

18

S106756

SLEEVE - S106752 spring

1шт.

18

110119

SLEEVE - S110118 spring

1шт.

Part of Spring and Sleeve Kit P/N S233211

1шт.

19

S106753

LEVER

- actuator

1шт.

20

R29526

RING

SNAP RING - lever retaining

1шт.

21

S106751

STOP

PIN -, Serial Range: lever-link

1шт.

22

R26314

SNAP RING,#25, Ext, E-Type

RING, Retaining, , pin #25, Ext, E-Type

5шт.

23

R26259

LINK

- lever to control valve links

1шт.

24

S106746

LINK

- control valve

1шт.

Single link with welded pins services two links without welded pins.

1шт.

25

S106755

PIN - pivot, if used

2шт.

26

S106750

SHAFT

- handle, control valve

1шт.

27

S106754

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

- shaft

1шт.

28

S106757

BUSHING

- shaft

1шт.

29

S106758

O-RING

- bushing

1шт.

S233211

KIT

- spring and sleeve, Includes: Ref. 17 -P/N S110118 and 18 -P/N 110119

1шт.
