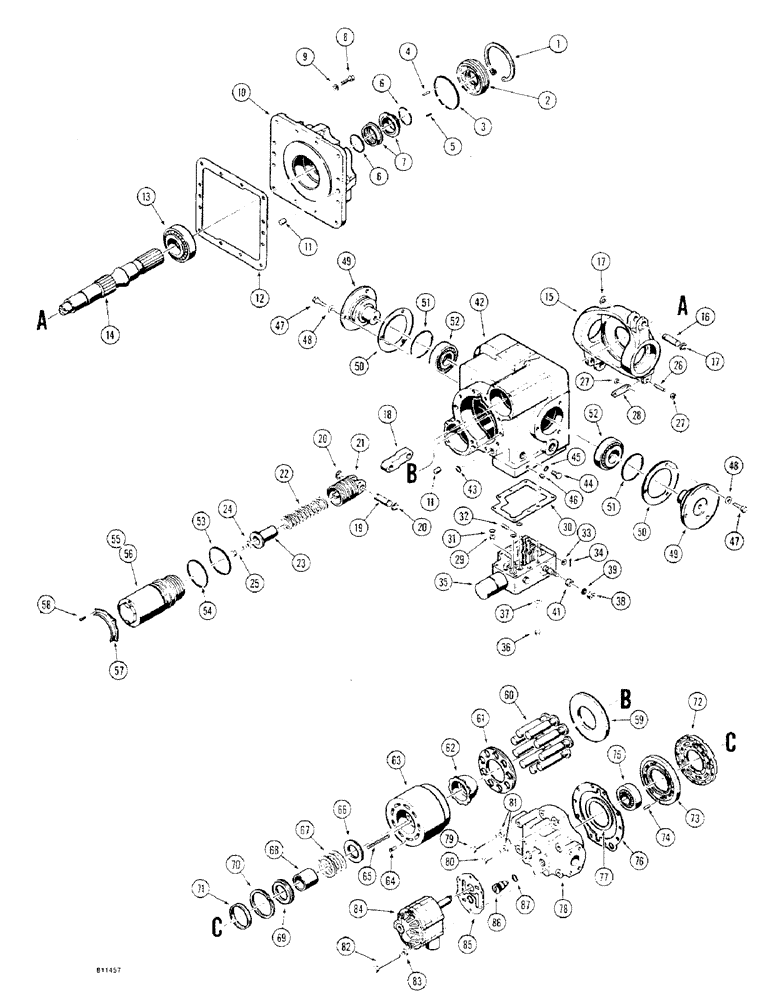

Запчасти Case 475 (116) - R25520 HYDROSTATIC PUMP, TRANSMISSION DRIVE (29) - HYDROSTATIC DRIVE

R25520

PUMP

ASSEMBLY - hydrostatic, Sundstrand no. 21-2024, Includes: Refs. 1-87

1шт.

R29533

SEAL KIT

KIT - seal, Includes: Refs. 1-7

1шт.

1

F23160

RING

SNAP RING - seal retainer, front cover

1шт.

2

N6880

RETAINER

- seal, interchangeable with F23159

1шт.

3

F23158

O-RING

- front cover

1шт.

4

F23157

AXLE PIN

GROOVE PIN - seal retainer

1шт.

5

F23156

SPRING

- seal retaining

6шт.

6

R26322

O-RING

- pump shaft

2шт.

7

F89258

SEAL

- double, shaft

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

9

F23114

WASHER

- special

12шт.

10

R26284

COVER - front

1шт.

11

F23124

AXLE PIN

DOWEL PIN - front cover

4шт.

12

H220855

GASKET

- front cover

1шт.

13

R26254

BEARING

ROLLER BEARING - shaft, front

1шт.

14

R26285

SHAFT

- pump

1шт.

15

R26286

SWASH-PLATE - pump

1шт.

16

R30954

PIN

- swash-plate to piston link

2шт.

17

R29526

RING

SNAP RING - pin

4шт.

R26274

PISTON ASSY.

PISTON ASSEMBLY - servo, Includes: Refs. 18-25

1шт.

18

R26295

LINK -, Serial Range: swash-plate-piston

2шт.

19

R30954

PIN

-, Serial Range: link-piston

2шт.

20

R29526

RING

SNAP RING - pin

4шт.

21

R29546

PISTON

- servo

2шт.

22

R29547

SPRING

- piston

2шт.

23

R26283

GUIDE

- spring

2шт.

24

R29545

WASHER

- special

2шт.

25

166-3

12 PT SCREW,Flg, 1/4" - 20 x 5/8", Gr 8

SCREW - socket head, 1/4" - 20 NC x 5/8"

2шт.

26

F23149

AXLE PIN

PIN - swash-plate to control valve link

1шт.

27

R26314

SNAP RING,#25, Ext, E-Type

RING, Retaining, , pin #25, Ext, E-Type

2шт.

28

F23147

LINK

- swash-plate to control valve

1шт.

29

D80606

PLUG

- control valve

1шт.

D80528

VALVE

CONTROL VALVE ASSEMBLY - pump, Includes: Refs. 30-41

1шт.

30

R26263

GASKET

- control valve

1шт.

31

F23125

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- control valve

3шт.

32

F23135

PIN

- control valve links to swash-plate link, if used

1шт.

33

A22354

WASHER

- flat, if used

1шт.

34

132-4

COTTER PIN - 1/16" x 7/16", if used

1шт.

35

REF

INSTRUCTION

CONTROL VALVE - parts list figure 120

1шт.

36

13-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

9шт.

37

A22354

WASHER

- flat

9шт.

38

25-144

JAM NUT,Jam, 1/4"-20, G5

- hex, 1/4" - 20 NC

1шт.

39

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

40

F23131

HANDLE

LEVER - control valve, not used, not shown, remove and replace with lever shown on figure 112, Ref. 22

1шт.

41

F23132

SPACER

- lever

1шт.

42

R26278

HOUSING - pump

1шт.

43

F23125

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- housing

1шт.

44

9672438

PLUG,7/16" - 20 ORB

- hex head, 1/8" NPT, Incl. Ref. 45

1шт.

45

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- plug

1шт.

46

F23137

PLUG

- special

1шт.

REF

INSTRUCTION

PUMP ASSEMBLY - continued

1шт.

47

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

48

F23187

WASHER

- special

6шт.

49

H219485

TRUNNION - swash-plate

2шт.

50

R26273

GASKET

- trunnion

2шт.

51

R26327

O-RING

- trunnion

2шт.

52

R26281

BEARING WASHER

ROLLER BEARING ASSEMBLY - trunnion

2шт.

R29535

KIT

SLEEVE ASSEMBLY - piston, Includes: Refs. 53-56

1шт.

53

G32926

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

- 2-1/8" (56 MM) OD

2шт.

54

A23904

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

-139, 90 Duro, 2.175" ID x .103" Thk, (2-3/8" (60 mm) OD)

2шт.

55

F23215

PLUG

- sleeve

4шт.

56

R26325

SLEEVE CYLINDER

SLEEVE - piston

2шт.

57

R26297

RETAINER

- sleeve

2шт.

58

R26316

SCREW

- special

4шт.

59

R29529

PLATE

- thrust, pistons

1шт.

R29536

BLOCK

AND PISTONS ASSEMBLY - Sundstrand no. 9210494, if used

1шт.

D80489

BLOCK

AND PISTONS ASSEMBLY - Sundstrand no. 9210578, if used, Includes: Refs. 60-73

1шт.

60

R26275

PISTON

- R29536 assembly only

9шт.

60

D80482

PISTON ASSY.

PISTON - D80489 assembly only

9шт.

61

F23207

FLANGE

RETAINER - piston

1шт.

62

F23205

GUIDE

- retainer

1шт.

63

NSS

NOT SOLD SEPARAT

BLOCK - cylinder, Sundstrand no. 9210307, used on R29536 assembly, order D80489 complete assembly

1шт.

63

D80483

CYLINDER BLOCK

BLOCK - cylinder, Sundstrand no. 9210576, used on D80489 assembly only

1шт.

64

F23203

PIN

- cylinder block

1шт.

65

F23204

SPRING

- pistons, R29536 assembly only

9шт.

65

D80484

SPRING

- pistons, D80489 assembly only

9шт.

66

F23202

SEAT

- springs

1шт.

67

R26276

SPRING - cylinder block, R29536 assembly only

1шт.

67

D80481

SPRING

- cylinder block, D80489 assembly only

1шт.

68

F23200

GUIDE

- spring

1шт.

69

F23199

RETAINER

- spring

1шт.

70

F23198

SEAL ASSY.

RETAINER RING - spring

1шт.

71

F23197

WASHER

PILOT - bearing plate

1шт.

72

F89273

PLATE ASSY.

PLATE - bearing support, front

1шт.

73

H246587

PLATE

- bearing support, rear

1шт.

74

NLS

NO LONGER SERVICED

PIN - alignment

1шт.

75

R26280

BEARING

ROLLER BEARING ASSEMBLY - rear

1шт.

76

F23193

HEADED PIN,3/4" x 4 11/16"

GASKET - end cap

1шт.

77

F23192

SHIM

- end cap

1шт.

78

H246553

CAP - pump mounting

1шт.

79

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

5шт.

80

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

81

F23114

WASHER

- special

8шт.

R29537

KIT

CHARGING PUMP ASSEMBLY - pump, Includes: Refs. 82-85

1шт.

82

13-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

4шт.

83

A22354

WASHER

- special

4шт.

84

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - charging

1шт.

85

R26262

GASKET

- pump

1шт.

86

F89256

VALVE, CHECK

CHECK VALVE - pump, Includes: Ref. 87

1шт.

87

F23111

O-RING

- check valve

1шт.
