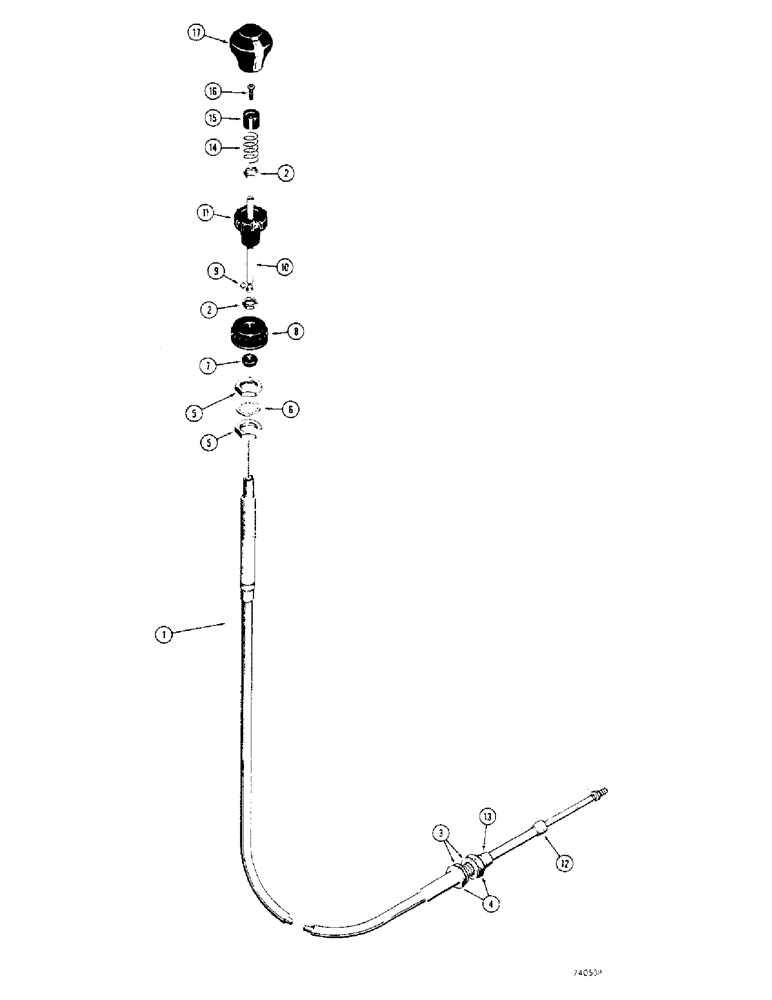

Запчасти Case 475 (114) - R24416 AND R24417 PUMP CONTROL CABLES (29) - HYDROSTATIC DRIVE

R24416

CABLE PULLING GRIP

CABLE ASSEMBLY - transmission control, 82" (2083 MM) long

1шт.

R24417

CABLE PULLING GRIP

CABLE ASSEMBLY - plow control, 74" (1880 MM) long, Includes: Refs. 1-17

1шт.

1

NSS

NOT SOLD SEPARAT

CABLE ASSEMBLY - complete, pump control

1шт.

2

129-661

NUT

- hex, no. 10-32 NF

2шт.

3

195-529

WASHER,7/16", SAE

- flat, 7/16", plated

2шт.

4

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

2шт.

5

129-168

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4" - 16 NF, plated

2шт.

6

193-61

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, Int Tooth, 3/4"

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - sleeve

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

9

211-4

BALL

- steel, 5/32" diameter

1шт.

10

L32239

ROD

- control cable

1шт.

11

NSS

NOT SOLD SEPARAT

KNOB - control

1шт.

12

L32691

WIPER - cable

1шт.

13

L32690

SEAL

SEAL - bulkhead

1шт.

14

L32234

SPRING

- control cable

1шт.

15

L32233

BUTTON

PUSH BUTTON - control cable

1шт.

16

171-245

SCREW,Cross Flat Hd, #8 - 32 x 1/2"

- Phillips head, no. 8 - 32 NC x 1/2", plated

1шт.

17

L32232

BOOT

- rubber

1шт.
