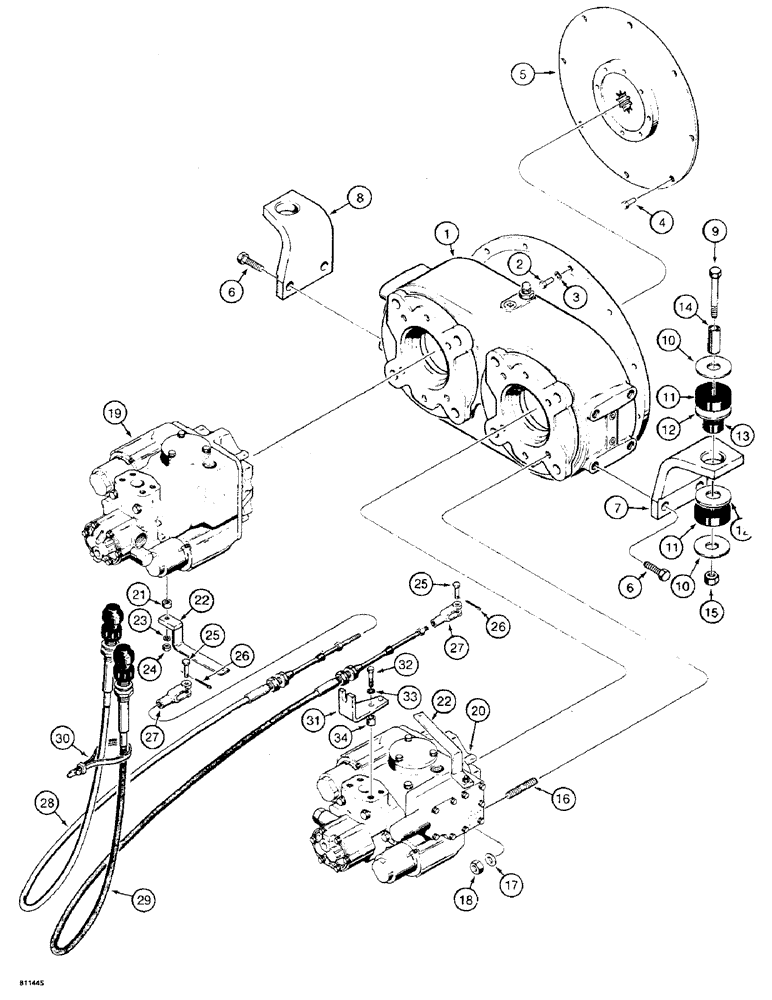

Запчасти Case 475 (112) - SPLITTER BOX, HYDROSTATIC PUMPS, AND CONTROLS (29) - HYDROSTATIC DRIVE

1

R24321

DRIVE ASSY.

SPLITTER BOX - double pump drive, parts list figure 126

1шт.

2

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

12шт.

3

92-6

LOCK WASHER,3/8"

12шт.

4

121-205

LOCK BOLT,Lock Place, Hex, 3/8" - 16 x 3/4", Gr 8

BOLT - hex head, self-locking, 3/8" - 16 NC x 3/4"

8шт.

5

REF

INSTRUCTION

PLATE - drive, flywheel, see figure 126, ref. 24

1шт.

6

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex head, 5/8" - 11 NC x 1-1/2", grade 8

4шт.

7

R24798

ANGLE

BRACKET - splitter box mounting, right-hand

1шт.

8

R24797

ANGLE

BRACKET - splitter box mounting, left-hand

1шт.

9

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex head, 5/8" - 11 NC x 4"

2шт.

10

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- special

4шт.

11

R31034

WASHER,22.23mm ID x 63.5mm OD x 12.7mm Thk

INSULATOR - rubber

4шт.

12

R31035

WASHER

- hardened

4шт.

13

D35010

BUSHING,22.23mm ID x 41.27mm OD x 19.05mm L

- rubber

2шт.

14

R18586

SPACER

- splitter box mounting

2шт.

15

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

16

R24322

STUD

- special

8шт.

17

R24323

WASHER

- special, hardened

8шт.

18

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

19

R25520

PUMP

ASSEMBLY - hydrostatic, transmission drive, parts list figure 116

1шт.

20

R24324

PUMP

ASSEMBLY - hydrostatic, vibrator drive, parts list figure 212

1шт.

21

F23132

SPACER

- lever

2шт.

22

R24422

LEVER

- pump

2шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

25-104

NUT,1/4"-20, G5

2шт.

25

141-51

CLEVIS PIN,3/16" x .580"

- 3/16"

2шт.

26

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

27

213-1

ADJUSTABLE CLEVIS,#10-32

CLEVIS - cable

2шт.

28

R24416

CABLE PULLING GRIP

CABLE - transmission pump control, parts list figure 114

1шт.

29

R24417

CABLE PULLING GRIP

CABLE - vibrator pump control, parts list figure 114

1шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - cables

1шт.

31

R24263

BRACKET

- vibrator pump control cable

1шт.

32

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

D43608

SPACER

- bracket

2шт.
