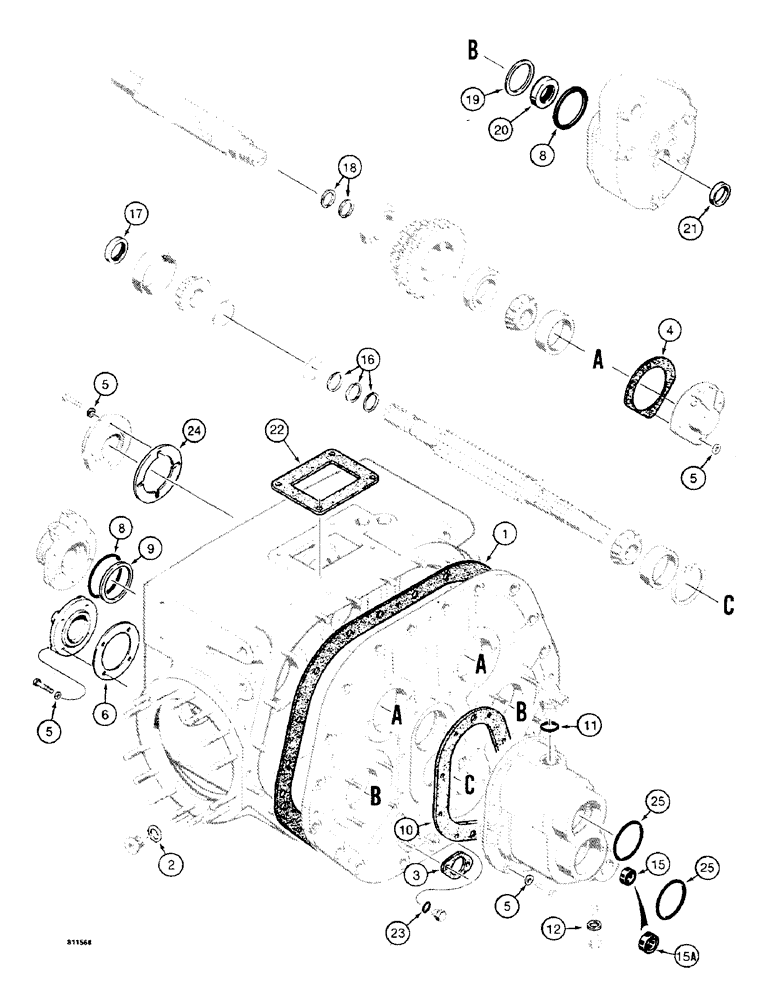

Запчасти Case 475 (174) - TRANSMISSION SEAT KIT, HOUSING (21) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
G102662
SEAL
KIT - seal, transmission housing, includes several refs not needed on the 475 cable layer, Includes: Refs. 1-22
1шт.
1
G35334
GASKET
- housing cover
1шт.
2
A58613
SEALING WASHER
WASHER - drain plug
1шт.
3
A50109
GASKET
- oil suction tube
1шт.
4
A50056
GASKET
- hi-low clutch shaft cover, front
2шт.
5
D32117
COPPER WASHER
WASHER, COPPER
33шт.
6
A50348
SHIM,.003" Thk
(0.076 mm) .003" Thk
4шт.
6
A50272
SHIM,.005" Thk
(0.127 mm) .005" Thk
2шт.
6
A50347
PIN
- .010" (0.254 MM) thick
1шт.
8
A50055
SEALING RING
RING - rubber
3шт.
9
A50053
SHIM,.003" Thk
(0.076 mm) .003" Thk
4шт.
9
40590
SHIM
- .005" (0.127 MM) thick
2шт.
9
40591
SHIM
- .010" (0.254 MM) thick
1шт.
10
A50269
GASKET
- range gear housing
1шт.
11
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- oil return elbow, range gear housing
1шт.
12
A50093
SEALING WASHER
WASHER - special, range selector detent
1шт.
15
A50421
OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk
- selector shaft, no longer used, service with G105118 seal
1шт.
15a
G105118
OIL SEAL
- selector shaft, double lip
1шт.
16
A51841
RING
- seal, transmission drive shaft
3шт.
17
A54107
OIL SEAL,38.1mm ID x 8mm Thk
- shaft
1шт.
18
A50389
SEAL
RING - seal, high and low clutch shaft
4шт.
19
A50061
SHIM,0.076mm Thk
(.003"), Pinion shaft bearing 0.076mm Thk
4шт.
19
A50062
SHIM,0.127mm Thk
(.005"), Pinion shaft bearing 0.127mm Thk
2шт.
19
A50063
SHIM,0.254mm Thk
(.010"), Pinion shaft bearing 0.254mm Thk
1шт.
20
A50418
OIL SEAL
- brake plate
2шт.
21
41-1628
PLUG,Cup, 1 3/4", Stainless
- cup, brake cover
2шт.
22
A50113
GASKET
- valve base
1шт.
24
A50058
GASKET
- high-low clutch shaft, rear cover, additional seals not included in G102662 kit
2шт.
25
T11032
O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro
- range gear housing, additional seals not included in G102662 kit
2шт.
23
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- plug, front cover, additional seals not included in G102662 kit
1шт.
Выбрано товаров: 30
