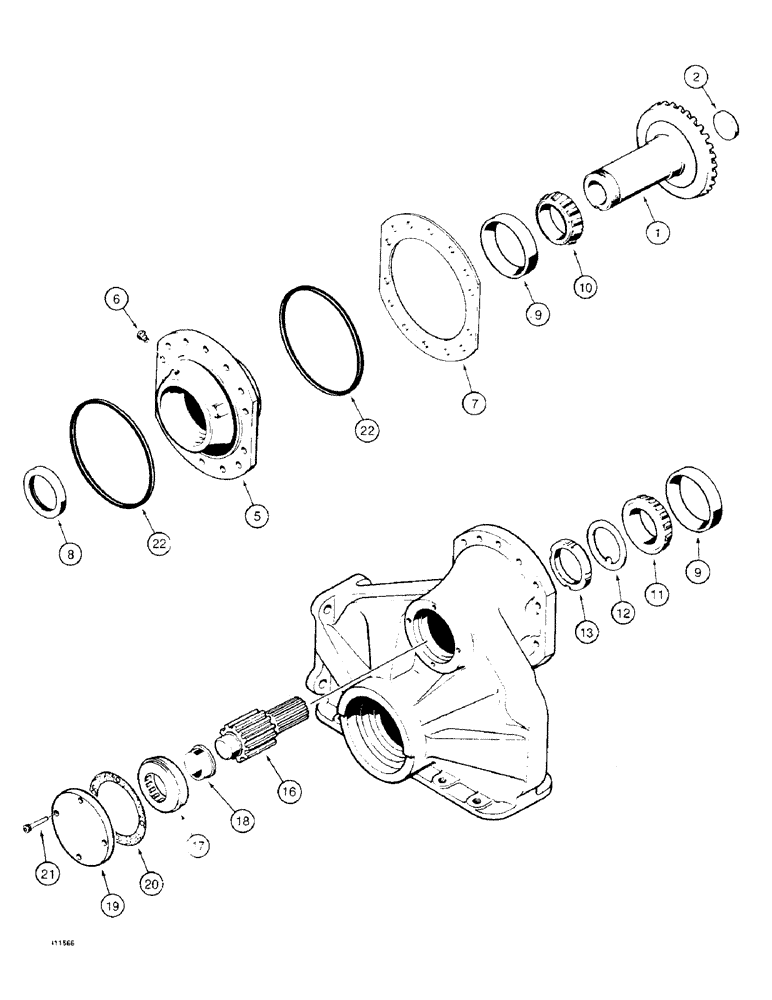

Запчасти Case 475 (168) - TRANSMISSION PINION GEAR AND SHAFT (21) - TRANSMISSION

1

NSS

NOT SOLD SEPARAT

PINION GEAR - see figure 160, Ref. 1

2шт.

2

A50099

PLUG

- special

2шт.

5

A50193

CARRIER

- pinion gear

2шт.

6

A50096

VALVE

RELIEF VALVE - carrier

2шт.

7

A50199

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

7

A50198

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

8

A50419

OIL SEAL

OIL SEAL - carrier

2шт.

9

F9803

BEARING CUP

CUP - tapered roller bearing, inner and outer

4шт.

10

F9804

ROLLER BEARING

TAPERED ROLLER BEARING - inner

2шт.

11

A50197

ROLLER BEARING,3" ID x 0.906"

TAPERED ROLLER BEARING - outer

2шт.

12

A50103

WASHER

- keyed, bearing retaining

2шт.

13

A50167

NUT

- lock, pinion gear

2шт.

16

A50143

SHAFT

PINION SHAFT - final drive

2шт.

17

A50145

BEARING, ROLLER, CYL,45mm ID x 100mm OD x 25.01mm W

ROLLER BEARING - pinion shaft

2шт.

18

A50144

ROLLER BEARING,44.99mm ID x 25mm W

RACE - roller bearing, pinion shaft

2шт.

19

A50345

COVER

- pinion shaft

2шт.

20

A50346

GASKET

- cover

2шт.

21

61-612

HEX SOC SCREW,3/8"-16 x 3/4"

SCREW - hex socket head, 3/8" - 16 NC x 3/4"

6шт.

22

A50108

SEALING RING

RING - seal, carrier

4шт.
