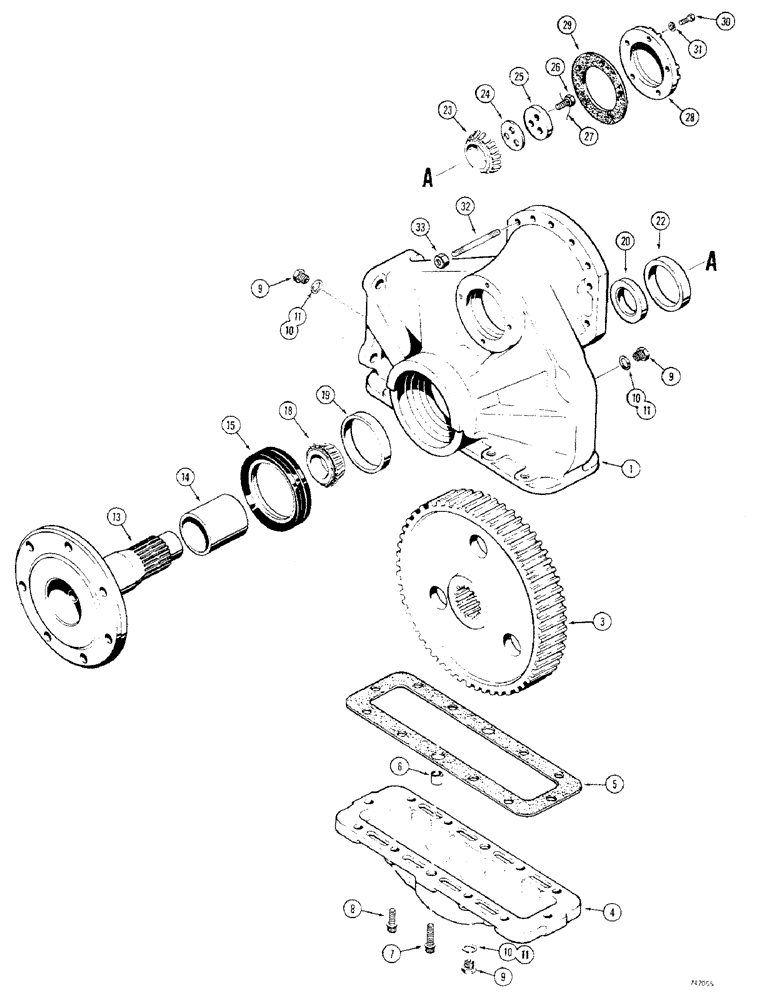

Запчасти Case 475 (166) - TRANSMISSION FINAL DRIVE (21) - TRANSMISSION

G101520

DRIVE

FINAL DRIVE - right-hand

1шт.

G101521

DRIVE

FINAL DRIVE - left-hand, Includes: Refs. 1-31

1шт.

1

A50564

HOUSING

- G101520 final drive

1шт.

1

A50565

HOUSING

- G101521 final drive

1шт.

3

G101531

GEAR

- final drive

1шт.

4

A136860

COVER

- bottom, final drive

1шт.

5

A50218

GASKET

- cover

1шт.

6

A50011

SLEEVE

- dowel, cover locating

2шт.

7

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

SCREW - Ferry head, 12 point, 1/2" - 13 NC x 1-3/4"

2шт.

8

166-86

12 PT SCREW,Flg, 1/2" - 13 x 1 1/4", Gr 8

SCREW - Ferry head, 12 point, 1/2" - 13 NC x 1-1/4"

10шт.

9

A50014

PLUG

- housing, fill and frain

3шт.

10

A58608

GASKET

- felt, use G102141 washer for service

3шт.

11

G102141

SEALING WASHER

WASHER - copper

3шт.

13

G101530

SHAFT

- final drive

1шт.

14

A50566

SPACER

- shaft, long

1шт.

15

G101798

SEAL

FACE SEAL - final drive shaft

1шт.

18

A50100

ROLLER BEARING,82.55mm ID x 25.4mm W

TAPERED ROLLER BEARING - outer

1шт.

19

A27146

BEARING, CUP,125.41mm OD x 19.84mm W

CUP - tapered roller bearing, outer

1шт.

20

A50215

RING

SPACER - shaft, short

1шт.

22

A50179

BEARING CUP

CUP - tapered roller bearing, inner

1шт.

23

G10414

ROLLER BEARING

TAPERED ROLLER BEARING - inner

1шт.

24

R21741

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

24

R21742

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

24

R21743

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

25

G102108

PLATE

- retaining

1шт.

26

A31107

BOLT

- special, 1/2" - 13 NC x 1-1/4"

3шт.

27

391-804

ELECTRICAL WIRE

WIRE - tie, bolt

1шт.

28

A50140

COVER

- shaft

1шт.

29

A50139

GASKET

- cover

1шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

31

92-6

LOCK WASHER,3/8"

5шт.

32

G102017

STUD

- 1/2" - 13 NC x 3"

28шт.

33

88871

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

28шт.
