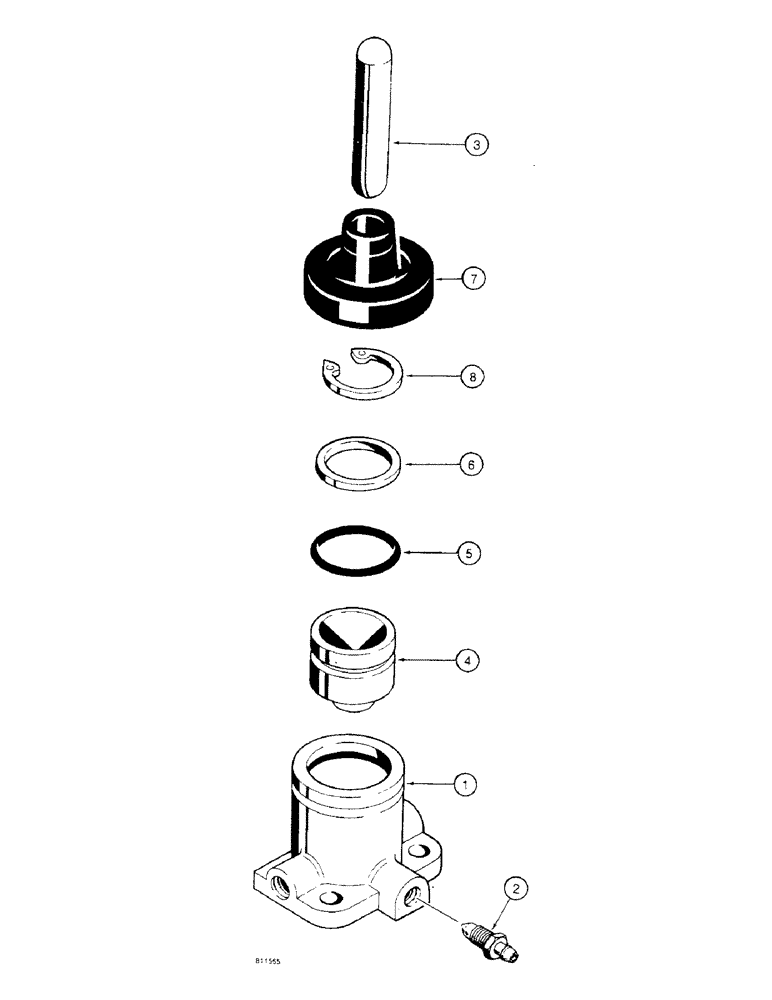

Запчасти Case 475 (164) - TRANSMISSION BRAKE CYLINDER (21) - TRANSMISSION

G103628

BRAKE

CYLINDER ASSEMBLY - brake, Includes: Refs. 1-8

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder assembly

1шт.

2

A41491

BLEEDER,1/4" - 28 x 23.37mm

- cylinder relief

1шт.

3

A41489

ROD

- cylinder actuating

1шт.

4

A42874

PISTON

- cylinder

1шт.

5

A42876

SEAL

O-RING - piston

1шт.

6

A42877

RING

BACKUP RING - piston O-ring

1шт.

7

G103629

BOOT

- brake cylinder

1шт.

8

A30975

SNAP RING,1.188", Int, #118

piston 1.188", Int, #118

1шт.
