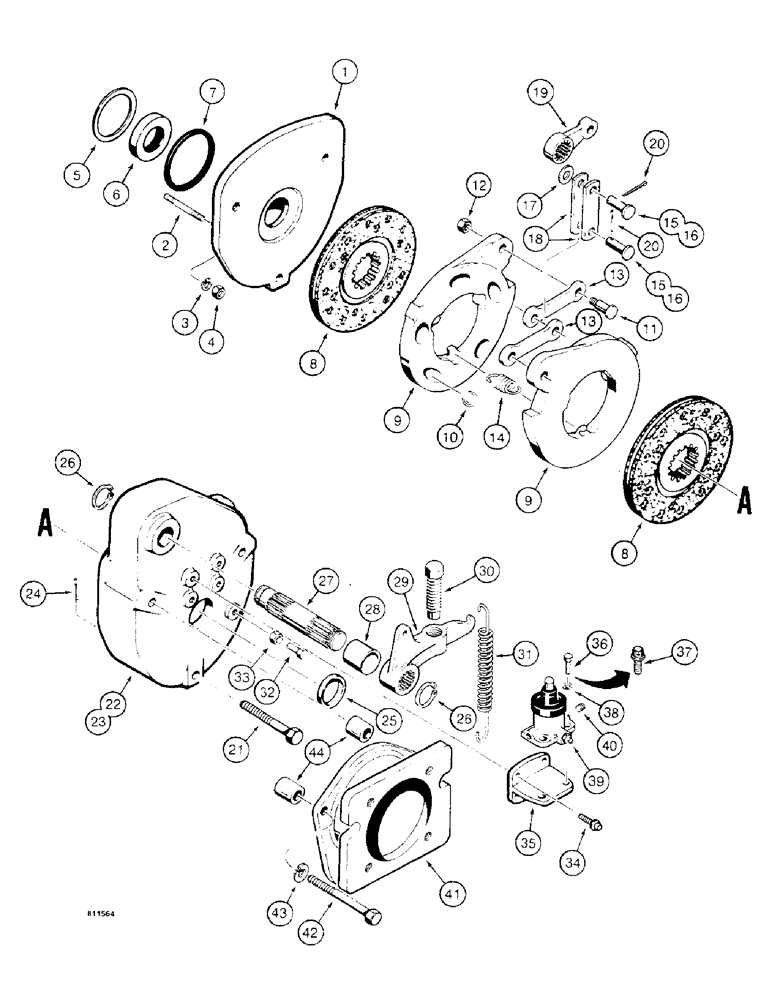

Запчасти Case 475 (162) - TRANSMISSION BRAKES, (LEFT-HAND BRAKE ASSEMBLY SHOWN) (21) - TRANSMISSION

1

A50184

FLANGE

PLATE - mounting

2шт.

2

G102110

BOLT

- 1/2" - 13 NC x 2"

8шт.

3

92-8

LOCK WASHER,1/2"

8шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

5

A50061

SHIM,0.076mm Thk

(.003") 0.076mm Thk

1шт.

Part of Seal Kit P/N G102662

1шт.

5

A50062

SHIM,0.127mm Thk

(.005") 0.127mm Thk

1шт.

Part of Seal Kit P/N G102662

1шт.

5

A50063

SHIM,0.254mm Thk

(.010") 0.254mm Thk

1шт.

Part of Seal Kit P/N G102662

1шт.

6

A50418

OIL SEAL

OIL SEAL - brake

2шт.

Part of Seal Kit P/N G102662

1шт.

7

A50055

SEALING RING

RING - seal, brake plate

2шт.

Part of Seal Kit P/N G102662

1шт.

G100317

BRAKE

ASSEMBLY - transmission, Includes: Refs. 8-14

2шт.

8

G100318

BRAKE DISC

DISC - bonded

4шт.

R18531

DISC

ACTUATOR ASSEMBLY - brake, Includes: Refs. 9-14

1шт.

9

A50148

DISC

PLATE - brake

2шт.

10

211-19

BALL,7/8" Dia

- steel, meter 7/8" Dia

5шт.

11

A30898

STEP BOLT

BOLT - special, shoulder

2шт.

12

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, 5/16" - 24 NF

2шт.

13

R18533

LINK

- flat

2шт.

14

A155624

SPRING

- brake actuating

3шт.

15

R15370

PIN

CLEVIS PIN - 15/16" (24 MM) long, no longer used, service with G105353 clevis pin, 195-29 washer and 132-380 cotter pin

4шт.

16

G105353

PIN,11.07mm OD x 29.97mm L

CLEVIS PIN - 1-1/32" (26 MM) long

4шт.

17

195-29

WASHER,7/16"

- flat, 7/16"

4шт.

18

R15369

LINK

- pull

4шт.

19

R15372

LEVER

- brake

2шт.

20

132-380

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), , Stainless steel 3/32" x 3/4"

4шт.

21

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

22

A50206

COVER

- brake, right-hand

1шт.

23

A50207

COVER

- brake, left-hand

1шт.

24

R14605

PIN

- brake housing drain hole

4шт.

25

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup, brake cover

2шт.

Part of Seal Kit P/N G102662

1шт.

26

B18208

SNAP RING,#100, Ext

shaft #100, Ext

4шт.

27

A50514

SHAFT

- brake actuating

2шт.

28

A50392

BUSHING

SPACER - shaft

2шт.

29

A50393

LEVER

- actuating

2шт.

30

A50395

ADJUSTMENT SCREW,Locking, 3/4" - 16 x 2.75"

BOLT - self-locking, 3/4" - 16 NF x 2-3/4"

2шт.

31

A50589

SPRING

- brake lever return

2шт.

32

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

33

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

34

166-45

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

SCREW - Ferry head, 12 point, 3/8" - 16 NC x 2"

8шт.

35

A50119

BRACKET

- brake cylinder

2шт.

36

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

If used Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

37

166-4

12 PT SCREW,Flg, 1/4" - 20 x 3/4", Gr 8

SCREW - Ferry head, 12 point, 1/4" - 20 NC x 3/4", if used

4шт.

38

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

39

G103628

BRAKE

CYLINDER - brake, parts list figure 164

2шт.

40

222-1062

PLUG,7/16"-24, Inv Fl

hex 7/16"-24, Inv Fl

2шт.

41

REF

INSTRUCTION

ADAPTER - hydrostatic motor, see figure 128, Ref. 34

1шт.

42

13-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

43

92-8

LOCK WASHER,1/2"

2шт.

44

R24325

SPACER

- adapter

2шт.

G102662

SEAL

KIT - seal, Includes: all Ref. 5's, Ref. 6, 7, and 25, see Figure 174 for complete kit

1шт.
