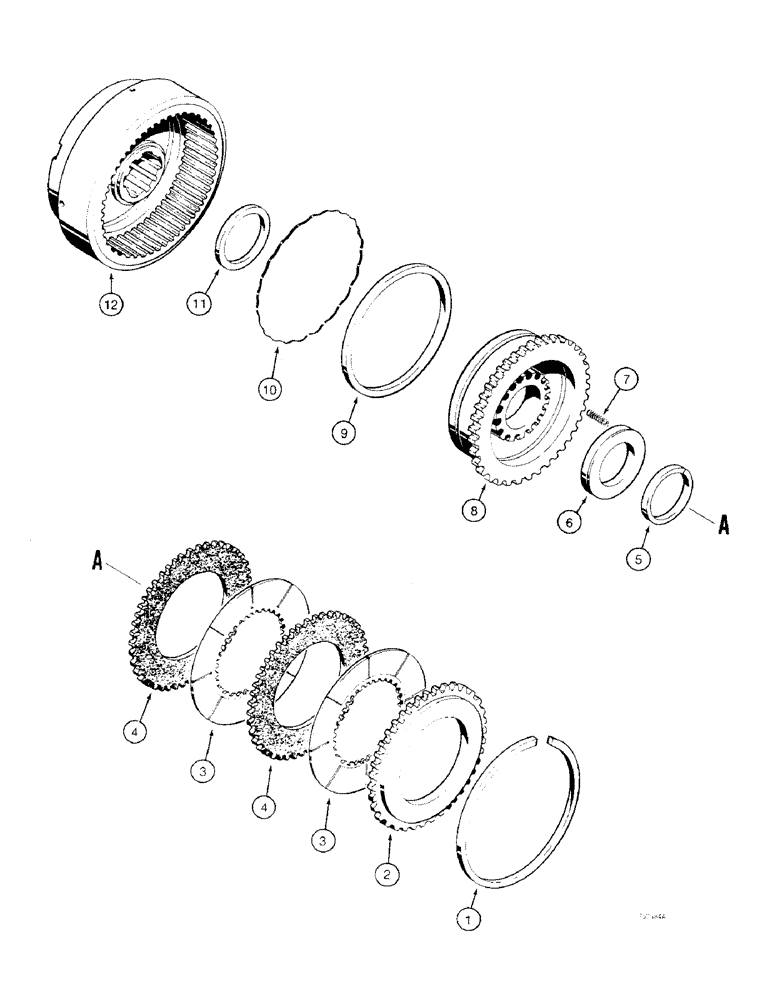

Запчасти Case 475 (158) - TRANSMISSION HIGH AND LOW SPEED CLUTCHES (21) - TRANSMISSION

A50412

CLUTCH

ASSEMBLY - for replacement order G102375 clutch, Includes: Refs. 1-12

4шт.

1

30785

RING

SNAP RING - clutch assembly

1шт.

2

A50030

PLATE

- clutch backing

1шт.

3

A50029

PLATE

FRICTION DISC - internal teeth

2шт.

A50029 and A50028 may be serviced as sets with G102354 and G101711. Never mix A50029 or A50028 with G102354 or G101711.

1шт.

4

A50028

PLATE

DISC - steel, external teeth, 5/32" (4.0 mm) steel core

2шт.

A50029 and A50028 may be serviced as sets with G102354 and G101711. Never mix A50029 or A50028 with G102354 or G101711.

1шт.

5

A27233

RING

SNAP RING - spring retainer

1шт.

6

R11016

RETAINER

- clutch spring

1шт.

7

A51825

SPRING

- clutch

18шт.

8

A50571

PISTON

- clutch, aluminum

1шт.

9

A50414

SEALING RING

RING - seal, piston

1шт.

Part of Clutch Seal Kit P/N G102663.

1шт.

10

G102095

SPRING

- wave

1шт.

Part of Clutch Seal Kit P/N G102663.

1шт.

11

A50415

SEAL

- drum

1шт.

Part of Clutch Seal Kit P/N G102663.

1шт.

12

A50288

DRUM

- clutch

1шт.

G102375

CLUTCH

ASSEMBLY - high and low speed, Includes: Refs. 1-12

4шт.

1

30785

RING

SNAP RING - clutch assembly

1шт.

2

A50030

PLATE

- clutch backing, no longer used, service with G103391 plate

1шт.

2

G103391

PLATE

- clutch backing

1шт.

3

G102354

PLATE

FRICTION DISC - internal teeth

2шт.

4

G101711

PLATE

DISC - steel, external teeth, 1/8" (3.2") steel core

2шт.

5

A27233

RING

SNAP RING - spring retainer

1шт.

6

R11016

RETAINER

- clutch spring

1шт.

7

A51825

SPRING

- clutch

18шт.

8

A50571

PISTON

- clutch, aluminum

1шт.

9

A50414

SEALING RING

RING - seal, piston

1шт.

Part of Clutch Seal Kit P/N G102663.

1шт.

10

G102095

SPRING

- wave

1шт.

Part of Clutch Seal Kit P/N G102663.

1шт.

11

A50415

SEAL

- drum

1шт.

Part of Clutch Seal Kit P/N G102663.

1шт.

12

A50288

DRUM

- clutch

1шт.

G102663

KIT

- clutch seal, Refs. 9, 10 and 11, six each

1шт.
