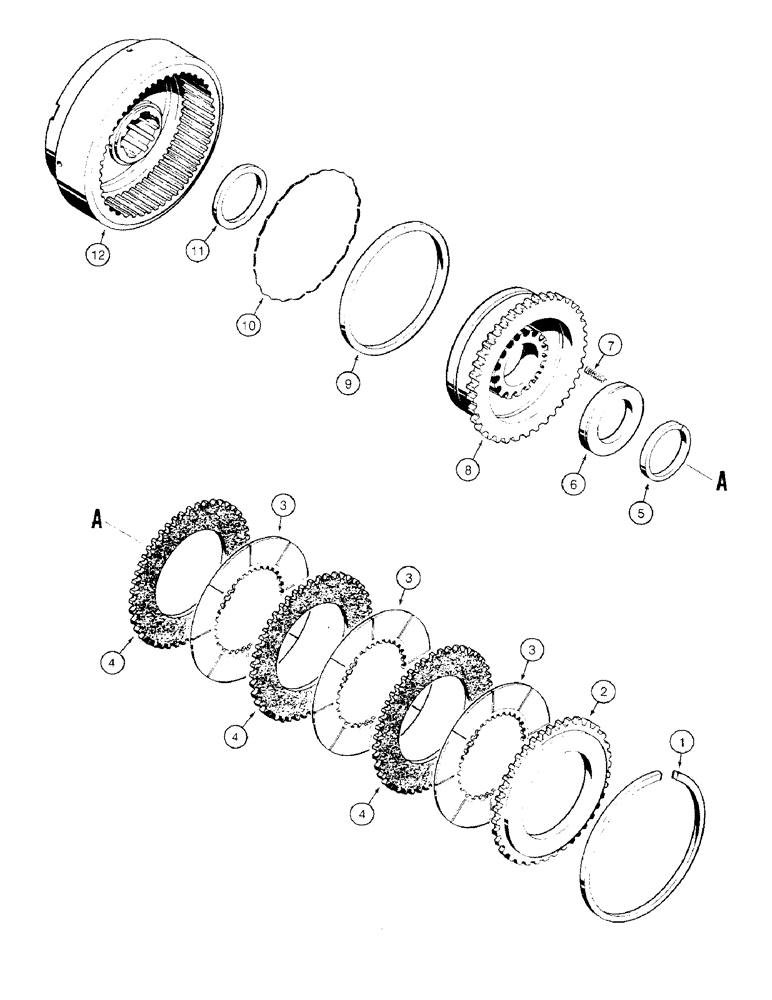

Запчасти Case 475 (156) - TRANSMISSION FORWARD AND REVERSE CLUTCHES (21) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
A50411
CLUTCH
ASSEMBLY - for replacement order G102376 clutch, Includes: Refs. 1-12
2шт.
1
30785
RING
SNAP RING - clutch assembly
1шт.
2
A50030
PLATE
- clutch backing
1шт.
3
A50029
PLATE
FRICTION DISC - internal teeth
3шт.
A50029 and A50028 may be serviced as sets with G102354 and G101711. Never mix A50029 or A50028 with G102354 or G101711.
1шт.
4
A50028
PLATE
DISC - steel, external teeth, 5/32" (4.0 mm) steel core
3шт.
A50029 and A50028 may be serviced as sets with G102354 and G101711. Never mix A50029 or A50028 with G102354 or G101711.
1шт.
5
A27233
RING
SNAP RING - spring retainer
1шт.
6
R11016
RETAINER
- clutch spring
1шт.
7
A51825
SPRING
- clutch
18шт.
8
A50571
PISTON
- clutch, aluminum
1шт.
9
A50414
SEALING RING
RING - seal, piston
1шт.
Part of Clutch Seal Kit P/N G102663.
1шт.
10
G102095
SPRING
- wave
1шт.
Part of Clutch Seal Kit P/N G102663.
1шт.
11
A50415
SEAL
- drum
1шт.
Part of Clutch Seal Kit P/N G102663.
1шт.
12
A50290
DRUM
- clutch
1шт.
G102376
CLUTCH
ASSEMBLY - forward and reverse, Includes: Refs. 1-12
2шт.
1
30785
RING
SNAP RING - clutch assemby
1шт.
2
A50030
PLATE
- clutch backing, no longer used, service with G103391 plate
1шт.
2
G103391
PLATE
- clutch backing
1шт.
3
G102354
PLATE
FRICTION DISC - internal teeth
3шт.
4
G101711
PLATE
DISC - steel, external teeth, 1/8" (3.2 mm) steel core
3шт.
5
A27233
RING
SNAP RING - spring retainer
1шт.
6
R11016
RETAINER
- clutch spring
1шт.
7
A51825
SPRING
- clutch
18шт.
8
A50571
PISTON
- clutch, aluminum
1шт.
9
A50414
SEALING RING
RING - seal, piston
1шт.
Part of Clutch Seal Kit P/N G102663.
1шт.
10
G102095
SPRING
- wave
1шт.
Part of Clutch Seal Kit P/N G102663.
1шт.
11
A50415
SEAL
- drum
1шт.
Part of Clutch Seal Kit P/N G102663.
1шт.
12
A50290
DRUM
- clutch
1шт.
G102663
KIT
- clutch seal, Refs. 9, 10 and 11, six each
1шт.
Выбрано товаров: 36
