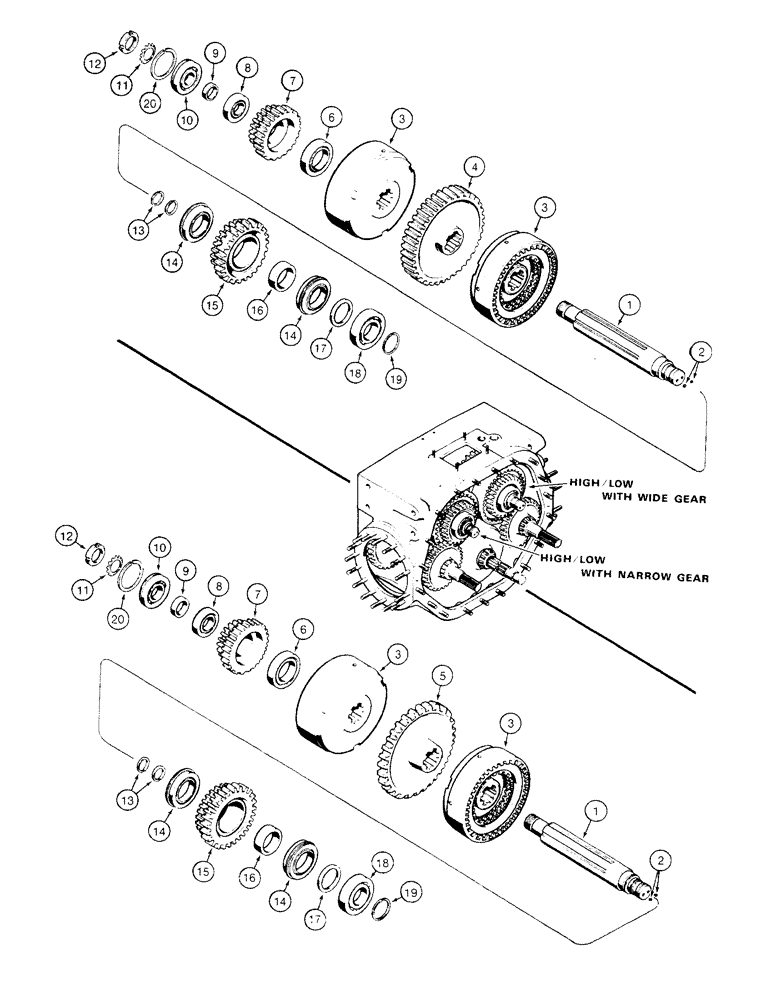

Запчасти Case 475 (154) - TRANSMISSION HIGH-LOW CLUTCHES AND SHAFTS (21) - TRANSMISSION

1

A50521

SHAFT

ASSEMBLY - high and low clutches, Includes: Ref. 2

2шт.

2

211-7

BALL,1/4" Dia

steel 1/4" Dia

2шт.

3

REF

INSTRUCTION

CLUTCH ASSEMBLY - high-low, see figure 158 for the correct assembly and components

4шт.

4

A50508

GEAR

DRIVE GEAR - right-hand, wide

1шт.

5

A50511

GEAR

DRIVE GEAR - left-hand, narrow

1шт.

6

G10418

BEARING, BALL

BALL BEARING - low clutch drive gear, inner

2шт.

7

A50574

SHAFT

DRIVE GEAR - low clutch

2шт.

8

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

BALL BEARING - low clutch drive gear, outer

2шт.

9

A50036

RING

SPACER - bearings, low clutch drive gear

2шт.

10

40031

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

BALL BEARING - clutch shaft, rear

2шт.

11

192-307

LOCK WASHER,Type W-07

WASHER - bearing lock, 3-1/2" (89 MM) ID

2шт.

12

131-1007

LOCK NUT,Bearing, 1.3780" Bore

NUT - lock, bearing

2шт.

13

A50389

SEAL

- shaft

4шт.

Part of Seal Kit P/N G102662

1шт.

14

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

BALL BEARING - high clutch gear

4шт.

15

A50509

GEAR WHEEL

DRIVE GEAR - high clutch

2шт.

16

A50035

BUSHING

SPACER - bearings, high clutch gear

2шт.

17

A50034

SPACER

- front bearing, clutch shaft

2шт.

18

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

- front, clutch shaft

2шт.

19

A50033

SNAP RING,#177, 1.657", Ext

- front bearing, clutch shaft

2шт.

20

A28153

RING

SNAP RING - rear ball bearing

2шт.

G102662

SEAL

KIT - seal, Includes: Ref. 13, see Figure 174 for complete kit

1шт.
