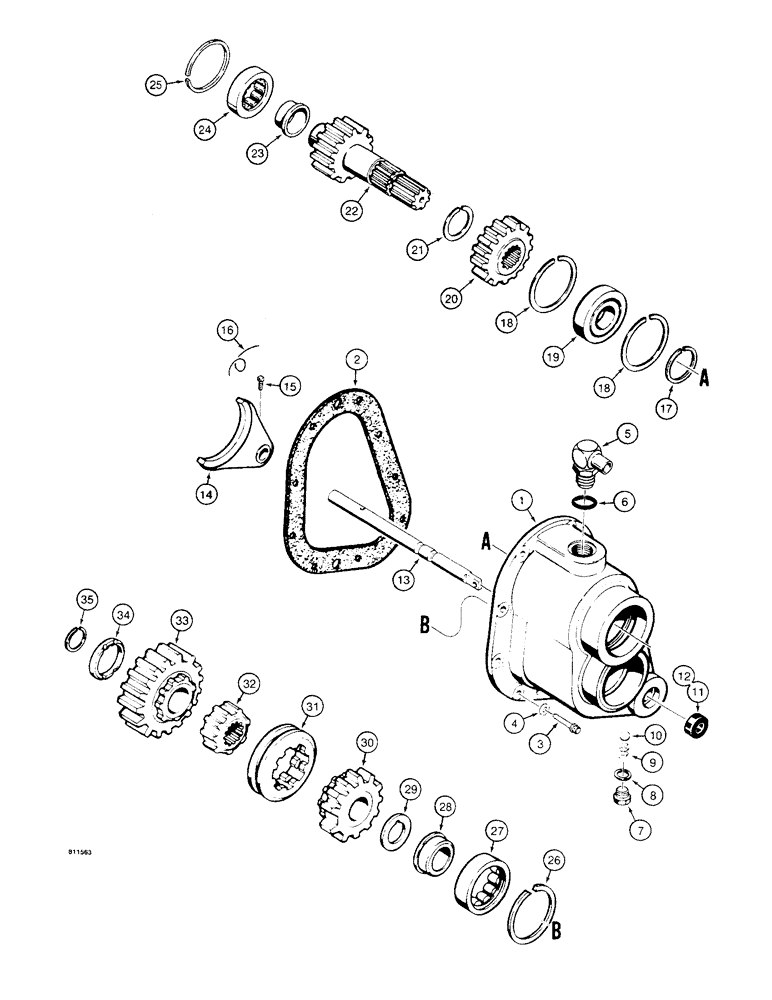

Запчасти Case 475 (150) - TRANSMISSION RANGE SHIFT (21) - TRANSMISSION

1

NSS

NOT SOLD SEPARAT

HOUSING - range shift, see figure 146 for service

1шт.

2

A50269

GASKET

- range gear housing

1шт.

Part of Seal Kit P/N G102662

1шт.

3

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - Ferry head, 3/8" - 16 NC x 1-1/4"

9шт.

4

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

9шт.

Part of Seal Kit P/N G102662

1шт.

5

217-363

FITTING,90 Degree Elbow, 5/8" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 5/8" Hose x 1 1/16"-12 ORB Beaded, Adjustable, Oil return, Includes Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

Part of Seal Kit P/N G102662

1шт.

7

A50094

PLUG,Screw, 5/8" - 18 x 0.377"

- range selector detent

1шт.

8

A50093

SEALING WASHER

WASHER - detent plug

1шт.

Part of Seal Kit P/N G102662

1шт.

9

A50092

SPRING

- range selector detent

1шт.

10

211-13

BALL,1/2" Dia

- steel, detent 1/2" Dia

1шт.

11

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- selector shaft, no longer used, order G105118 seal

1шт.

Part of Seal Kit P/N G102662

1шт.

12

G105118

OIL SEAL

- selector shaft, double lip

1шт.

Part of Seal Kit P/N G102662

1шт.

13

A51886

SHAFT

- range selector

1шт.

REF: 13 - A51886 - shaft - this shaft is no longer available. order G107672 shaft and fork.

1шт.

14

G106366

SHAFT ASSY.

FORK - range selector

1шт.

REF: 14 - G106366 - fork - this fork is no longer available. order G107672 shaft and fork.

1шт.

15

A7044

SET SCREW,3/8" - 16 x 7/8"

- shaft

1шт.

16

391-804

ELECTRICAL WIRE

WIRE - tie, screw

1шт.

17

A37626

SNAP RING,#137, 1.291", Ext

- small, outer

1шт.

18

R13804

RING

SNAP RING - large, ball bearing

2шт.

19

A26537

BALL BEARING,34.99mm ID x 80mm OD x 21mm W

- input shaft

1шт.

20

A50515

GEAR

DRIVE GEAR - input shaft, A51897 transmission

1шт.

20

A51927

GEAR WHEEL

DRIVE GEAR - input shaft, A51926 transmission

1шт.

21

R15364

SNAP RING,#152, 1.527", Ext

- input shaft, inner

1шт.

22

A54119

SHAFT

INPUT SHAFT - transmission

1шт.

23

A50077

BEARING CONE,1.1811" ID x 0.748"

RACE - roller bearing, inner

1шт.

24

A50255

BEARING, ROLLER, CYL,2.8359" OD x 0.748"

ROLLER BEARING - input shaft

1шт.

25

A27417

RING

SNAP RING - roller bearing, upper

1шт.

26

R13804

RING

SNAP RING - roller bearing, lower

1шт.

27

A50258

ROLLER BEARING,3.1510" OD x 0.8268"

- shaft, lower

1шт.

28

A50332

BEARING CONE,1.25" ID x 0.8268"

RACE - roller bearing, inner

1шт.

29

A50333

WASHER

THRUST WASHER - drive gear, lower

1шт.

30

A50516

GEAR WHEEL

DRIVE GEAR - low, A51897 transmission

1шт.

30

A51928

GEAR

DRIVE GEAR - low, A51926 transmission

1шт.

31

A51806

COLLAR

- range selector

1шт.

32

A50502

COLLAR

COUPLING - gears

1шт.

33

A50517

GEAR

DRIVEN GEAR - high

1шт.

34

A50071

WASHER

THRUST WASHER - driven gear

1шт.

35

A26946

RING

SNAP RING - driven gear

1шт.

G102662

SEAL

KIT - seal, Includes: Ref. 2, 4, 6, 8, 11 and 12, see figure 174 for complete kit

1шт.
