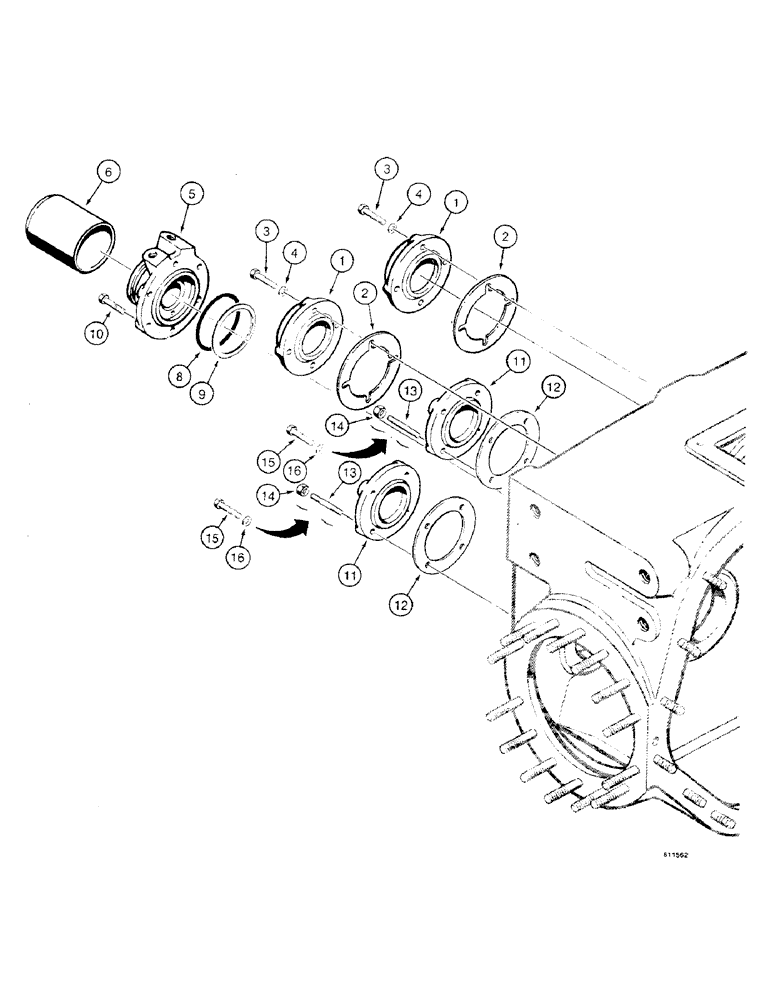

Запчасти Case 475 (148) - TRANSMISSION REAR COVERS (21) - TRANSMISSION

1

A50060

COVER

- clutch shafts

2шт.

2

A50058

GASKET

- clutch covers

2шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

8шт.

4

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

8шт.

Part of Seal Kit P/N G102662

1шт.

5

A50578

COVER

- transmission drive shaft, inner, uses 13-616 bolts, no longer available, order G102243 cover, five 13-620 bolts and one 13-632 bolt

1шт.

5

G102243

COVER

- transmission drive shaft, inner, uses 13-620 and 13-632 bolts

1шт.

6

G101696

PROTECTIVE COVER

COVER - PTO shaft

1шт.

8

A50055

SEALING RING

- square, inner drive shaft cover

1шт.

Part of Seal Kit P/N G102662

1шт.

9

A50053

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

Part of Seal Kit P/N G102662

1шт.

9

40590

SHIM

- .005" (0.127 MM) thick

1шт.

Part of Seal Kit P/N G102662

1шт.

9

40591

SHIM

- .010" (0.254 MM) thick

1шт.

Part of Seal Kit P/N G102662

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

A50578 cover Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

G102243 cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

5шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

G102243 cover Hex, 3/8"-16 x 2", G5

1шт.

11

A50271

COVER

- pinion shafts

2шт.

12

A50348

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

Part of Seal Kit P/N G102662

1шт.

12

A50272

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of Seal Kit P/N G102662

1шт.

12

CASA50347

SHIM

- .010" (0.254 MM) thick

1шт.

Part of Seal Kit P/N G102662

1шт.

13

G102128

BOLT

- 3/8" - 16 NC x 1-1/2", no longer used, service with 13-620 bolts and D32117 washers

8шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, no longer used

8шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

16

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

8шт.

Part of Seal Kit P/N G102662

1шт.

G102662

SEAL

KIT - seal, Includes: Ref 4, 8, all Ref. 9's, all Ref. 12's and Ref. 16, see Figure 174 for complete kit

1шт.
