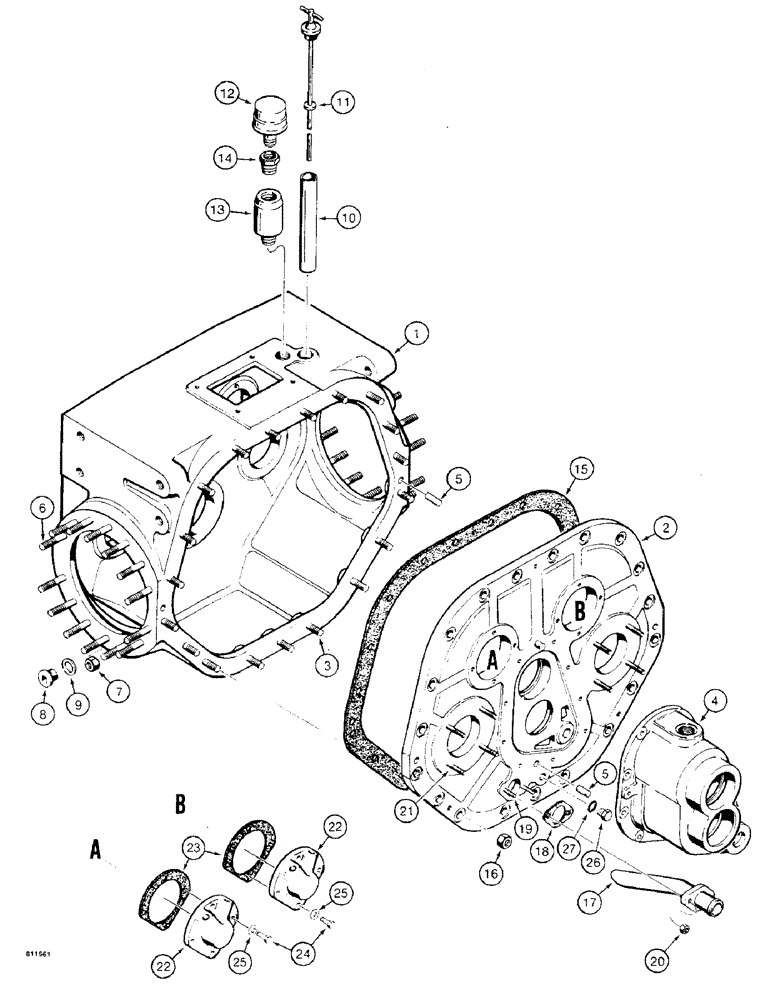

Запчасти Case 475 (146) - TRANSMISSION HOUSING AND FRONT COVERS (21) - TRANSMISSION

A51897

TRANSMISSION ASSEMBLY - complete, before transmission SN 2791295, parts list figures 146 - 172

1шт.

A51926

TRANSMISSION ASSEMBLY - complete, transmission SN 2791295 and after, parts list figures 146 - 172

1шт.

A51273

HOUSING

ASSEMBLY - A51897 transmission

1шт.

G35208

HOUSING

ASSEMBLY - A51926 transmission, Includes: Refs. 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - transmission

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - housing, front

1шт.

3

A50249

STUD

- 9/16" - 12 NC x 2-3/8"

19шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - range gear

1шт.

5

A50247

DOWEL

PIN - 1/2" x 1-1/4"

4шт.

6

G102017

STUD

- 1/2" - 13 NC x 3"

28шт.

7

88871

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

28шт.

8

R14777

PLUG

DRAIN PLUG - transmission housing

1шт.

9

A58613

SEALING WASHER

WASHER - special

1шт.

Part of Seal Kit P/N G102662

1шт.

10

A50018

TUBE

- oil level gauge

1шт.

11

A50225

DIPSTICK

- oil level gauge

1шт.

12

A27173

BREATHER

- transmission

1шт.

13

A50116

BAFFLE

- breather

1шт.

14

221-58

BUSHING,Hex, 3/4" x 1/4" NPT

REDUCER - 3/4" NPT to 1/4" NPT

1шт.

15

G35334

GASKET

- front, Serial Range: cover-housing

1шт.

Part of Seal Kit P/N G102662

1шт.

16

232-4119

LOCK NUT,9/16"-12, GC

NUT - hex, self-locking, 9/16" - 13 NC

19шт.

17

A50110

TUBE

- oil suction

1шт.

18

A50109

GASKET

- tube

1шт.

Part of Seal Kit P/N G102662

1шт.

19

A50362

STUD

- 3/8" - 16 NC x 1-3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

21

G102110

BOLT

- 1/2" - 13 NC x 2"

8шт.

22

A50057

COVER

- oil inlet, high-low clutch shafts, uses 13-618 bolts, no longer available, order G102244 covers and 13-620 bolts

2шт.

22

G102244

COVER

- oil inlet, high-low clutch shafts, uses 13-620 bolts

2шт.

23

A50056

GASKET

- front inlet cover

2шт.

Part of Seal Kit P/N G102662

1шт.

24

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

8шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

25

D32117

COPPER WASHER

WASHER, COPPER

8шт.

Part of Seal Kit P/N G102662

1шт.

26

214389

PLUG,3/4" - 16 ORB

Includes Refs. 27 Hex Hd, 3/4"-16 ORB

1шт.

G102662

SEAL

KIT - seal, Includes: Ref. 9, 15, 18, 23 and 25, see figure 174 for complete kit

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.
