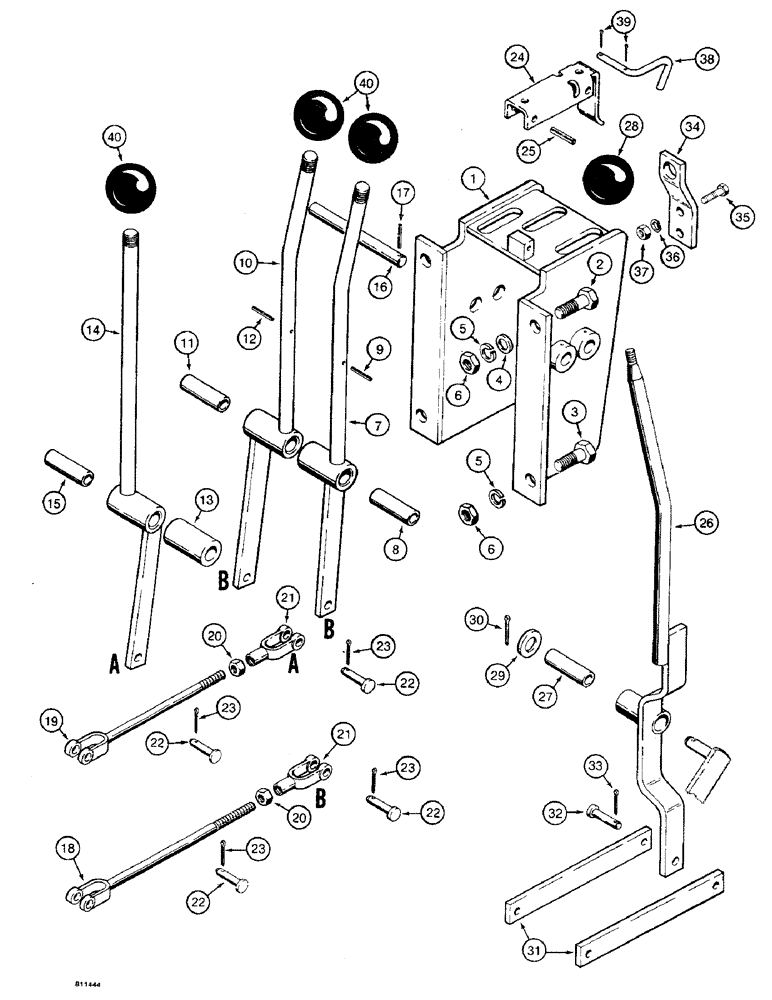

Запчасти Case 475 (110) - TRANSMISSION CONTROLS AND CONTROL TOWER (21) - TRANSMISSION

1

R31299

CONTROL TOWER - transmission controls

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

4

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

7

R31307

LEVER

CONTROL LEVER - right hand track, Includes: Ref. 8

1шт.

8

R26338

BUSHING

- control lever

1шт.

9

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

10

R31306

LEVER ASSY.

CONTROL LEVER - left-hand track, Includes: Ref. 11

1шт.

11

R26338

BUSHING

- control lever

1шт.

12

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

13

R42337

SLEEVE

SPACER - control lever

1шт.

14

D50240

LEVER

CONTROL LEVER - forward and reverse, Includes: Ref. 15

1шт.

15

R26338

BUSHING

- control lever

1шт.

16

D34898

SHAFT

- control levers

2шт.

17

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

18

R17963

ROD - control, right-hand and left-hand

2шт.

19

R24415

ROD - control, center

1шт.

20

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

3шт.

21

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - adjustable, 5/16" - 24 NF

3шт.

22

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

6шт.

23

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

6шт.

24

R31303

COVER

LOCK - neutral start

1шт.

25

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

26

R24418

CONTROL LEVER - two-speed, Includes: Ref. 27

1шт.

27

R26338

BUSHING

- control lever

1шт.

28

70213

KNOB

- control lever

1шт.

29

195-41

WASHER,5/8"

1шт.

30

132-69

COTTER PIN,5/32" x 1"

PIN, Split (Cotter), 5/32" x 1"

1шт.

31

R24426

LINK - two-speed control, Serial Range: lever-transmission

2шт.

32

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

33

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

2шт.

34

R31304

BRACKET

- neutral start switch

1шт.

35

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

36

92-5

LOCK WASHER,5/16"

2шт.

37

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

38

R31454

LOCK

LATCH - neutral start lock

1шт.

39

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

40

D49996

KNOB

- control lever

3шт.
