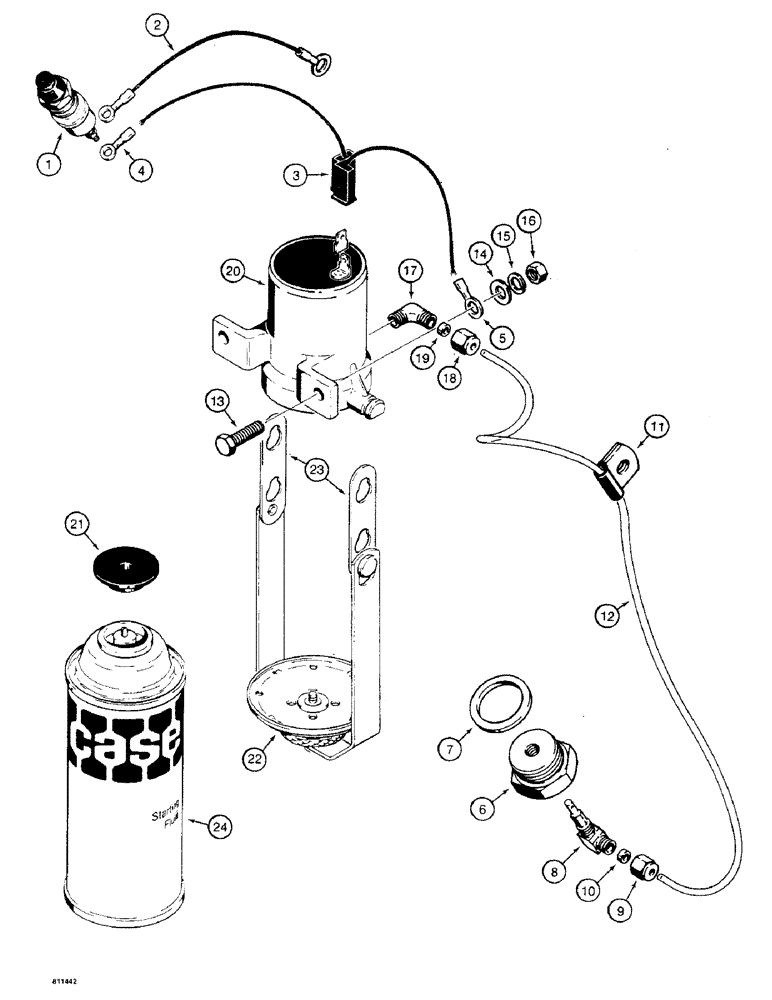

Запчасти Case 475 (106) - COLD START SYSTEM, USED ON TRACTOR SN 3062901 AND AFTER (10) - ENGINE

1

D34924

SWITCH

- push button

1шт.

2

F21342

ELECTRICAL WIRE

WIRE - jumper

1шт.

3

R29794

CABLE

-, Serial Range: switch-solenoid

1шт.

4

NSS

NOT SOLD SEPARAT

TERMINAL - eyelet, no. 10 ID, obtain locally

1шт.

5

NSS

NOT SOLD SEPARAT

TERMINAL - eyelet, 5/16" ID, obtain locally

1шт.

6

L10283

PLUG

- manifold

1шт.

7

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

8

R36920

INJECTOR ASSY.

INJECTOR - ether, Includes: Refs. 9, 10

1шт.

9

222-110

TUBE NUT,3/8"-24

NUT - compression

1шт.

10

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

11

D43839

CLAMP

- tube

1шт.

12

REF

INSTRUCTION

TUBE - nylon, 24" (610 MM) long, cut from F12417 tube

1шт.

See below for F12417 tube

1шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

14

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

A143381

SOLENOID

ASSEMBLY - ether injection, Includes: Refs. 17-22

1шт.

17

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1шт.

18

222-110

TUBE NUT,3/8"-24

NUT - compression

1шт.

19

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

20

NSS

NOT SOLD SEPARAT

SOLENOID - ether injection

1шт.

21

R30786

GASKET

- can

1шт.

22

R30785

BAIL

BRACKET - can

1шт.

23

R30812

LINK

- extension

2шт.

24

B17072

START SPRAY FLUID

STARTING FLUID - 16 fluid ounces (473 ML)

1шт.

F12417

PIPE

TUBE - nylon, 1/8" (3 MM) OD x 10 ft. (305 cm) long

1шт.
