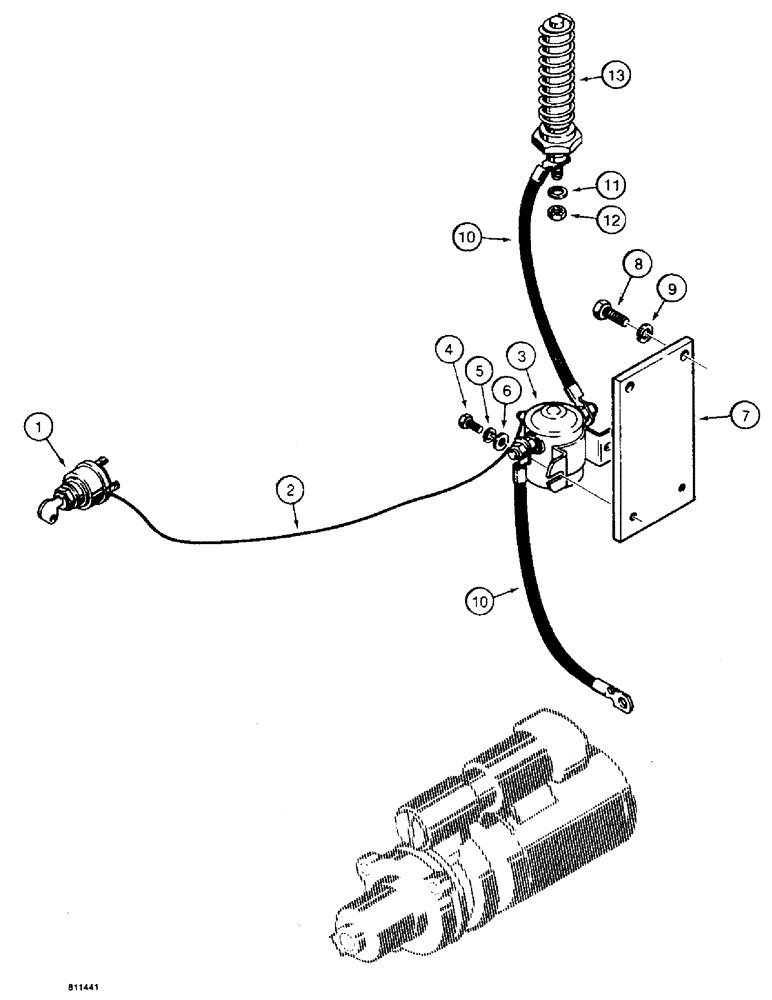

Запчасти Case 475 (104) - ENGINE PREHEATER, USED BEFORE TRACTOR SN 3062901 (10) - ENGINE

1

D35092

SWITCH

KEY SWITCH ASSEMBLY - for correct switch and parts list, see figure 90

1шт.

2

G13087

CABLE PULLING GRIP

WIRE - key, Serial Range: switch-solenoid

1шт.

3

A57069

SOLENOID

- heater, 12 volt

1шт.

4

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

7

R29726

PLATE - solenoid mounting

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

R29755

CABLE PULLING GRIP

CABLE - solenoid to heater and starter

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

13

A37775

HEATER

- engine

1шт.
