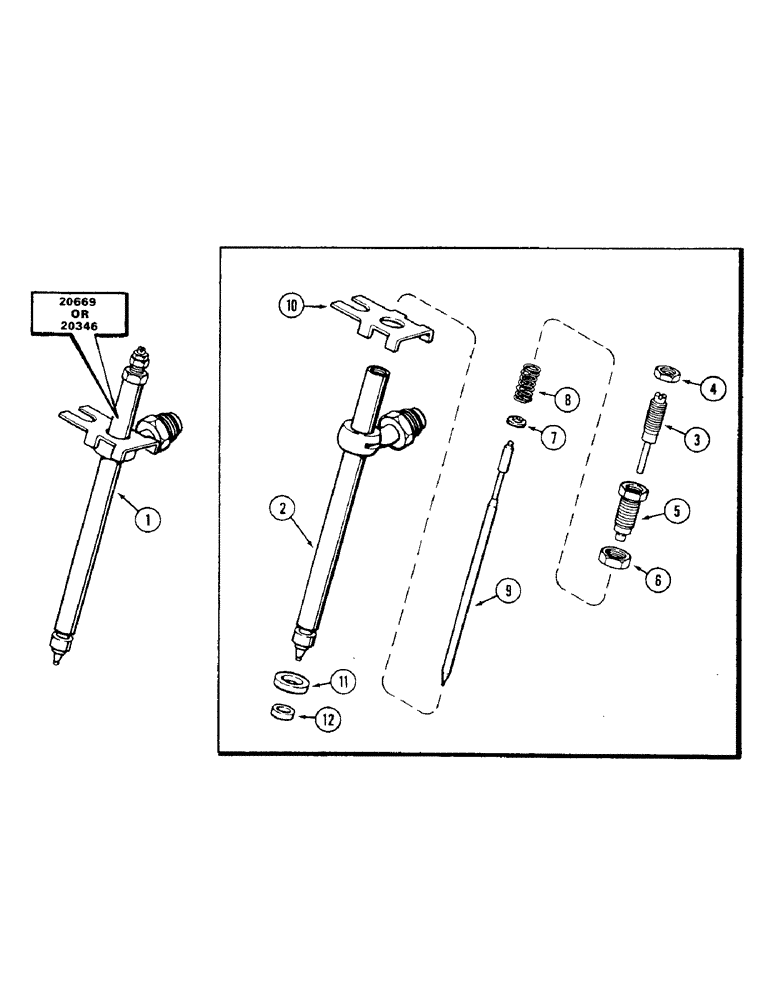

Запчасти Case 475 (068) - FUEL INJECTOR NOZZLES, 336BD DIESEL ENGINE (10) - ENGINE

1

A140830

INJECTOR ASSY.

NOZZLE ASSEMBLY - injector (Stamped 20669 on body) (Blue and yellow color code) (Engine Serial no. 2581421 and after)

4шт.

Whenever nozzle is removed from head A41402 seal and A41403 washer must be replaced before nozzle is installed back in head.

1шт.

1

A64439

NOZZLE CAP

NOZZLE ASSEMBLY - injector (Order A140830) (Stamped 20346 on body) (Yellow and blue color code) (Used prior to Engine serial no. 2581421), Includes: Refs. 2-12

4шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, loft adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A44369

SEAT

- spring

1шт.

8

A43733

SPRING

- pressure adjusting, 9/16" (14.3 MM) free length (Red color code)

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A41768

PLATE

- nozzle locating

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
