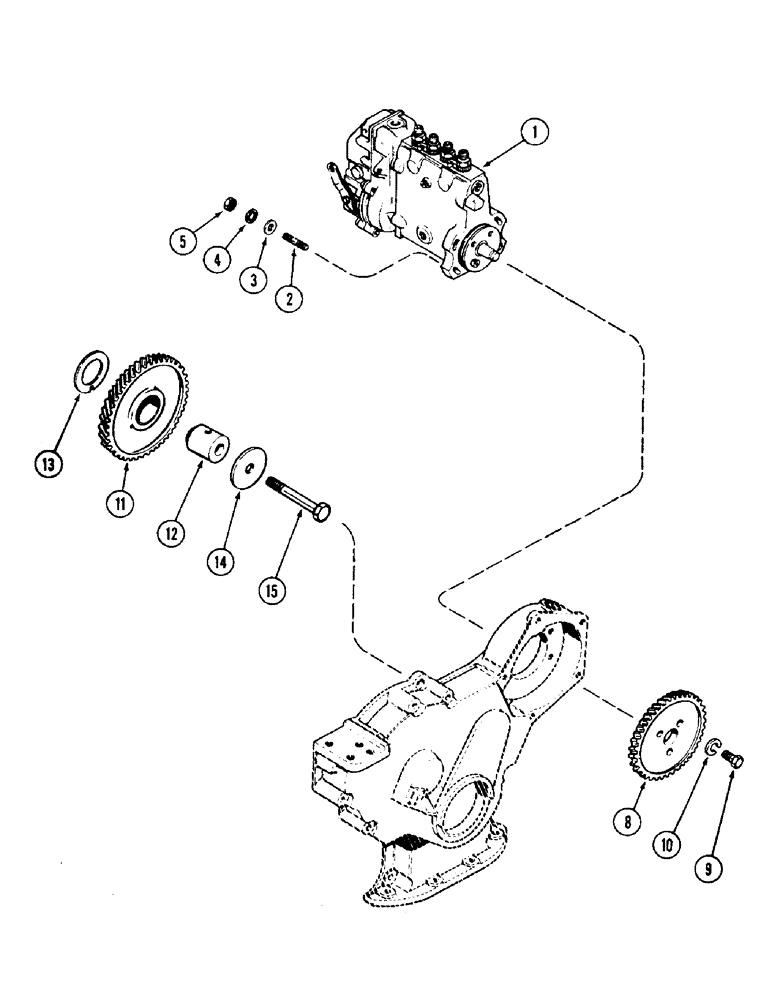

Запчасти Case 475 (066) - INJECTION PUMP DRIVE, 336BD DIESEL ENGINE (10) - ENGINE

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See figure 62)

1шт.

2

A59077

STUD

- pump mounting (Special) (Without drilled hole) (Replaces A58689)

3шт.

2

A142092

STUD

- pump mounting (3/8" NC x 1-7/8") (With drilled hole for anti-tamper wire)

1шт.

3

A57470

WASHER

- mounting stud

4шт.

4

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" NC hex (Used with A59077 stud)

3шт.

5

25-126

SLOTTED NUT,3/8"-16, G5

NUT - 3/8" NC slotted hex (Used with A142092 stud)

1шт.

8

A58693

GEAR

- drive, injection pump

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Drive gear to pump hub Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

10

92-6

LOCK WASHER,3/8"

3шт.

11

A62542

GEAR

ASSEMBLY - idler, with bushing

1шт.

12

A58690

SHAFT

- idler gear

1шт.

13

A58691

WASHER

- thrust, idler gear

1шт.

14

A58692

PLATE

- thrust, idler shaft

1шт.

15

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Idler shaft Hex, 1/2"-13 x 4 1/4", G5

1шт.
