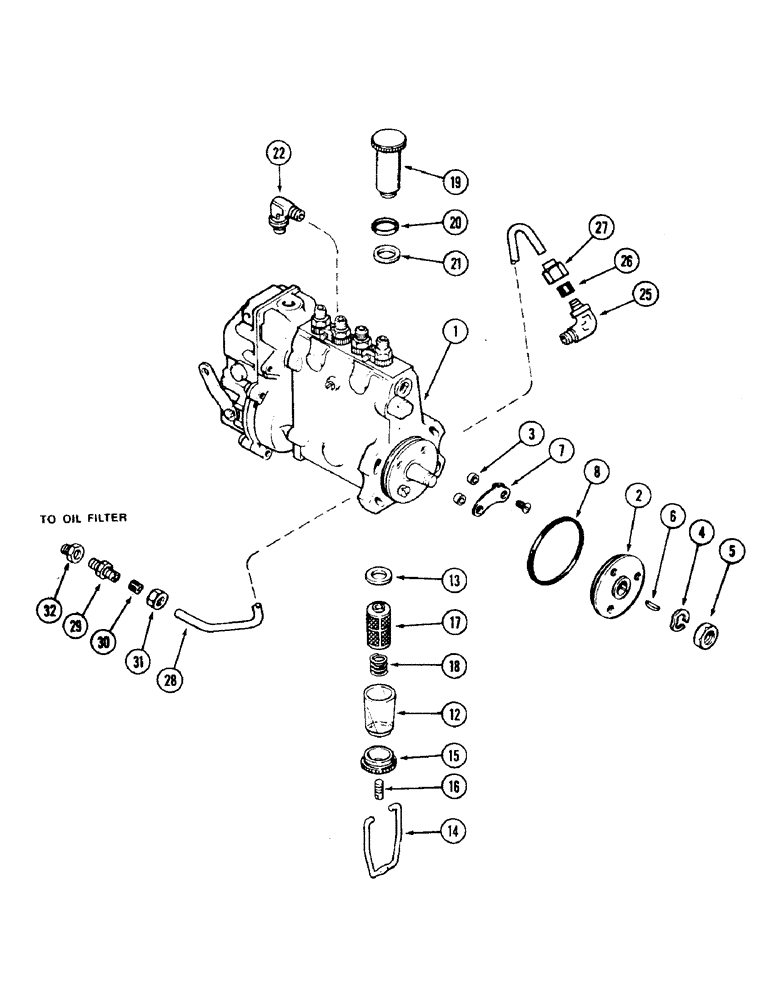

Запчасти Case 475 (062) - A138012 FUEL INJECTION PUMP, 336BD DIESEL ENGINE, WITH LUBE ON OUTSIDE OF PUMP (10) - ENGINE

1

A138012

FUEL INJECTION PUMP

PUMP ASSEMBLY - fuel injection, Includes: Refs. 2-22

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A41855

BUSHING

SPACER - hub

2шт.

4

A42312

LOCK WASHER

- lock, hub nut

1шт.

5

A42313

NUT

- hub retaining

1шт.

6

A20933

KEY

-, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER - hub timing

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- hub

1шт.

12

A43347

BOWL

- filter (Glass)

1шт.

13

A43346

GASKET

- filter bowl

1шт.

14

A43350

CLAMP

BAIL - bowl hanger

1шт.

15

A43348

NUT

BAILNUT - bowl hanger

1шт.

16

A43349

STUD

- bailnut lock and adjustment

1шт.

17

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

18

A43345

SPRING

- element

1шт.

19

A43343

CARTRIDGE

PRIMER ASSEMBLY - hand pump, Include: Ref. 20

1шт.

20

A45342

GASKET

- hand pump

1шт.

21

A43351

SEAL

- hand pump (Copper)

1шт.

22

222-4042

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 90 degree, 1/8" tube x 1/8" PT

1шт.

25

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - (At pump), Includes: Refs. 26, 27

1шт.

26

222-102

SLEEVE,1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" tube)

1шт.

28

A136902

TUBE

- pump to oil filter

1шт.

29

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSEMBLY - (At oil filter base), Includes: Refs. 30, 31

1шт.

30

222-102

SLEEVE,1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" tube)

1шт.

32

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducing (1/4" PT to 3/8" PT)

1шт.
