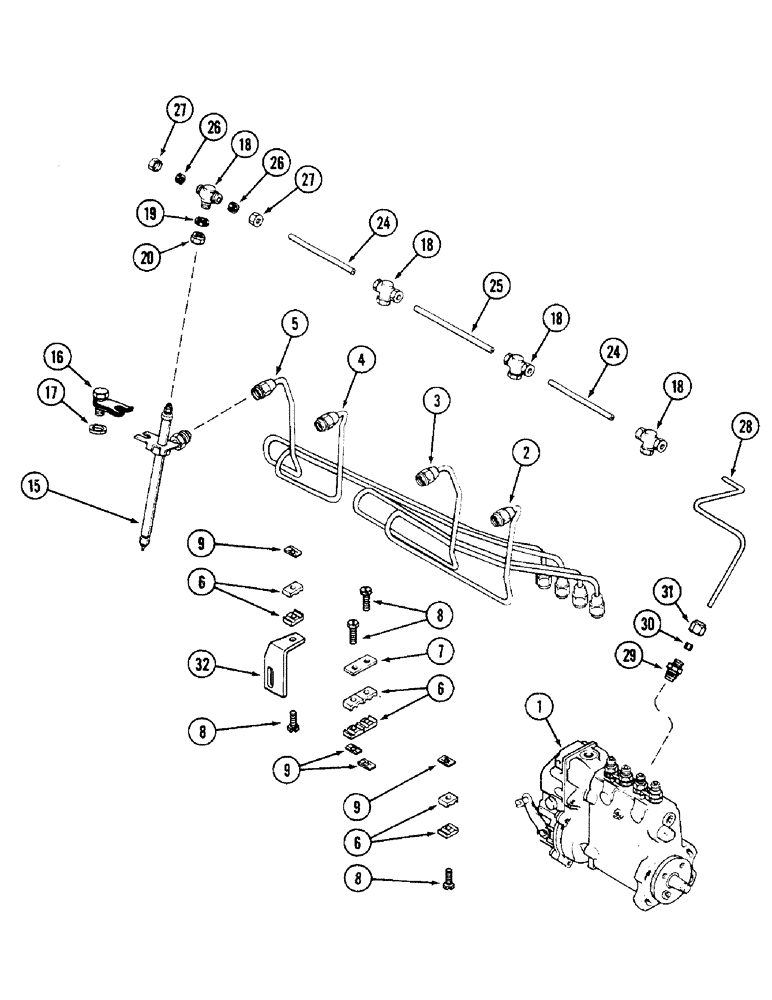

Запчасти Case 475 (058) - FUEL INJECTION SYSTEM, 336BD DIESEL ENGINE (10) - ENGINE

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See figure 62)

1шт.

2

A58702

TUBE

ASSEMBLY - fuel injection, number 1 cylinder

1шт.

3

A58703

TUBE

ASSEMBLY - fuel injection, number 2 cylinder

1шт.

4

A58704

TUBE

ASSEMBLY - fuel injection, number 3 cylinder

1шт.

5

A58705

TUBE

ASSEMBLY - fuel injection, number 4 cylinder

1шт.

6

A58709

BRACKET

CLAMP - injection tubes

10шт.

7

A58710

PLATE

- clamp support

1шт.

8

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- clamps (#10 x 1" NC, slotted hex hd)

5шт.

9

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 Tinnerman

5шт.

15

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injector (See figure 68)

4шт.

16

A58695

CLAMP

ASSEMBLY - nozzle hold down

4шт.

17

A58696

SPACER

- nozzle clamp

4шт.

18

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - injection nozzles and leak-off lines

4шт.

19

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- injection, Serial Range: nozzle-tee

4шт.

20

A58961

NUT

- injection, Serial Range: nozzle-tee

4шт.

24

A58965

TUBE

- fuel leak-off, 4-5/8" (117.5 MM) long

2шт.

25

A58964

TUBE

- fuel leak-off, 5-5/8" (142.9 MM) long

1шт.

26

222-102

SLEEVE,1/4" Tube

8шт.

27

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" tube)

8шт.

28

A58963

TUBE

- fuel leak-off (Number 1 cylinder to check valve)

1шт.

29

A28098

VALVE

ASSEMBLY - check (One way valve), Includes: Refs. 30, 31

1шт.

30

222-102

SLEEVE,1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" tube)

1шт.

32

A156898

BRACKET

- injection tube, rear

1шт.
