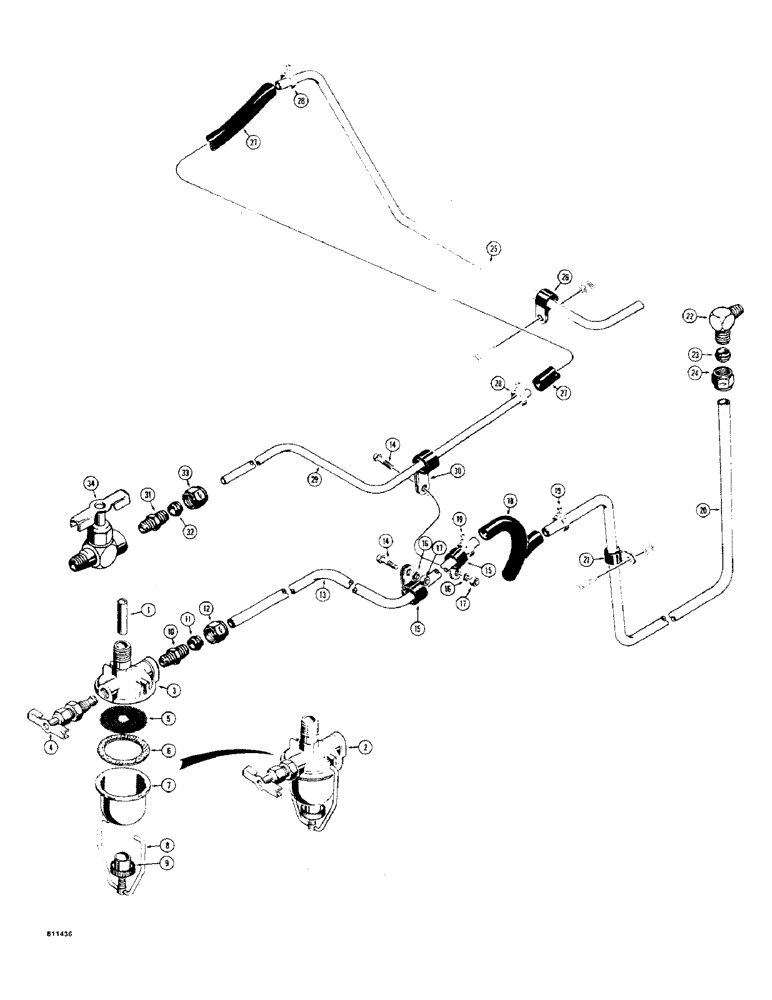

Запчасти Case 475 (056) - FUEL LINES (10) - ENGINE

33487

STRAINER ELEMENT

STRAINER ASSEMBLY - fuel, Includes: Refs. 1-9

1шт.

1

NLS

NO LONGER SERVICED

TUBE - inlet

1шт.

2

A30049

STRAINER ELEMENT

STRAINER - fuel, Includes: Refs. 3-9

1шт.

3

A11214

HEAD

COVER - strainer

1шт.

4

A11205

VALVE

SHUTOFF VALVE - strainer

1шт.

5

A11211

FILTER SCREEN

SCREEN - strainer

1шт.

6

A11208

GASKET

- bowl

1шт.

7

86982913

BOWL

- metal, if used

1шт.

7

A11209

BOWL

- glass, if used

1шт.

8

A11212

BAIL

RETAINER ASSEMBLY - bowl

1шт.

9

A11210

ADJUSTER

NUT - retainer assembly

1шт.

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - straight, male, Includes: Refs. 10-12

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

11

222-103

SLEEVE,5/16" Tube

- Connector 5/16" Tube

1шт.

12

222-113

TUBE NUT,9/16"-24

NUT - connector

1шт.

13

R24355

TUBE

- supply, from strainer

1шт.

14

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

15

49832

CLAMP

- tube

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

18

D34989

FUEL HOSE,0.31" ID x 9.00", SAE 30R1

May Be Cut From D94979 Hose 0.31" ID x 9.00", SAE 30R1

1шт.

See below for D94979 hose

1шт.

19

214-300

CLAMP

- hose, adjustable

2шт.

20

R24728

TUBE

- supply, to fuel pump

1шт.

21

49832

CLAMP

- tube, uses flywheel housing mounting hardware

1шт.

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 90 degree, male, Includes: Refs. 22-24

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

23

222-103

SLEEVE,5/16" Tube

- Elbow 5/16" Tube

1шт.

24

222-113

TUBE NUT,9/16"-24

NUT - elbow

1шт.

25

R24729

TUBE

- fuel return, from injector

1шт.

26

51200321

CLAMP

- tube, uses flywheel housing mounting hardware

1шт.

27

D51735

FUEL HOSE

HOSE - 1/4" (6 MM) ID x 9" (229 MM) long

1шт.

28

214-300

CLAMP

- hose, adjustable

2шт.

29

R24356

TUBE - return, to fuel tank

1шт.

30

D43364

CLAMP

- tube

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR - straight, male, Includes: Refs. 31-33

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

32

222-102

SLEEVE,1/4" Tube

Connector 1/4" Tube

1шт.

33

87017024

TUBE NUT,1/2"-24

NUT - connector

1шт.

34

217-94

SHUT-OFF VALVE

SHUTOFF VALVE - at fuel tank

1шт.

D94979

FUEL HOSE,7.90 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

HOSE 7.90 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

1шт.
