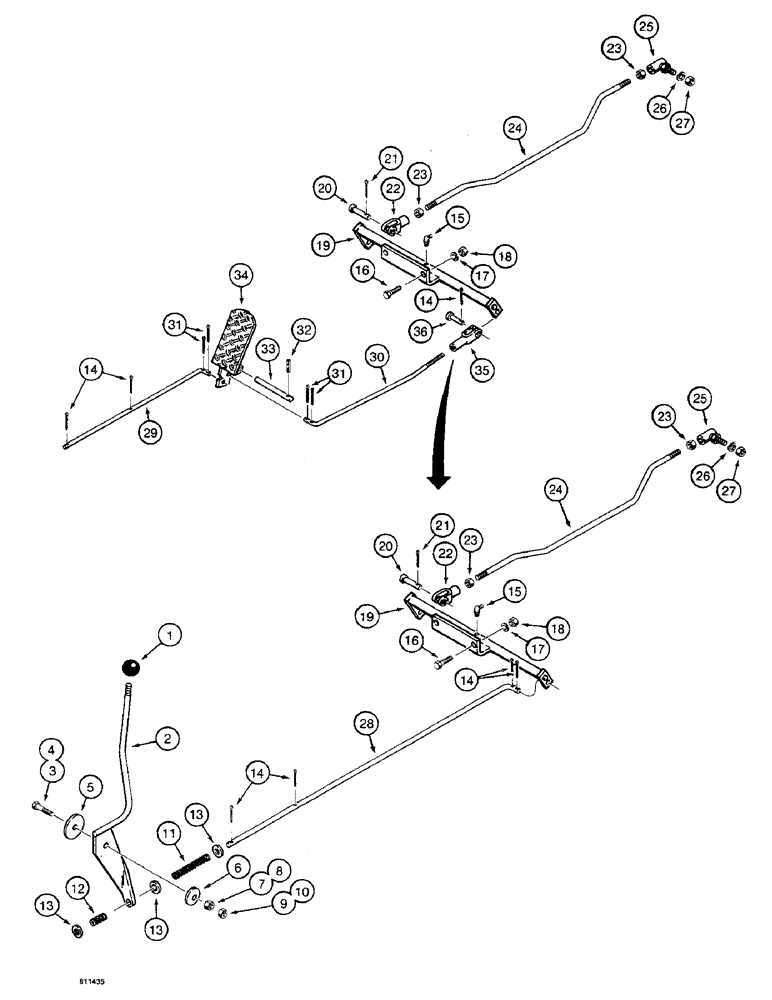

Запчасти Case 475 (054) - THROTTLE CONTROL LINKAGE (10) - ENGINE

1

D49996

KNOB

- control

1шт.

2

D50237

LEVER

CONTROL LEVER - throttle

1шт.

3

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- hex head, 1/2" - 20 NF x 1-3/4", if used

1шт.

4

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4", if used

1шт.

5

R15071

DISC

FRICTION DISC - control lever

1шт.

6

R14771

WASHER

BELLEVILLE SPRING - control lever

1шт.

7

25-118

NUT,1/2"-20, G5

- hex, 1/2" - 20 NF, if used

1шт.

8

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, if used

1шт.

9

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, jam, 1/2" - 20 NF, if used

1шт.

10

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2"-13 NC, if used

1шт.

11

A8767

SPRING

- pedal return

1шт.

12

A7827

SPRING

- control rod

1шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

3шт.

14

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

3-4шт.

15

219-46

LUBE NIPPLE,65 Degree Elbow, 5/16" NPTF

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

19

D35402

LEVER

SHAFT - pivot throttle control

1шт.

20

141-52

CLEVIS PIN,1/4" x .770"

- 1/4", plated

1шт.

21

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

22

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - throttle rod

1шт.

23

25-114

NUT,1/4"-28, G5

- hex, 1/4" - 28 NF

2шт.

24

R38938

ROD

- throttle

1шт.

25

A10329

BALL JOINT,1/4" - 28 x 1"

- adjustable

1шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

25-114

NUT,1/4"-28, G5

- hex, 1/4" - 28 NF

1шт.

28

R24359

ROD

- to hand control lever, used on models with hand throttle only

1шт.

29

R32167

ROD

- throttle control, rear, used on models with hand and foot throttle

1шт.

30

R32169

ROD - throttle control, front, used on models with hand and foot throttle

1шт.

31

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4", used on models with hand and foot throttle

4шт.

32

135-737

GROOVED PIN,5/32" x 1", Type E

PIN, GROOVED, , Used on models with hand and foot throttle 5/32" x 1", Type E

1шт.

33

R17364

SHAFT

- throttle pedal, used on models with hand and foot throttle

1шт.

34

R32171

PEDAL

- throttle control, used on models with hand and foot throttle

1шт.

35

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - throttle rod, 5/16", used on models with hand and foot throttle

1шт.

36

141-53

CLEVIS PIN,5/16" x .940"

plated, used on models with hand and foot throttle 5/16" x .940"

1шт.
