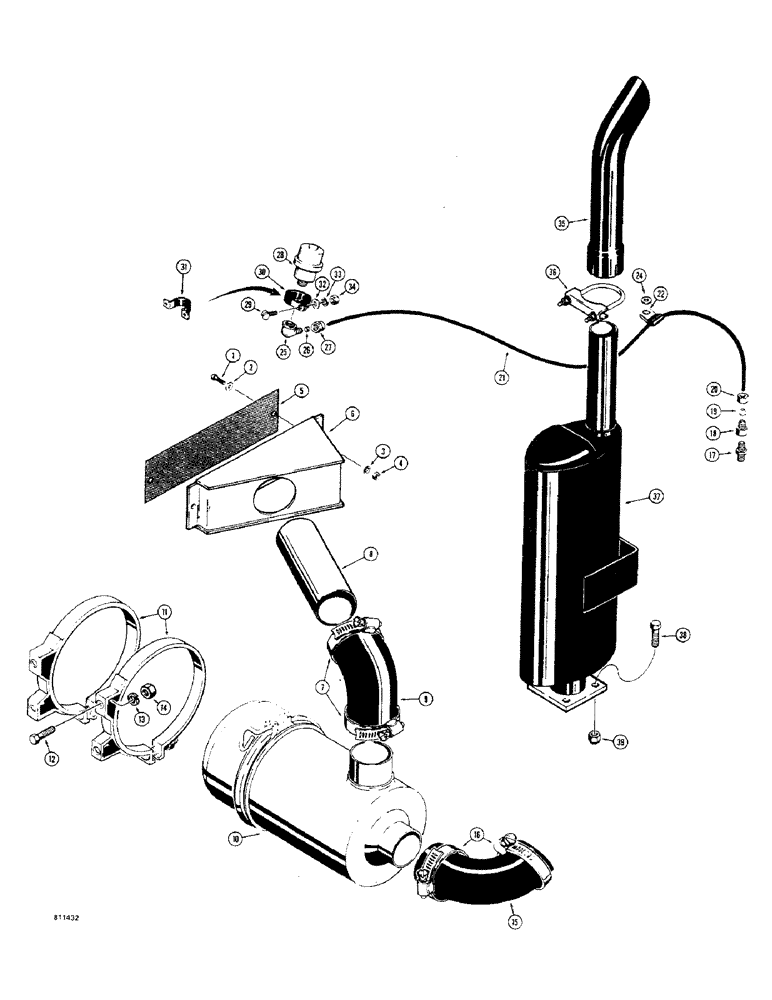

Запчасти Case 475 (048) - AIR CLEANER AND EXHAUST SYSTEM, HORIZONTAL AIR INTAKE (10) - ENGINE

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

2

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

5

R30489

SCREEN - air intake

1шт.

6

R33534

CHAMBER

- air intake

1шт.

7

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, adjustable

2шт.

8

R30490

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

TUBE - air cleaner intake

1шт.

9

D36262

LARGE HOSE

HOSE - air cleaner intake

1шт.

10

D36261

CLEANER

AIR CLEANER ASSEMBLY - parts list figure 50

1шт.

11

R24049

BAND

CLAMP - air cleaner mounting

2шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

13

92-5

LOCK WASHER,5/16"

4шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

15

R24740

HOSE ASSY.

HOSE - air, Serial Range: cleaner-manifold

1шт.

16

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, adjustable

2шт.

17

D36264

FITTING

CONNECTOR - special, filter

1шт.

D35091

PIPE FITTING

CONNECTOR - straight, compression, Includes: Refs. 18-20

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

19

D37176

SLEEVE

- compression

1шт.

20

D37362

TUBE NUT

- compression

1шт.

21

D36944

TUBE

- restriction indicator to manifold, 39-7/16" (1001 MM) long, may be cut from F12417 tube

1шт.

See below for F12417 tube

1шт.

22

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- tube, at manifold

1шт.

24

195-29

WASHER,7/16"

- flat, 7/16"

1шт.

D45588

FITTING

ELBOW ASSEMBLY - special, 90 degree, Includes: Refs. 25-27

1шт.

25

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree

1шт.

26

D37176

SLEEVE

- compression

1шт.

27

D37362

TUBE NUT

- compression

1шт.

28

D47217

INDICATOR

RESTRICTION INDICATOR - air

1шт.

29

173-202

SCREW,Rnd Hd, 1/4" - 20 x 3/4"

- round head slotted, 1/4" - 20 NC x 3/4", plated

1-2шт.

30

D45064

CLAMP,1 3/8", Insul, 1/4" Bolt

- indicator, P-style, if used

1шт.

31

R33808

CLAMP

- indicator, U-style, if used

1шт.

32

195-18

WASHER,1/4"

- flat, , use with D45064 clamp, if used 1/4"

1шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1-2шт.

34

25-104

NUT,1/4"-20, G5

1-2шт.

35

R30487

PIPE, EXHAUST SYSTEM

EXHAUST PIPE - muffler

1шт.

36

A27077

CLAMP

- exhaust, Serial Range: pipe-muffler

1шт.

37

R26105

MUFFLER

- exhaust

1шт.

38

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

4шт.

39

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

4шт.

F12417

PIPE

TUBE - bulk, 10 ft. (3.04 M) long

1шт.
