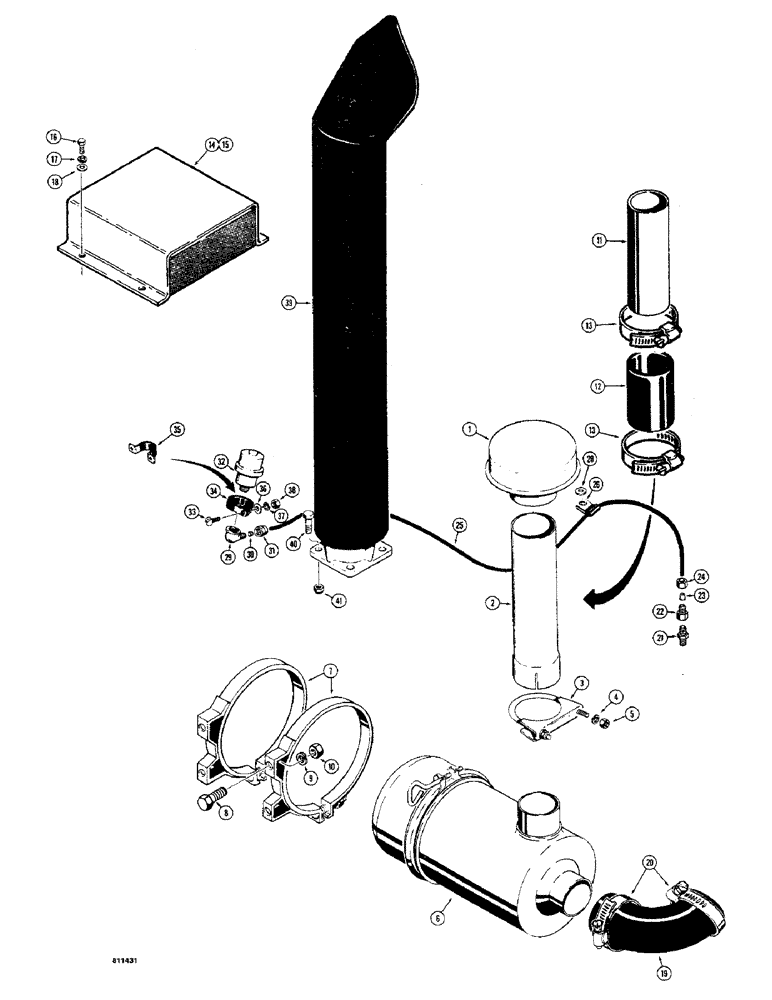

Запчасти Case 475 (046) - AIR CLEANER AND EXHAUST SYSTEM, VERTICAL AIR INTAKE (10) - ENGINE

1

A61277

CAP

- air cleaner inlet, if used

1шт.

2

D34631

TUBE

- air cleaner inlet, if used

1шт.

3

L73711

CLAMP

ASSEMBLY - tube, Includes: Refs. 4, 5

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

D36261

CLEANER

AIR CLEANER ASSEMBLY - parts list figure 50

1шт.

7

R24049

BAND

CLAMP - air cleaner mounting

2шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

11

R30490

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

TUBE - air cleaner inlet, noise reduction, if used

1шт.

12

L42590

INTAKE AIR HOSE,3.00" ID x 5.00", SAE 20R2 Class SC

- Air Cleaner Inlet, Noise Reduction, If used 3.00" ID x 5.00", SAE 20R2 Class SC

1шт.

13

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, adjustable

2шт.

14

R33439

COVER

ASSEMBLY - air intake, noise reduction, Includes pad, for pad alone see figure 294, if used, Includes: Ref. 15

1шт.

15

R33437

COVER

- air intake, without pad

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

195-25

WASHER,3/8"

- flat, 3/8"

8шт.

19

R24740

HOSE ASSY.

HOSE - air, Serial Range: cleaner-manifold

1шт.

20

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, adjustable

2шт.

21

D36264

FITTING

CONNECTOR - special, filter

1шт.

D35091

PIPE FITTING

CONNECTOR - straight, compression, Includes: Refs. 22-24

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

23

D37176

SLEEVE

- compression

1шт.

24

D37362

TUBE NUT

- compression

1шт.

25

D36944

TUBE

- restriction indicator to manifold, 39-7/16" (1001 MM) long may be cut from F12417 tube

1шт.

See below for F12417 tube

1шт.

26

49859

CLAMP

- tube, at manifold

1шт.

28

195-29

WASHER,7/16"

- flat, 7/16"

1шт.

D45588

FITTING

ELBOW ASSEMBLY - special, 90 degree, Includes: Refs. 29-31

1шт.

29

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree

1шт.

30

D37176

SLEEVE

- compression

1шт.

31

D37362

TUBE NUT

- compression

1шт.

32

D47217

INDICATOR

RESTRICTION INDICATOR - air

1шт.

33

173-202

SCREW,Rnd Hd, 1/4" - 20 x 3/4"

- round head slotted, 1/4" - 20 NC x 3/4", plated

1-2шт.

34

D45064

CLAMP,1 3/8", Insul, 1/4" Bolt

- restriction indicator, P-style, if used

1шт.

35

R33808

CLAMP

- restriction indicator, U-style, if used

1шт.

36

195-18

WASHER,1/4"

- flat, , use with D45064 clamp, if used 1/4"

1шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1-2шт.

38

25-104

NUT,1/4"-20, G5

1-2шт.

39

D47767

MUFFLER

- exhaust

1шт.

40

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

41

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

4шт.

F12417

PIPE

TUBE - bulk, 10 ft. (3.04 M) long

1шт.
