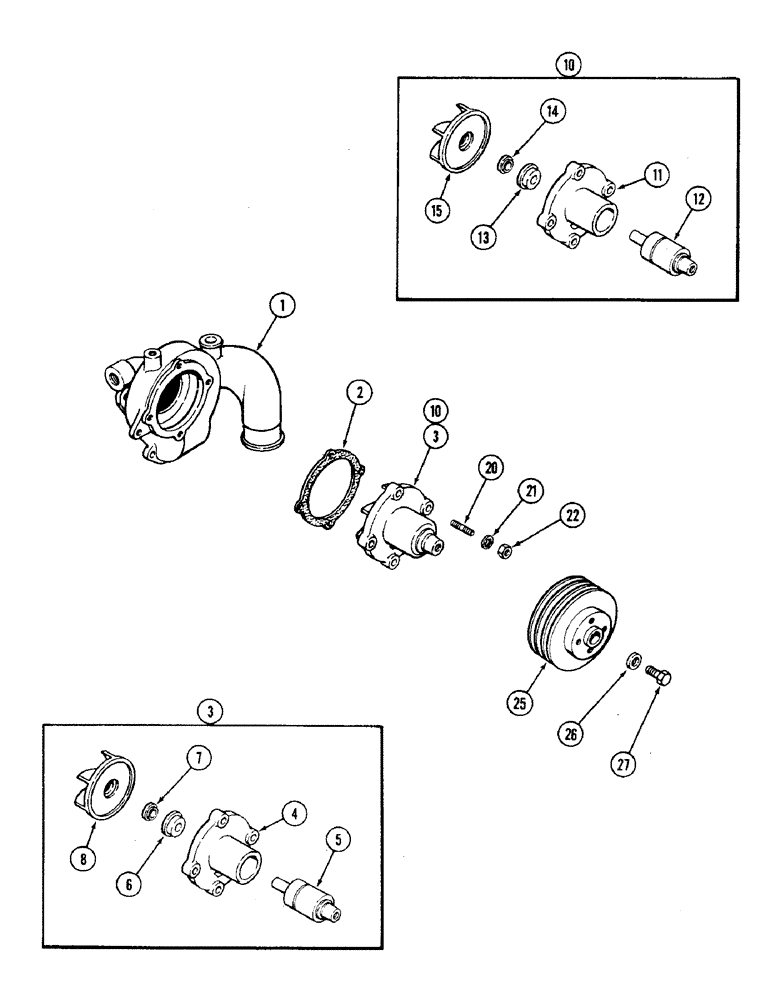

Запчасти Case 475 (042) - WATER PUMP, 336DB DIESEL ENGINE (10) - ENGINE

1

REF

INSTRUCTION

BODY ASSEMBLY - water pump (See figure 40)

1шт.

2

A58646

GASKET

-, Serial Range: pump-body

1шт.

3

A155178

PUMP

ASSEMBY - water (Order A157143), Includes: Refs. 4-8

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - pump (Order A157143)

1шт.

5

A156995

BEARING

SHAFT ASSEMBLY - bearing

1шт.

6

A142499

SEAL

- pump shaft

1шт.

7

A34000

SEAL

SEAT - impeller

1шт.

8

A61267

IMPELLER

- water

1шт.

10

A157143

PUMP

ASSEMBLY - water, Includes: Refs. 11-15

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - pump (Order A157143)

1шт.

12

A156995

BEARING

SHAFT ASSEMBLY - bearing

1шт.

13

A142499

SEAL

- pump shaft

1шт.

14

A34000

SEAL

SEAT - impeller

1шт.

15

A61267

IMPELLER

- water

1шт.

20

G102128

BOLT

- pump to body (Special)

1шт.

21

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

22

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

4шт.

25

A60690

PULLEY

- fan

1шт.

26

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER - pulley mounting

1шт.

27

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2 x 1-1/4" NF hex head

1шт.
