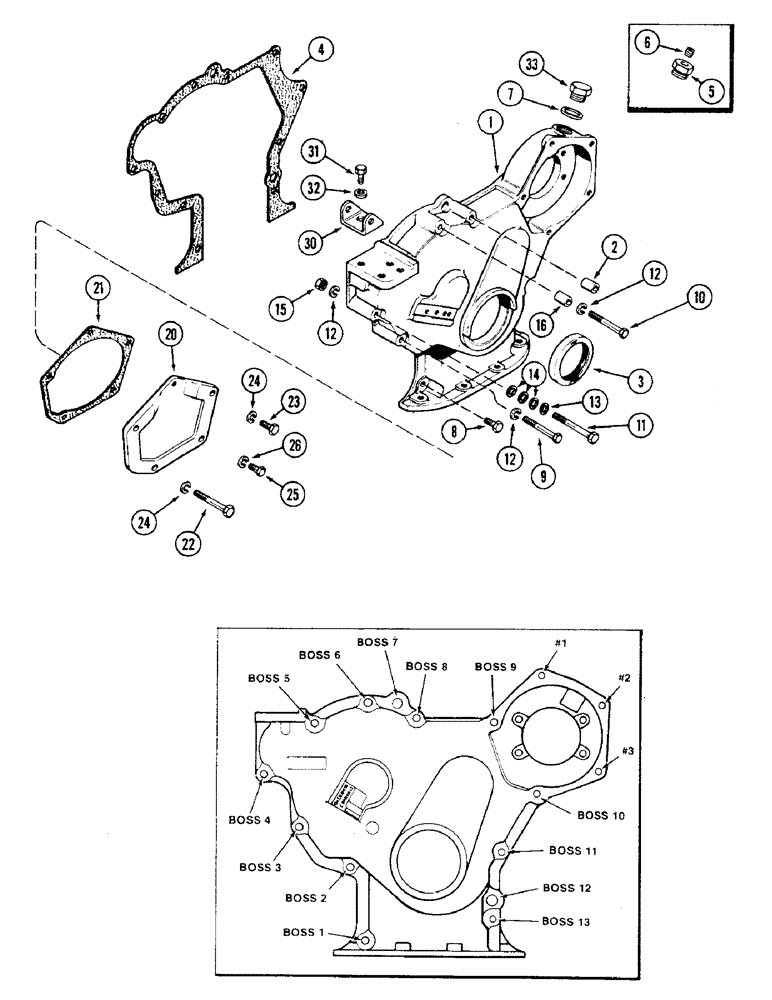

Запчасти Case 475 (038) - TIMING GEAR COVER, 336BD DIESEL ENGINE (10) - ENGINE

1

A58609

COVER

ASSEMBLY - timing gears, Includes: Ref. 2

1шт.

2

A58611

PIN

DOWEL - cover locating

2шт.

3

A62049

OIL SEAL

- oil, crankshaft, front

1шт.

4

A58612

GASKET

-, Serial Range: cover-block

1шт.

5

A18550

PLUG

- timing window

1шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" PT, hex socket head

1шт.

7

A58613

SEALING WASHER

GASKET - window plug

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(Boss 1, 2, 11, 13) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

9

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex (Boss 3 and 8)

2шт.

10

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" NC hex (Boss 6)

1шт.

11

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

(Boss 4 and 5) Hex, 3/8"-16 x 4", G5

2шт.

12

92-6

LOCK WASHER,3/8"

9шт.

13

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16" (9.5 x 20.6 x 1.6 MM) (Used with 13-664 bolt)

2шт.

14

95-6

WASHER,3/8"

SPACER - 7/16 x 1 x 1/16" (11.1 x 25.4 x 1.6 mm) (3 per bolt) (Used with 13-664 bolt)

6шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

16

A19774

BUSHING

SPACER - alternator pry point (Boss 6)

1шт.

20

A61053

COVER

- fuel pump

1шт.

21

A58615

GASKET

- fuel pump

1шт.

22

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" NC hex (Boss 9 and 10)

2шт.

23

A151921

BOLT

- 3/8 x 1-1/4" NC hex (head drilled for anti-tamper wire) (pad 2 and 3)

2шт.

24

92-6

LOCK WASHER,3/8"

4шт.

25

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Pad 1) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

26

92-5

LOCK WASHER,5/16"

1шт.

30

A160391

BRACKET

- alternator mounting

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Mounting bracket to cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.

33

A21140

PLUG

- timing window

1шт.
