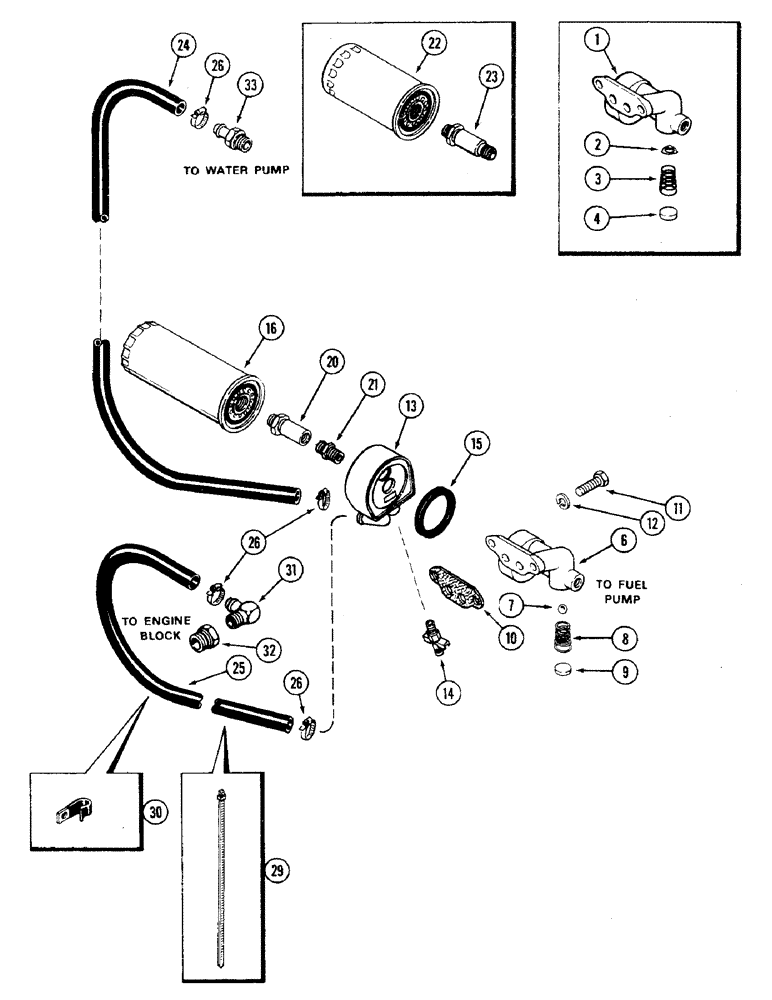

Запчасти Case 475 (032) - OIL FILTER AND COOLER, 336BD DIESEL ENGINE (10) - ENGINE

1

A58752

BASE

ASSEMBLY - oil filter and cooler (Order 155956), Includes: Refs. 2-4

1шт.

2

A58754

VALVE

- relief

1шт.

3

A58755

FILTER

SPRING - relief valve

1шт.

4

41-1016

PLUG,Cup, 1"

- relief valve, 1" (25.4 MM) cup type

1шт.

6

A155956

BASE

ASSEMBLY - oil filter and cooler, Includes: Refs. 7-9

1шт.

7

211-15

BALL,5/8" Dia

- filter relief, 5/8" (15.9 MM) diameter (Chrome steel)

1шт.

8

A155953

SPRING

- relief valve

1шт.

9

41-1016

PLUG,Cup, 1"

- relief valve, 1" (25.4 MM) cup type

1шт.

10

A58756

OIL PAN GASKET SET

- filter, Serial Range: base-block

1шт.

11

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- base to block (1/2 x 1-3/4" NC hex)

2шт.

12

92-8

LOCK WASHER,1/2"

2шт.

13

A66295

COOLER

- oil

1шт.

14

217-107

VALVE

DRAINCOCK - cooler (Discard 1/8" pipe plug in cooler)

1шт.

15

A153806

SEALING RING

- oil, cooler to base (Replaces A66410)

1шт.

16

A44081

ENGINE OIL FILTER

FILTER - oil (With 1"-12 NF threads) (Engine Serial no. 10018987 and after)

1шт.

20

A66992

ADAPTER

- A44081 filter to A58757 adapter (1" - 12 NF threads and 3/4" - 16 NF threads)

1шт.

21

A58757

ADAPTER

- A66992 adapter to A66295 cooler (3/4" - 16 NF threads and 3/4" - 10 NC threads)

1шт.

22

A146696

ENGINE OIL FILTER

FILTER - oil (With 3/4" - 16 NF threads) (Replaces A58758) (Used prior to Engine Serial no. 10018987)

1шт.

23

A66296

ADAPTER

- A146696 filter to A66295 cooler (3/4" - 16 NF threads and 3/4" NC threads)

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE - water inlet, 47" (1 193.8 MM) long (Order A42610)

1шт.

25

NSS

NOT SOLD SEPARAT

HOSE - water outlet, 25" (635 MM) long (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - 5/8" ID x 1" OD x 50 feet (15.9 MM ID x 25.4 MM OD x 15 M) (Cut to length required)

1шт.

26

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16" (14.3 to 27 MM)

4шт.

29

A160890

STRAP

- hose tie

1шт.

30

A59718

CLAMP

- hose

1шт.

31

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose, 90 degree

1шт.

32

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

- (In block), 3/4" to 1/2" (19.1 to 2.7 MM) (Replaces 221-60)

1шт.

33

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose (To water pump) (1/2" P.T.)

1шт.
