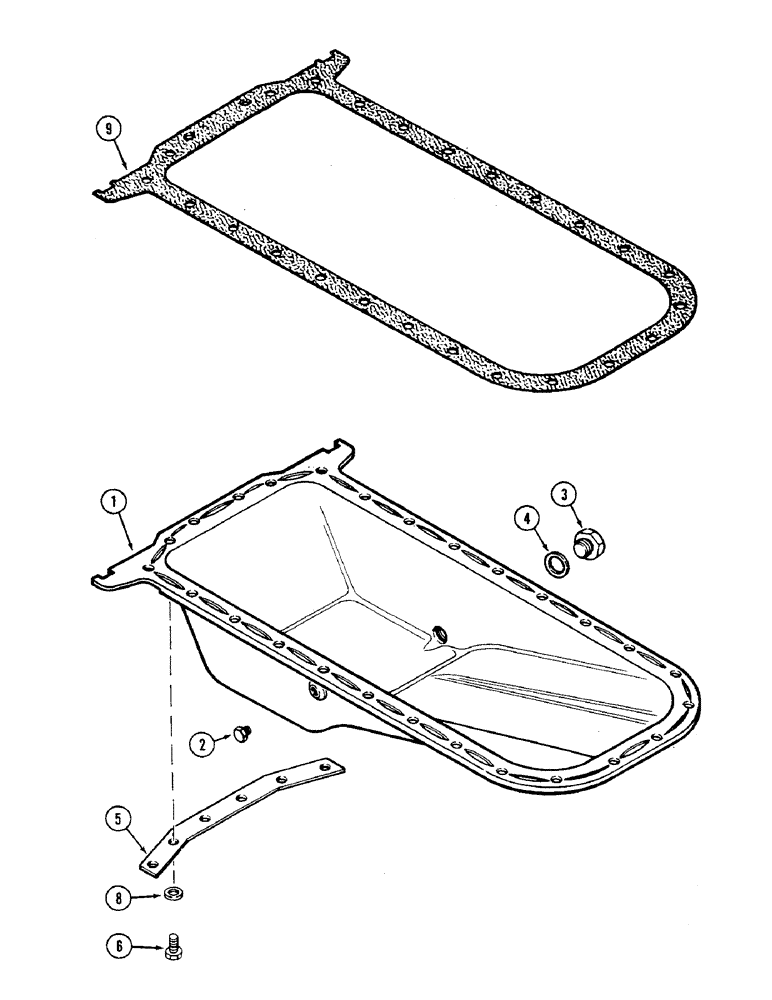

Запчасти Case 475 (030) - OIL PAN, 336BD DIESEL ENGINE (10) - ENGINE

1

A62711

PAN

ASSEMBLY - engine oil, Includes: Ref. 2

1шт.

2

221-664

PLUG,Hex Hd, 1/2"-14

- 1/2" PT hex head

1шт.

3

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

4

A27968

RING

- drain plug (Copper)

1шт.

5

A58932

STRAP

- reinforcing

1шт.

6

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT - 3/8 x 7/8" NC hex head Sems (Replaces 13-614)

26шт.

8

195-25

WASHER,3/8"

- x 13/16 x 1/16" (9.5 x 20.6 x 1.6 MM) 3/8"

26шт.

9

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A42221, see figure 36)

1шт.
