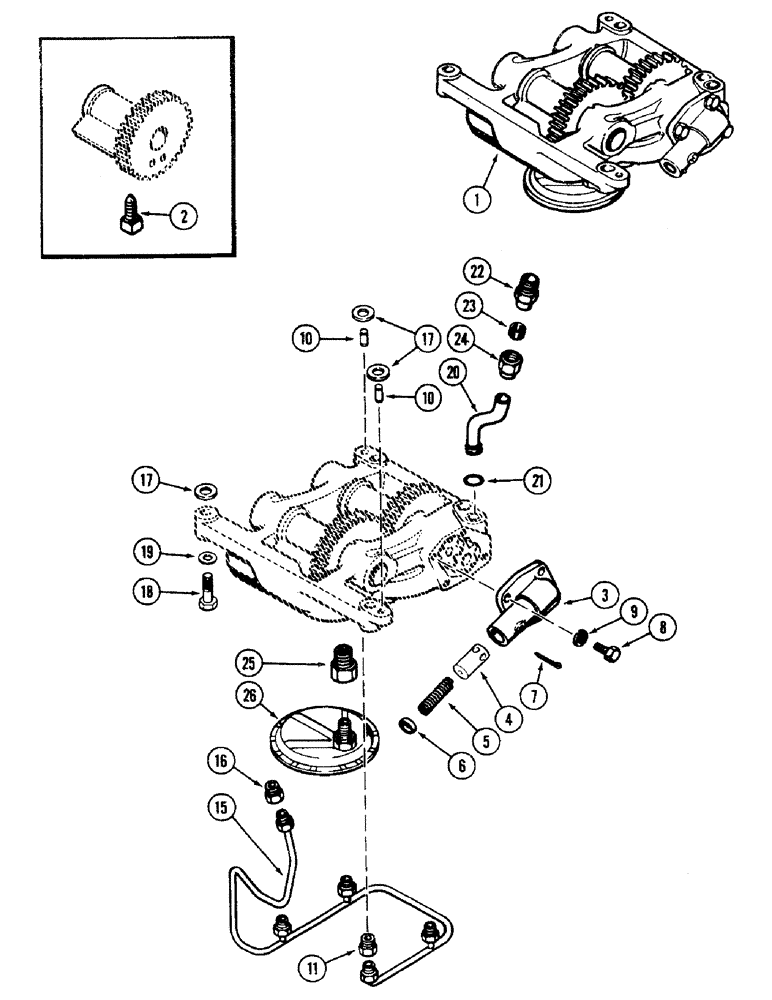

Запчасти Case 475 (028) - BALANCER AND OIL PUMP, 336BD DIESEL ENGINE (10) - ENGINE

1

A66168

PUMP, ENGINE OIL

BALANCER ASSEMBLY - engine, Includes: Refs. 2-11

1шт.

2

181-675

SET SCREW,Sq Hd, 1/2"-13 x 1"

SCREW - (1/2 x 1-1/4" NC, square head dog point)

4шт.

3

A153795

COVER

- oil pump (Replaces A61129)

1шт.

4

A65083

VALVE

- oil pump relief

1шт.

5

A151960

SPRING

- relief valve (Replaces A59111)

1шт.

6

41-1011

PLUG,Cup, 11/16"

- relief valve, 11/16" (17.5 MM) cup

1шт.

7

132-32

COTTER PIN,3/32" x 1 1/2"

PIN, Split (Cotter), 3/32" x 1 1/2"

1шт.

8

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

8

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- 5/16 x 1-3/8" NC hex

1шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

A8134

PIN

- balancer locating, 3/8 x 3/4" (9.5 x 19.1 MM)

2шт.

11

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - manifold

4шт.

15

A62002

MANIFOLD

- balancer oil supply

1шт.

16

222-1012

HYD CONNECTOR,7/16"-24 Inv Fl x 1/8" NPT

CONNECTOR - manifold inlet

1шт.

17

G49401

SHIM,.005" Thk

Mounting (0.127 mm) .005" Thk

1шт.

17

G49402

SHIM,.010" Thk

Mounting (0.254 mm) .010" Thk

1шт.

18

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- balancer mounting (1/2 x 2-1/2" NC hex)

2шт.

18

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

Balancer mounting Hex, 1/2"-13 x 3 1/4", G5

2шт.

19

A150672

WASHER

- mounting

4шт.

20

A61130

TUBE

-, Serial Range: pump-block

1шт.

21

A64436

O-RING,0.549" ID x 0.755" OD

- tube

1шт.

22

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSEMBLY - oil tube, Includes: Refs. 23, 24

1шт.

23

222-106

SLEEVE,5/8" Tube

- (for ) 5/8" Tube

1шт.

24

222-116

TUBE NUT,1"-18

NUT - (for 5/8" tube)

1шт.

25

A21235

FITTING

ADAPTER -, Serial Range: screen-balancer

1шт.

26

A22590

FILTER SCREEN

SCREEN ASSEMBLY - oil inlet

1шт.
