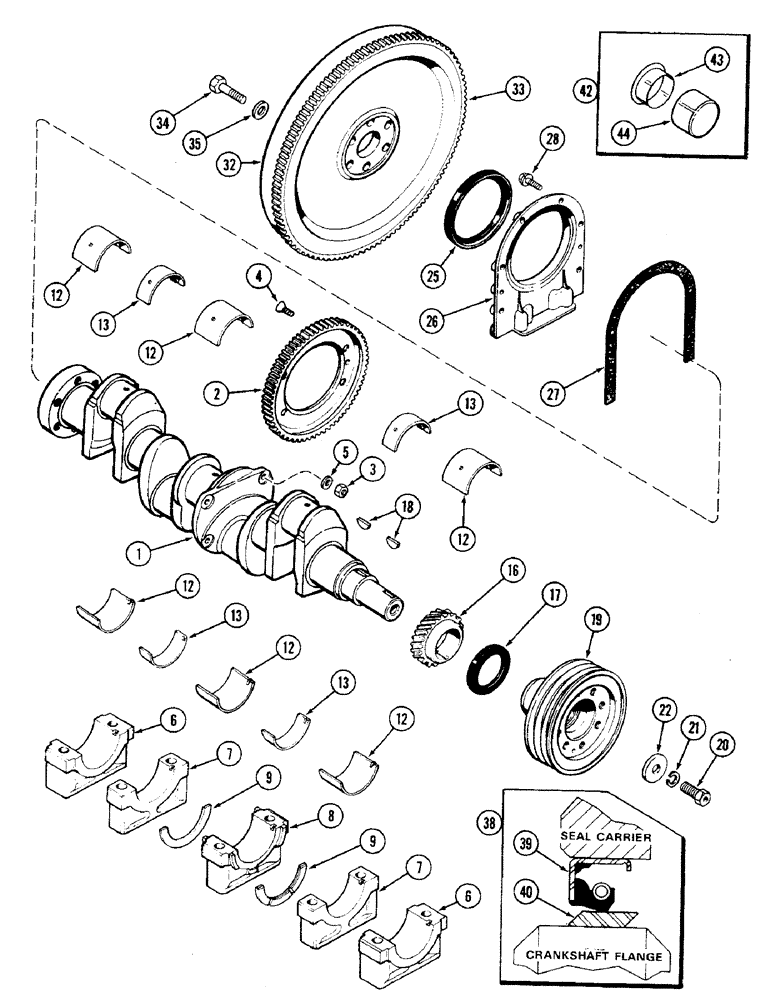

Запчасти Case 475 (020) - CRANKSHAFT AND FLYWHEEL, 336BD DIESEL ENGINE (10) - ENGINE

1

A155437

SHAFT

CRANKSHAFT - engine (Replaces A58889)

1шт.

2

A154998

GEAR

- balancer drive (Replaces A62450 and A148425) (Locating pin not required)

1шт.

3

A51904

NUT

NUT - drive gear screw

4шт.

4

A155438

SCREW,Torx, 3/8" - 24 x 1 1/4"

- drive gear (Replaces A146984)

4шт.

5

A50820

WASHER

- drive gear screw

4шт.

6

A154391

CAP

- main bearing, front and rear (Wide) (Replaces A58783)

2шт.

7

A154390

CAP

- main bearing, intermediate (Narrow) (Replaces A58784)

2шт.

8

A154392

CAP

- main bearing, thrust, center (Wide) (Replaces A58785)

1шт.

9

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, center bearing (Standard), 0.185" (4.699 MM)

2шт.

9

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, center bearing (Oversize), 0.191" (4.851 MM)

2шт.

12

A43163

BEARING LINER

LINER SET - main bearing, wide (Standard) (Set of 2)

3шт.

12

A43164

BEARING LINER

LINER SET - main bearing, wide, -0.002" (-0.051 MM) (Set of 2)

3шт.

12

A43165

BEARING LINER

LINER SET - main bearing, wide, -0.010" (-0.254 MM) (Set of 2)

3шт.

12

A43166

BEARING LINER

LINER SET - main bearing, wide, -0.020" (-0.508 MM) (Set of 2)

3шт.

12

A43167

BEARING LINER

LINER SET - main bearing, wide, -0.030" (-0.762 MM) (Set of 2)

3шт.

13

A43158

BEARING LINER

LINER SET - main bearing, narrow, (Standard) (Set of 2)

2шт.

13

A43159

BEARING LINER

LINER SET - main bearing, narrow, -0.002" (-0.051 MM) (Set of 2)

2шт.

13

A43160

BEARING LINER

LINER SET - main bearing, narrow, -0.010" (-0.254 MM) (Set of 2)

2шт.

13

A43161

BEARING SET

LINER SET - main bearing, narrow, -0.020" (-0.508 MM) (Set of 2)

2шт.

13

A43162

BEARING LINER

LINER SET - main bearing, narrow, -0.030" (-0.762 MM) (Set of 2)

2шт.

16

A66404

GEAR

- crankshaft

1шт.

17

A62049

OIL SEAL

- oil, front

1шт.

18

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear & pulley #C, 5/16" x 1 1/8", HT

2шт.

19

A60012

PULLEY

- fan drive

1шт.

20

114-613

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

- pulley (5/8 x 1-1/2" NF hex head) (Replaces A28028)

1шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22

A156428

WASHER

- pulley (Replaces A27903)

1шт.

25

A62050

OIL SEAL

- oil, rear (See wear seal kit, ref 38)

1шт.

26

A57457

RETAINER

- rear oil seal

1шт.

27

A32830

GASKET

- rear oil seal retainer

1шт.

28

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT - retainer, 3/8 x 1-1/4" NC hex Sems (Replaces 13-620)

6шт.

32

A62834

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 33

1шт.

33

A58778

GEAR

- ring, starter

1шт.

34

28-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 8

- flywheel to crankshaft (5/8 x 2-1/4" NF hex)

6шт.

35

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flywheel bolt

6шт.

38

A43194

KIT

WEAR SEAL KIT - oil, crankshaft, rear, Includes: Refs. 39, 40

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, wear kit

1шт.

40

NSS

NOT SOLD SEPARAT

SLEEVE - wear, seal kit

1шт.

42

A154684

SLEEVE

WEAR SLEEVE KIT - crankshaft, front, seal, Includes: Refs. 43, 44

1шт.

43

NSS

NOT SOLD SEPARAT

SLEEVE - wear, seal kit

1шт.

44

NSS

NOT SOLD SEPARAT

TOOL - installation, wear seal kit

4шт.
