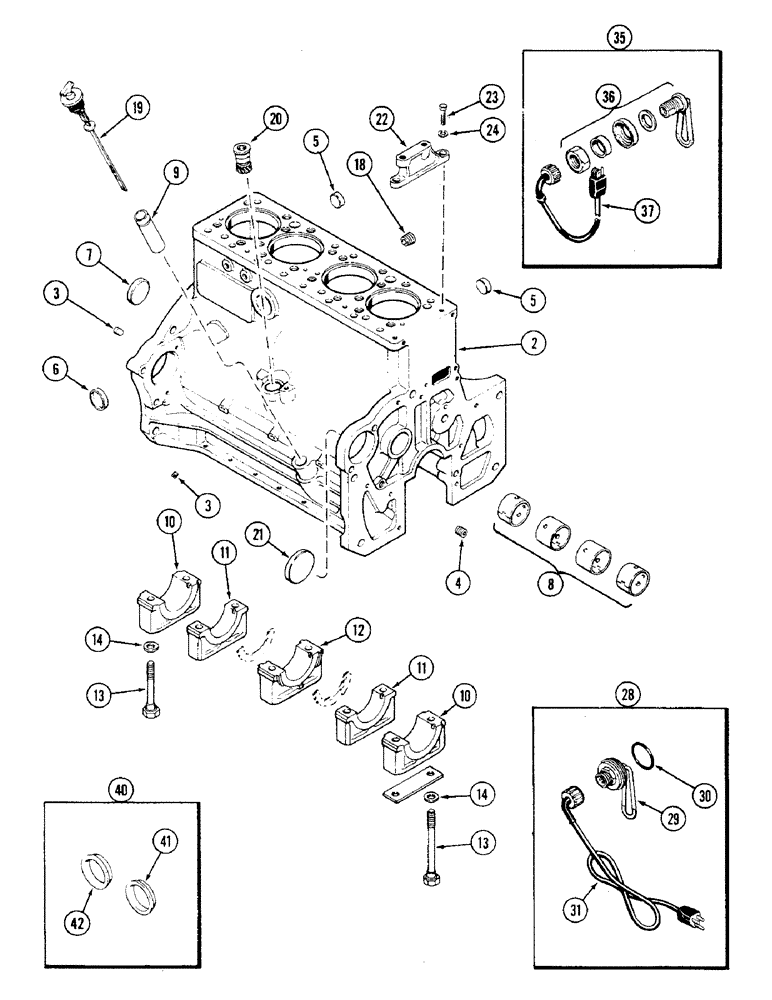

Запчасти Case 475 (018) - CYLINDER BLOCK, 336BD DIESEL ENGINE (10) - ENGINE

A150862

ENGINE ASSEMBLY

BLOCK ASSEMBLY - short (Includes stripped block, camshaft, connecting rods and bearings, piston assembly, camshaft and bearings and timing gears) (Replaces A44056), Includes: Refs. 2-14

1шт.

2

A150863

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting no. A58504) (Replaces A44057), Includes: Refs. 3-14

1шт.

3

221-1849

PLUG

- oil gallery (1/8" PT socket hex head)

4шт.

4

221-1843

PLUG

- oil gallery (3/8" PT hex socket head)

4шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery, 1-3/8" (34.9 MM) cup type

3шт.

6

A58569

PLUG,Cup, 2", Stainless

- heater hole, 2" (50.8 MM) cup type

1шт.

7

A24361

PLUG

- camshaft hole, 2-3/8" (60.3 MM) cup type

1шт.

8

REF

INSTRUCTION

BUSHINGS - camshaft (See Figure 16)

1шт.

9

A34540

TUBE

- oil filler and dipstick

1шт.

10

A154391

CAP

- main bearing, front and rear (Wide) (Replaces A58783)

2шт.

11

A154390

CAP

- main bearing, intermediate (Narrow) (Replaces A58784)

2шт.

12

A154392

CAP

- main bearing, thrust, center (Wide) (Replaces A58785)

1шт.

13

A66948

STEP BOLT

BOLT - bearing caps, special (Replaces A58566)

10шт.

14

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - bearing cap bolt

10шт.

18

221-845

PLUG,Hex Soc, 3/4"-14

- 3/4" PT hex socket head

1шт.

19

A138330

DIPSTICK

- oil level

1шт.

20

A34266

DRIVE

ASSEMBLY - tachometer

1шт.

21

A29268

PLUG

COVER - pump mounting hole, 3-1/2" (88.9 MM) cup type

1шт.

22

A61155

BRACKET

- compressor mounting

1шт.

23

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Bracket to block Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

24

92-8

LOCK WASHER,1/2"

2шт.

28

A44812

HEATER

KIT - block (Order A155436), Includes: Refs. 29-31

1шт.

29

NSS

NOT SOLD SEPARAT

ELEMENT - heater, block

1шт.

30

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- element, block heater

1шт.

31

A44813

CABLE EXTENSION

CORD - heater, 12" (304.8 MM), block

1шт.

35

A155436

RESISTOR

HEATER KIT - engine coolant (Replaces A44812), block, Includes: Refs. 36, 37

1шт.

36

NSS

NOT SOLD SEPARAT

ELEMENT - heater, block

1шт.

37

A44813

CABLE EXTENSION

CORD - heater, 12" (304.8 MM), block

1шт.

40

A44006

SLEEVE

KIT - heater installation, block, Includes: Refs. 41, 42

1шт.

41

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/16" (52.4 MM) diameter hole, block heater

1шт.

42

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/8" (54 MM) diameter hole, block heater

1шт.
