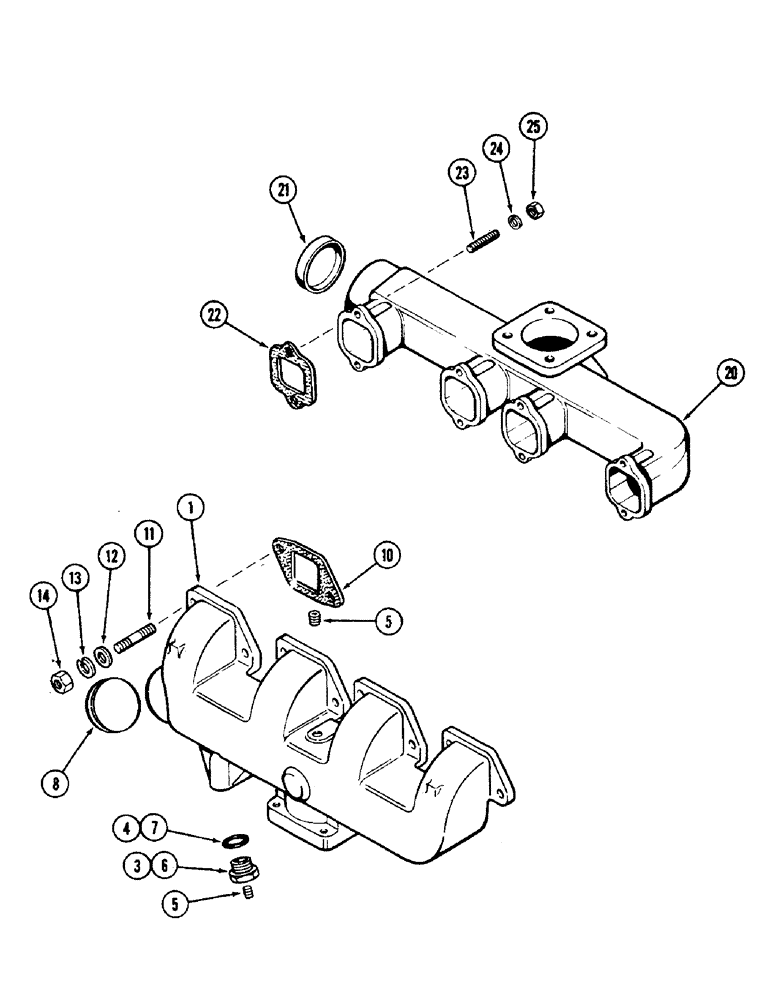

Запчасти Case 475 (010) - MANIFOLDS, 336BD DIESEL ENGINE, INTAKE MANIFOLD (10) - ENGINE

1

A154150

MANIFOLD

ASSEMBLY - intake (Replaces A61003 and A66089), Includes: Refs. 3-5

1шт.

3

L10283

PLUG

- heater hole (1-1/8" thread)

1шт.

4

A20916

MANIFOLD GASKET

GASKET - heater plug

1шт.

5

221-1849

PLUG

- 1/8" PT hex socket head

2шт.

6

A157030

PLUG - heater hole (Used on manifold with 7/8" threaded hole)

1шт.

7

A27968

RING

- heater plug (Used with ref. 6)

1шт.

8

41-1020

PLUG,Cup, 1 1/4"

- 1-1/4" cup type (31.8 MM) (If equipped)

1шт.

10

A58662

MANIFOLD GASKET

- intake manifold

4шт.

11

A59077

STUD

- intake manifold (3/8" NC x 1-13/16")

8шт.

12

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16" (9.5 x 20.6 x 1.6 MM)

8шт.

13

92-6

LOCK WASHER,3/8"

8шт.

14

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" NC hex

8шт.

20

A64966

MANIFOLD

ASSEMBLY - exhaust

1шт.

21

A58750

PLUG,Cup, 3 1/4", Stainless

- 3/4" (19.1 MM) cup type, exhaust manifold

1шт.

22

A58666

MANIFOLD GASKET

- exhaust manifold

4шт.

23

A59077

STUD

- exhaust manifold (3/8" NC x 1-13/16")

8шт.

24

92-6

LOCK WASHER,3/8"

exhaust manifold 3/8"

8шт.

25

131-903

NUT,3/8"-16

NUT - 3/8" NC hex, Seez-Pruf, exhaust manifold

8шт.
