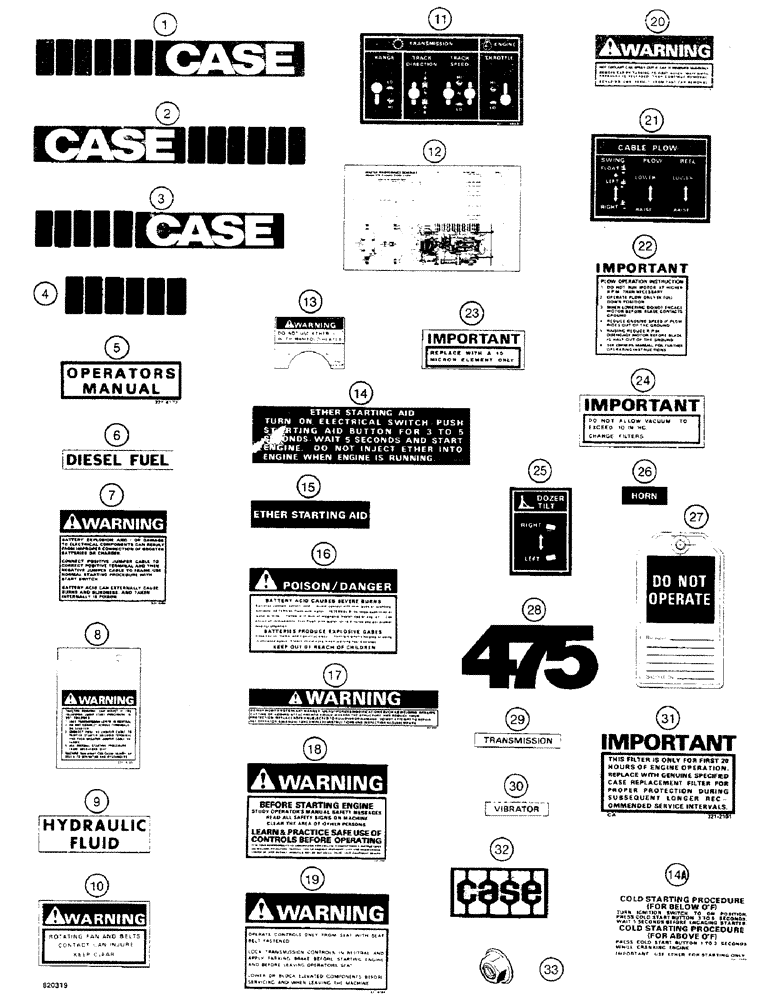

Запчасти Case 475 (300) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

R42952

DECAL

KIT - decal, Includes: Refs. 1-30

1шт.

1

321-5292

DECAL

- 6" (152 MM) Case with 6 treads to the left

1шт.

2

321-5293

DECAL

- 6" (152 MM) Case with 6 treads to the right

1шт.

3

321-5294

DECAL

- 6" (152 MM) Case with 5 treads to the left, used on rear of tractor with 321-3116 treads, ref. 4

1шт.

4

321-3116

DECAL

- 6" (152 MM) treadmarks

1шт.

5

321-4172

DECAL

- operators manual

1шт.

6

321-230

DECAL

- diesel fuel

1шт.

7

321-4190

DECAL

- warning, booster batteries

1шт.

8

321-4189

DECAL

- jump start procedure

1шт.

9

321-229

DECAL

- hydraulic fluid

1шт.

10

321-3596

DECAL

- warning, rotating fan

2шт.

11

321-4653

DECAL

- transmission and engine controls

1шт.

12

321-1991

DECAL

- master maintenance schedule

1шт.

13

321-3040

DECAL

- warning, do not use ether

1шт.

14

321-1841

DECAL

- ether starting aid, instructions, no longer used, order 321-2946, ref. 14A

1шт.

14a

321-2946

DECAL

- cold starting procedure

1шт.

15

321-2435

DECAL

- ether starting aid, label

1шт.

16

321-2996

DECAL

- poison/danger, battery acid

1шт.

17

321-4192

DECAL

- warning, ROPS modification

1шт.

18

321-3705

DECAL

- warning, before starting engine

1шт.

19

321-4188

DECAL

- warning, operate from seat

1шт.

20

321-3708

DECAL

- radiator pressure

1шт.

21

321-4179

DECAL

- cable plow controls

1шт.

22

321-1998

DECAL

- important, plow operation instructions

1шт.

23

321-2385

DECAL

- important, replace with 10 micron element

2шт.

24

321-1997

DECAL

- warning, do not allow vacuum

1шт.

25

321-4180

DECAL

- dozer tilt control

1шт.

26

321-3294

DECAL

- horn

1шт.

27

321-4614

TAG

- do not operate

1шт.

28

321-3118

DECAL

- 475

2шт.

29

321-5698

DECAL

- transmission

2шт.

30

321-5699

DECAL

- vibrator

2шт.

31

321-2101

DECAL

- replacing oil filter

1шт.

32

321-4739

EMBLEM

- Case

1шт.

33

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push on, emblem mounting

2шт.

34

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Used to mount decal ref. 8 to engine, not shown Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

35

195-21

WASHER,5/16"

- flat, , Used to mount decal Ref. 8 to engine, Not shown 5/16"

2шт.
