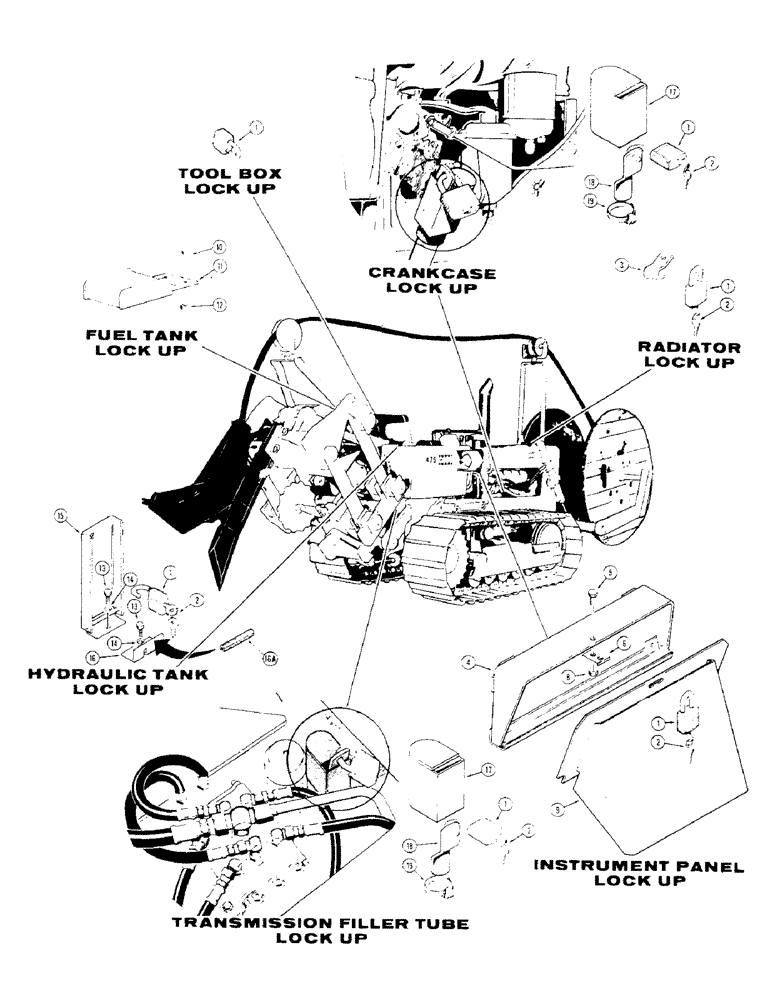

Запчасти Case 475 (296) - LOCKUP PARTS, PADLOCK AND KEY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D40678

LOCK

PADLOCK - Master no. X2138, no longer available, order D93753 padlock and key assembly

6шт.

2

D40679

KEY

- D40678 padlock only, set of two, Master no. X2138

1шт.

1

D93753

PADLOCK

- includes keys, Includes: Refs. 2 (P/N R29555) and 2 (P/N 93751)

6шт.

2

R29555

KEY

- padlock, for Master padlock only

2шт.

2

D93751

SET OF 2 KEYS

KEY - padlock, for Yale padlock only

2шт.

3

D41254

CLIP

- radiator access door, lockup

1шт.

4

D41250

GUARD

SHROUD - instrument panel, lockup

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Instrument panel lockup Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

6

D41251

TAB - lock, instrument panel lockup

1шт.

8

131-351

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16" - 18 NC, instrument panel lockup

1шт.

9

R35493

COVER ASSY

GUARD - instrument panel, lockup

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Fuel panel lockup Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

11

D41224

GUARD

- fuel cap, fuel panel lockup

1шт.

12

131-179

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, fuel panel lockup

2шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Hydraulic reservoir lockup Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

hydraulic reservoir lockup 3/8"

2шт.

15

D41245

GUARD

- hydraulic reservoir, lockup

1шт.

16

NLS

NO LONGER SERVICED

BRACKET - hydraulic reservoir, lockup

1шт.

16a

R38772

RUBBER STRIP

TRIM - bracket, transmission and crankcase lockup

1шт.

17

R42455

CAP

COVER - transmission filler tube and engine crankcase dipstick, lockup

2шт.

18

D41253

STRAP

BRACKET - locking, cover, transmission and crankcase lockup

2шт.

19

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - transmission and crankcase lock

2шт.
