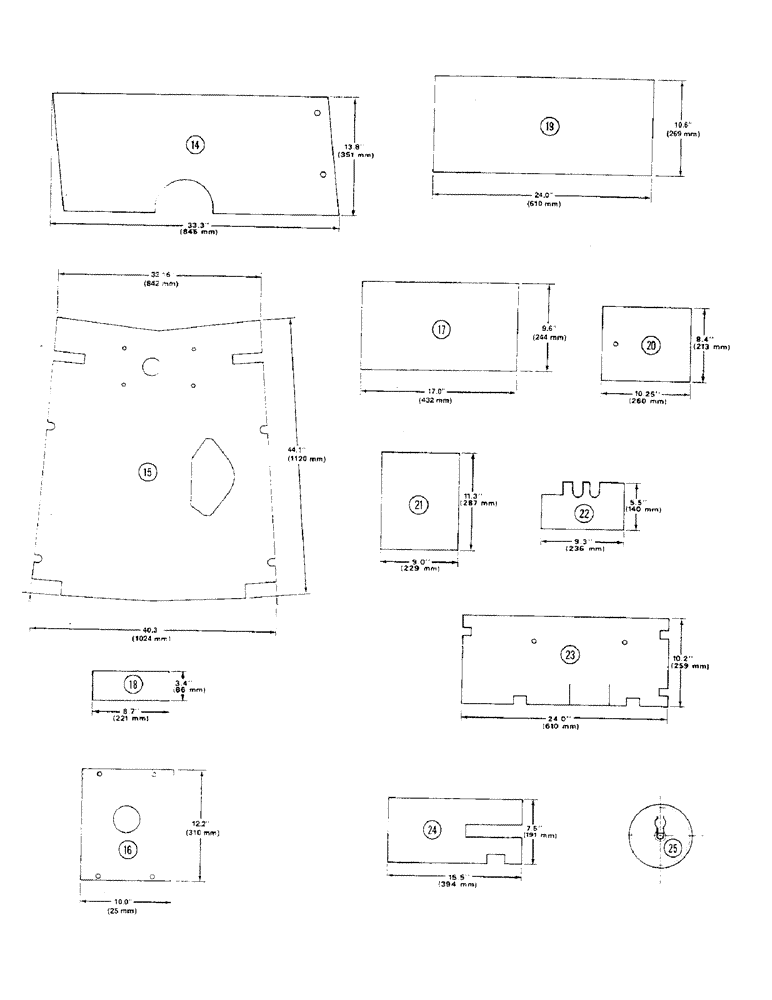

Запчасти Case 475 (294) - NOISE REDUCTION PADS (90) - PLATFORM, CAB, BODYWORK AND DECALS

14

REF

INSTRUCTION

PAD - side shield, upper, used on models with vertical air intake, cut from R30870

2шт.

For noise reduction pads used on models with horizontal air intake, see Figure 292.

1шт.

15

REF

INSTRUCTION

PAD - hood, used on models with vertical air intake, cut from R30870

1шт.

For noise reduction pads used on models with horizontal air intake, see Figure 292.

1шт.

16

REF

INSTRUCTION

PAD - hood, at air intake chamber, cut from R30870

1шт.

17

REF

INSTRUCTION

PAD - air intake chamber, cut from R30870

1шт.

18

REF

INSTRUCTION

PAD - rear wall of air intake chamber, cut from R30870

1шт.

19

REF

INSTRUCTION

PAD - muffler guard, used on models with vertical air intake, cut from R30870

1шт.

For noise reduction pads used on models with horizontal air intake, see Figure 292.

1шт.

20

REF

INSTRUCTION

PAD - hydraulic tank frame, front, below control valve and levers, cut from R30870

1шт.

21

REF

INSTRUCTION

PAD - hydraulic tank frame, rear, lower, behind control valve and levers, cut from R30870

1шт.

22

REF

INSTRUCTION

PAD - hydraulic tank frame, rear, upper, behind control valve and levers

1шт.

23

REF

INSTRUCTION

PAD - hydraulic reservoir frame, top cover, cut from R30870

1шт.

24

REF

INSTRUCTION

PAD - hydraulic reservoir frame, bottom, below control valve and levers, cut from R30870

1шт.

25

R37160

RETAINER

- pads

1шт.

R30870

PAD

- bulk roll, 54" (1372 MM) x 72" (1829 MM) x 1" (25 MM)

1шт.

345-44

ADHESIVE

- spray, for attaching foam pads to metal surfaces, 23 fluid ounces (680 ML)

1шт.
